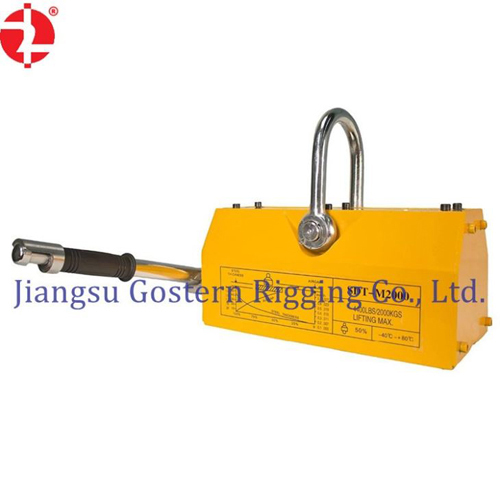

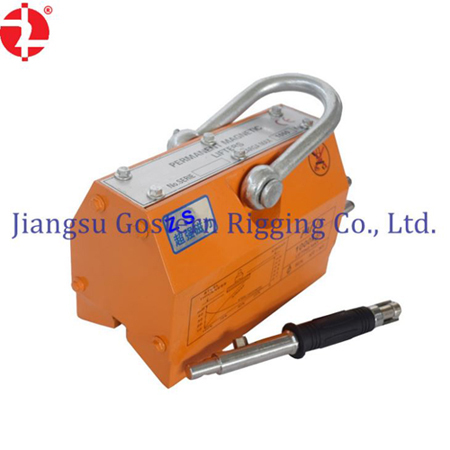

The Super Magnet Automatic Lifting Sucker is a high-tech product developed based on high-energy magnetic materials. Widely used in the transportation and lifting process of steel, machining, mold, warehouse, etc. The connection of block and cylindrical magnetic conductive steel materials can greatly improve the efficiency of loading and unloading and handling of workpieces.
Specification:
Super Magnet Automatic Lifting Sucker

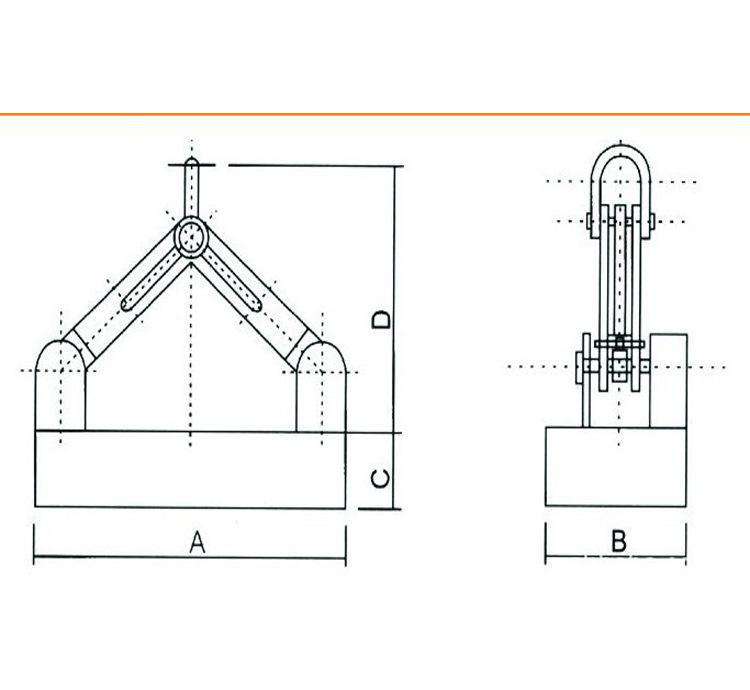

| Model | Rated lifting capacity | Dimensions(mm) | Weight | |||
kg | A | B | h | H | (kg) | |
TC2-1 | 1000 | 550 | 350 | 105 | 578 | 130 |
TC2-2 | 2000 | 625 | 460 | 110 | 670 | 250 |
TC2-3 | 3000 | 680 | 470 | 120 | 806 | 386 |
TC2-5 | 5000 | 970 | 580 | 130 | 1020 | 570 |
TC2-10 | 10000 | 1440 | 800 | 155 | 1440 | 1200 |
TC2-20 | 20000 | 1540 | 900 | 260 | 1560 | 2110 |
TC2-40 | 40000 | 2310 | 1100 | 320 | 2350 | 4600 |
TC2-50 | 50000 | 2410 | 1210 | 320 | 2330 | 5350 |
Permanent magnet features:
1. Don’t need to use electricity, there is no danger
2. Using the latest high-energy permanent magnetic materials to make the product smaller
3. The product has a safety factor of up to 1:3 for rated gravity
4. Optimized magnetic circuit design and appearance make the product structure simple and firm
Certificate
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
The Super Magnet Automatic Lifting Sucker is a high-tech product developed based on high-energy magnetic materials. Widely used in the transportation and lifting process of steel, machining, mold, warehouse, etc. The connection of block and cylindrical magnetic conductive steel materials can greatly improve the efficiency of loading and unloading and handling of workpieces.
Specification:
Super Magnet Automatic Lifting Sucker
| Model | Rated lifting capacity | Dimensions(mm) | Weight | |||
kg | A | B | h | H | (kg) | |
TC2-1 | 1000 | 550 | 350 | 105 | 578 | 130 |
TC2-2 | 2000 | 625 | 460 | 110 | 670 | 250 |
TC2-3 | 3000 | 680 | 470 | 120 | 806 | 386 |
TC2-5 | 5000 | 970 | 580 | 130 | 1020 | 570 |
TC2-10 | 10000 | 1440 | 800 | 155 | 1440 | 1200 |
TC2-20 | 20000 | 1540 | 900 | 260 | 1560 | 2110 |
TC2-40 | 40000 | 2310 | 1100 | 320 | 2350 | 4600 |
TC2-50 | 50000 | 2410 | 1210 | 320 | 2330 | 5350 |
Permanent magnet features:
1. Don’t need to use electricity, there is no danger
2. Using the latest high-energy permanent magnetic materials to make the product smaller
3. The product has a safety factor of up to 1:3 for rated gravity
4. Optimized magnetic circuit design and appearance make the product structure simple and firm
