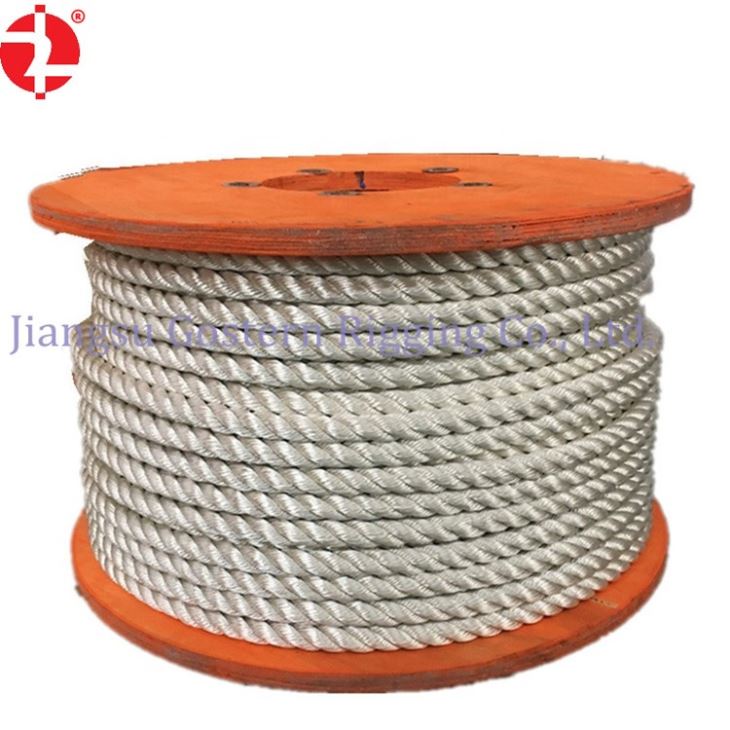

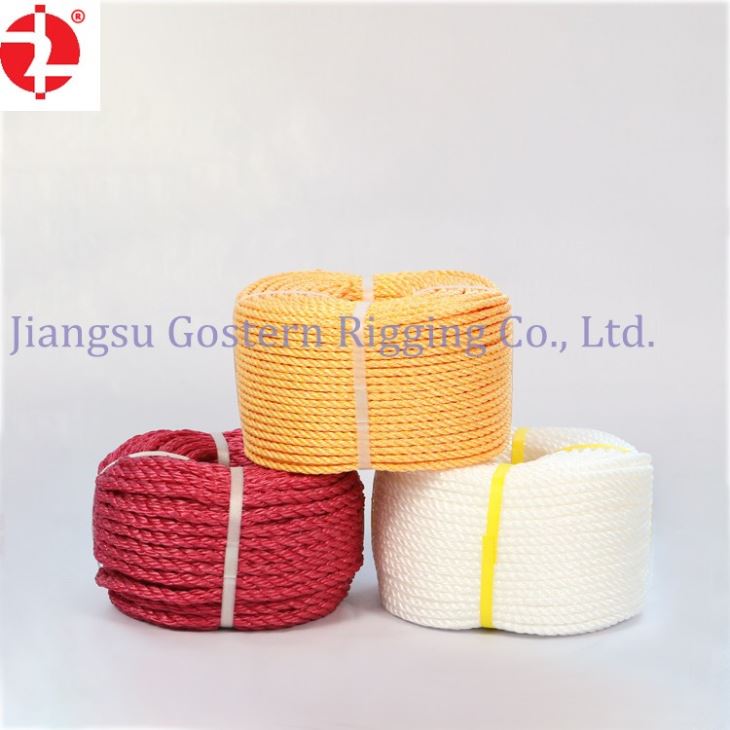

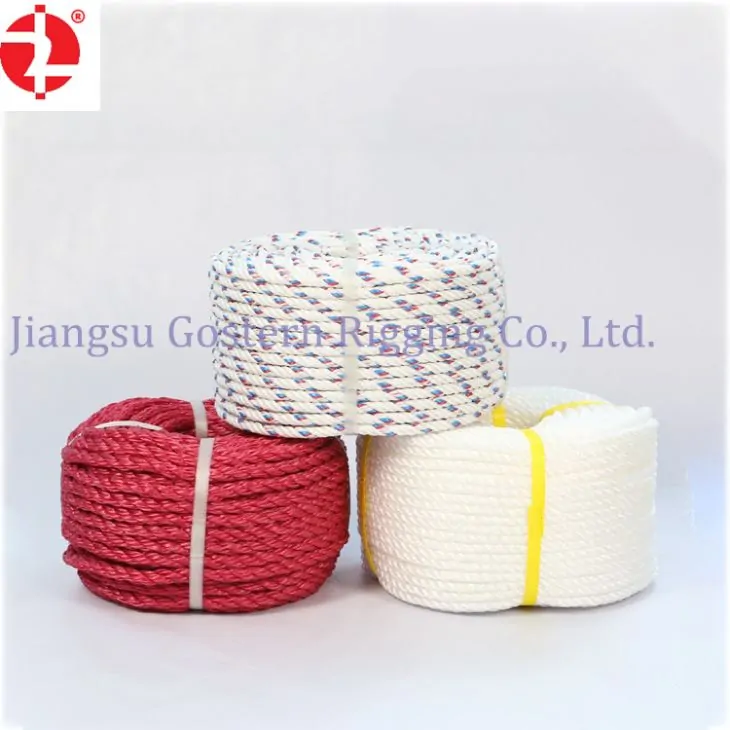

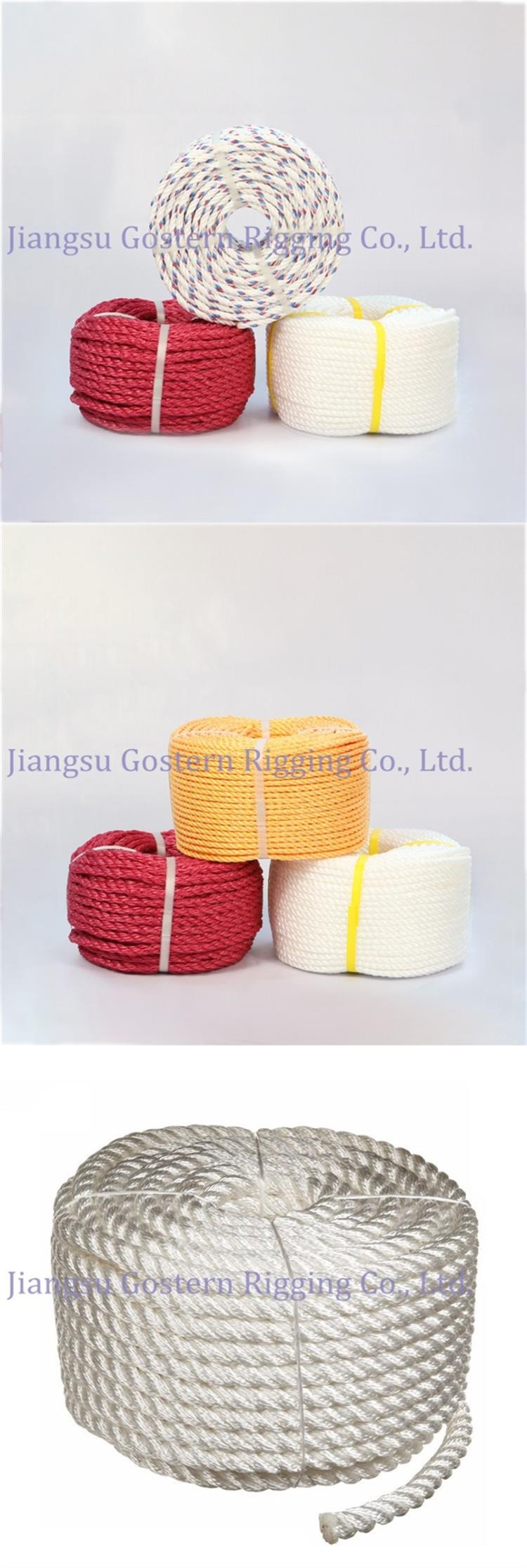

3 strands nylon twisted rope has advantages of reasonable braided structure, scientific technology, high strength, low elongation, wearing resistance, anti-corrosion and simple operation, it is particularly suitable to make large-scale ropes and cable as well as anti-static ropes, therefore, they are well received by broad customers.
Specification
3 strands braided rope (1Kten=1g/m 1kg=9.8N=0.98daN)
Spec | Polyamide Fiber | Polyamide | Polypropylene Filament | Polypropylene | Polyester | PP/PES | |||||||
Dia | Cir | Linear density | Breaking strength | Linear density | Breaking strength | Linear density | Breaking strength | Linear density | Breaking strength | Linear density | Breaking strength | Linear density | Breaking strength |
mm | inch | Ktex | daN | Ktex | daN | Ktex | daN | Ktex | daN | Ktex | daN | Ktex | daN |
4 | ½ | 11 | 340 | 10 | 280 | 7 | 265 | 6 | 214 | 11 | 306 | 8.8 | 300 |
6 | ¾ | 27 | 790 | 26 | 655 | 18 | 610 | 17 | 601 | 27 | 630 | 22.5 | 620 |
8 | 1 | 40 | 1420 | 39 | 1175 | 32 | 1120 | 30 | 1060 | 48 | 1150 | 40 | 1140 |
10 | 1¼ | 62 | 2200 | 60 | 1820 | 50 | 1650 | 48 | 1560 | 76 | 1673 | 62.5 | 1580 |
12 | 1½ | 89 | 3170 | 87 | 2630 | 73 | 2360 | 70 | 2210 | 110 | 2400 | 91 | 2360 |
14 | 1¾ | 122 | 4340 | 119 | 3590 | 100 | 3280 | 95 | 3050 | 148 | 3350 | 125 | 3180 |
16 | 2 | 158 | 5600 | 155 | 4650 | 132 | 4220 | 127 | 3770 | 195 | 4280 | 165 | 4250 |
20 | 2¼ | 245 | 8720 | 240 | 7020 | 205 | 6480 | 195 | 5800 | 303 | 6630 | 256 | 6500 |
22 | 2¾ | 300 | 10500 | 294 | 8460 | 245 | 7850 | 236 | 6900 | 376 | 7960 | 306 | 7300 |
24 | 3 | 355 | 12650 | 347 | 10200 | 290 | 9180 | 281 | 8130 | 437 | 9580 | 362 | 8620 |
28 | 3½ | 485 | 16630 | 480 | 13300 | 395 | 11930 | 386 | 10710 | 594 | 13500 | 494 | 13100 |
32 | 4 | 636 | 21000 | 630 | 16000 | 522 | 14200 | 500 | 13600 | 778 | 16520 | 653 | 15620 |
36 | 4½ | 820 | 26100 | 800 | 19900 | 660 | 17850 | 640 | 16900 | 982 | 20300 | 825 | 19640 |
40 | 5 | 1000 | 31400 | 990 | 2400 | 818 | 21500 | 780 | 20500 | 1215 | 25200 | 1022 | 23600 |
44 | 5½ | 1210 | 37640 | 1200 | 28800 | 977 | 25900 | 932 | 24700 | 1468 | 29900 | 1221 | 28500 |
48 | 6 | 1450 | 44200 | 1420 | 33800 | 1159 | 30090 | 1114 | 29600 | 1750 | 35200 | 1448 | 33000 |
52 | 6½ | 1680 | 51300 | 1660 | 39200 | 1350 | 34680 | 1295 | 33150 | 2050 | 41100 | 1688 | 38000 |
56 | 7 | 1930 | 57120 | 1890 | 43680 | 1491 | 38900 | 1432 | 37840 | 2380 | 47010 | 1863 | 44700 |
Advantages
1. Lightweight, high strength, easy and fast operation.
2. The twisted nylon rope has an anti-twist structure, low extension, fast and safe operation.
3. Withstand voltage insulation.
4. Anti-wear and damage resistance, soft and smooth, easy to operate.
5. The 3 strands nylon twisted rope are mainly used in various fields of ships and vessels, fishing, power supply construction, petroleum survey, physical exercise wares, national defense science, and research, etc.

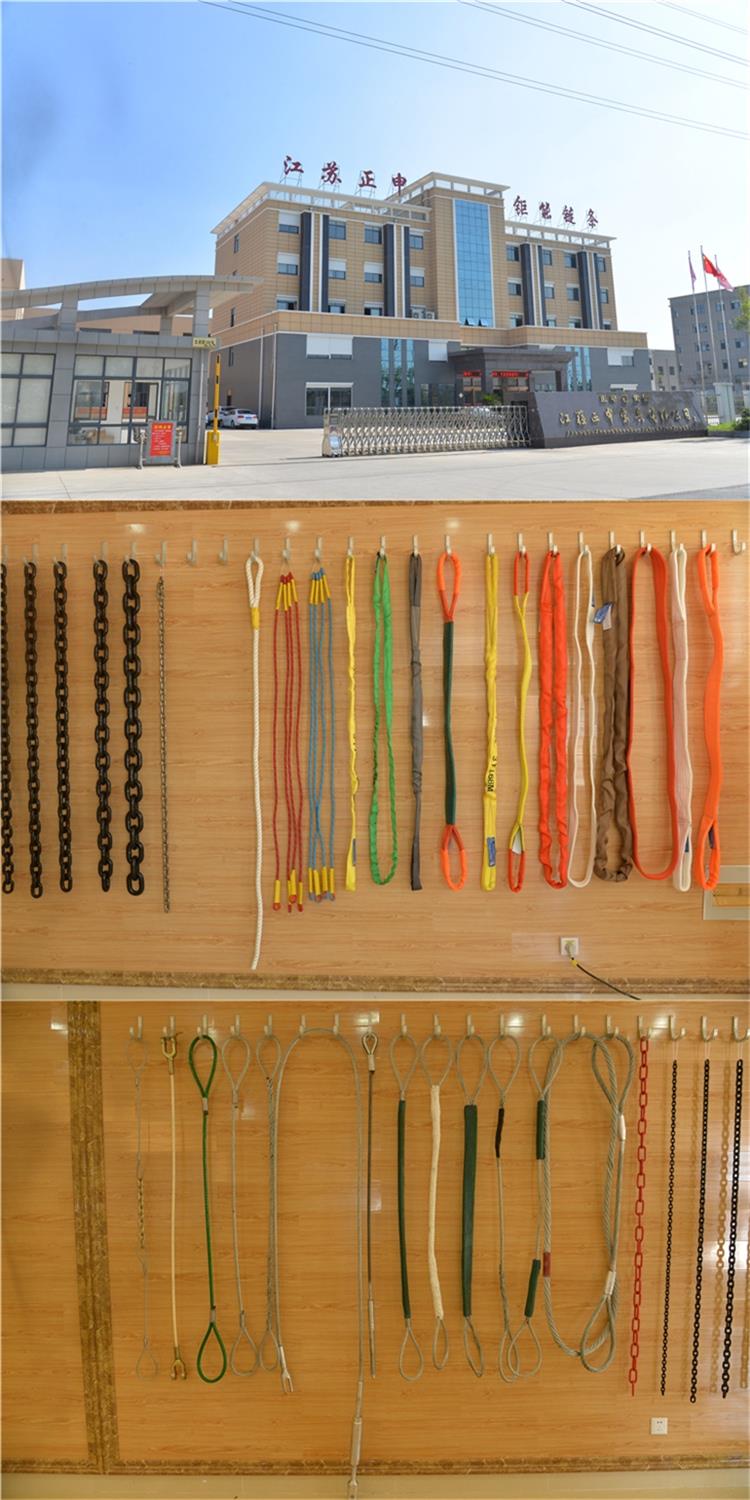

Factory
Jiangsu Gostern Rigging Co., Ltd. is a professional manufacturer integrating research, development, and production. The main products are various types of steel wire ropes, wire rope slings, polyester rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. Our products are widely used in metallurgy, machinery, railway, petrochemical, port, electricity, automotive, aviation, construction, and other fields.
Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept. We are looking forward to your arrival
Certificates
Contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
