The tow strap is a soft hoisting product, which uses non-metal raw materials. In the hoisting industry, it belongs to the replacement of steel wire rope and chain. Relatively lighter than similar metal chains. It can solve the problem of large tonnage and small lifting space in the actual lifting process.
Classification of tow straps

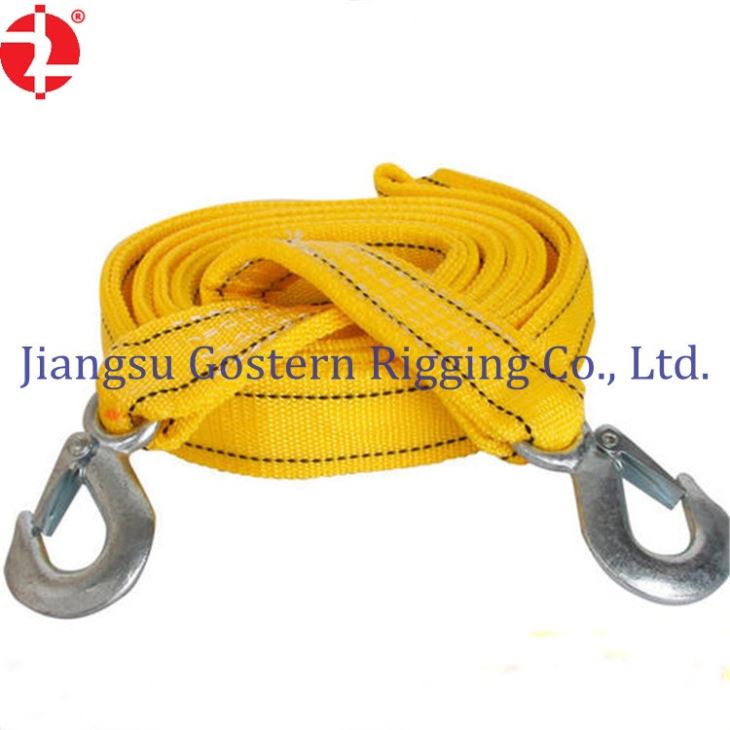

1. Tow strap with two hooks
Art. No. | Breaking load（kg） | Approximate thickness（mm） | Approximate width（mm） | Overall length（m） | Set weight（kg） |
ZS0105SG-1.0 | 1000 | 2 | 45 | 4 | 0.59 |
ZS0105SG-1.5 | 1500 | 2 | 50 | 4 | 0.67 |
ZS0105SG-2.0 | 2000 | 3 | 50 | 4 | 0.74 |
ZS0105SG-3.0 | 3000 | 4 | 50 | 4 | 0.85 |
2.Tow strap with sewn eye
Art. No. | Breaking load（kg） | Approximate thickness（mm） | Approximate width（mm） | Overall length（m） | Set weight（kg） |
ZS0105SH-1.0 | 1000 | 2 | 45 | 4 | 0.25 |
ZS0105SH-1.5 | 1500 | 2 | 50 | 4 | 0.35 |
ZS0105SH-2.0 | 2000 | 3 | 50 | 4 | 0.39 |
ZS0105SH-3.0 | 3000 | 4 | 50 | 4 | 0.48 |
2. Tow strap with a single hook and sewn eye
Art. No. | Breaking load(kg) | Approximate thickness(mm) | Approximate Width(mm) | Overall length(m) | Set weight(kg) |
ZS0105DG-1.0 | 1000 | 2 | 45 | 4 | 0.42 |
ZS0105DG-1.5 | 1500 | 2 | 50 | 4 | 0.51 |
ZS0105DG-2.0 | 2000 | 3 | 50 | 4 | 0.55 |
ZS0105DG-3.0 | 3000 | 2 | 45 | 4 | 0.66 |
Advantages
1. The tow strap is light, long in service life, good in shock absorption performance.
2. Non-conductive, non-corrosive.
3. Protects the suspended items from being scratched.
4. Multiple fracture experiments have shown that the reverse damage produced by the tow strap relative to the metal chain is almost zero.
5. The tow strap adopts the international standard color to distinguish the bearing tonnage. During the use, the label on the traction belt is worn, and the weight of the bearing can be recognized by the color of the tow strap.
