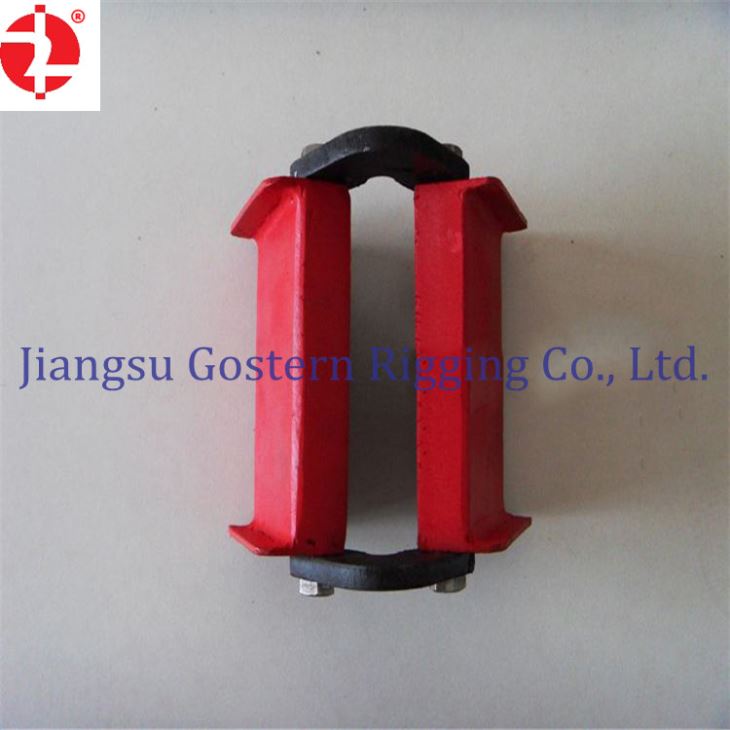

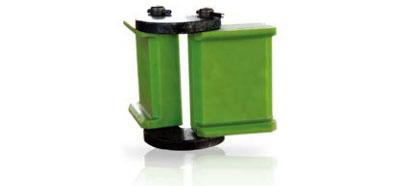

To protect the webbing sling in case of sharp objects.
Scope: Load of 1T-40T, Belt width of 40-170mm.
No deformation after test in case of 2 times load.
Specification:
Width | WLL | A | B | C | Weight |
mm | T | mm | mm | mm | kg |
40 | 1 | 50 | 30 | 60 | 0.51 |
50 | 2 | 60 | 33 | 65 | 0.7 |
60 | 3 | 70 | 38 | 70 | 1.02 |
70 | 5 | 80 | 40 | 75 | 1.28 |
90 | 8 | 110 | 46 | 90 | 1.75 |
100 | 10 | 110 | 49 | 100 | 2.4 |
115 | 12 | 125 | 55 | 110 | 3.2 |
140 | 15 | 150 | 63 | 130 | 4.9 |
170 | 20 | 180 | 66 | 140 | 6.7 |
170 | 30 | 180 | 77 | 160 | 9.3 |
170 | 40 | 180 | 80 | 170 | 10.4 |
Our Services
1. Recommend the most suitable for the customer, or design according to customer's demand.
2. Strictly control each production link, to ensure the quality.
