Introduction of the product
100% high tenacity polyester of out sleeve and inner core;
2. With two ply woven heavy duty out sleeve;
3. Low elongation
4. Each stripe is equal to 1 ton capacity
5. Safety factor available: 5:1, 6:1, 7:1
6. Capcity from 1ton to 10ton
7. Length available: 1m to 10m
8. according to EN1492-1
9. Certificate: GS. CE.
10. Packing: PE shrink wrapped, carton and pallet
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
About Us
Jiangsu Gostern Rigging Co., Ltd. is a professional manufacturer integrating research, development and production which specialize in rigging products for more than 18 years.

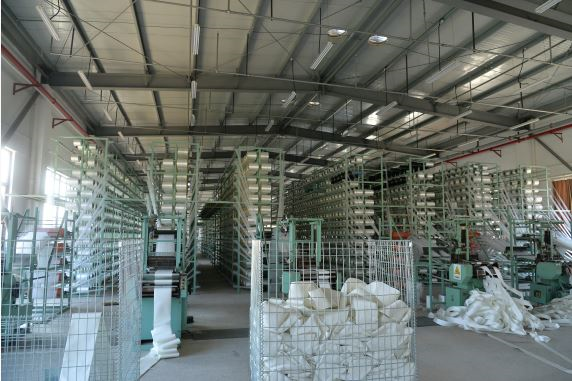

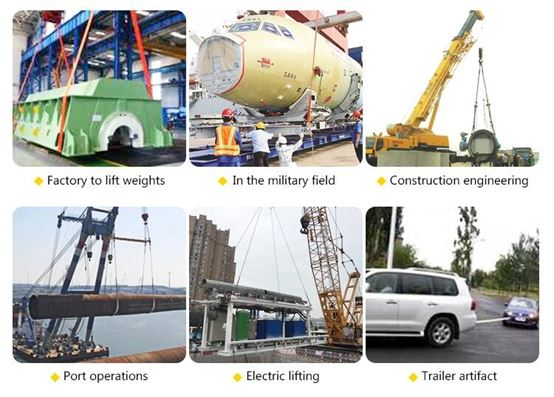

And we have four big workshops, webbing slings workshop, steel wire ropes workshop, lifting structures workshop, lifting chains workshop. Our products are widely used in metallurgy, machinery, railway, petrochemical, port, electricity, automotive, aviation, construction and other fields.
Packaging and delivery
Carton and pallet packaging is recommended for most products, we will calculate the most economical and reasonable packaging method for you. And custom designs are acceptable.
Product feature and Application
Material | High strength polyester (100%PES) |
Type | Round sling |
Body Diameter | Measure the core polyester yarn |
Length | from 0.5m to 80m up, can be customized as required |
W.L.L. | From 0.5 Ton to 1000 Ton |
Safety Factor | 4:1,5:1,6:1,7:1,8:1 |
Color | According to EN standard or as required |
Standard | ISO4878, EN1492-2-2000, JB/T8521. |
Sample Delivery Time | Within 7 days |
OEM&ODM | OK |

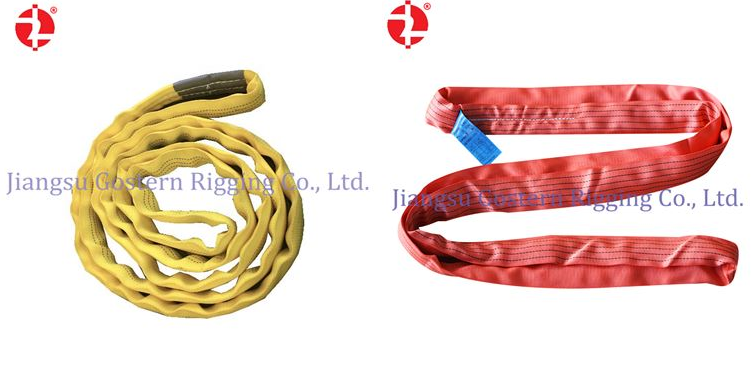

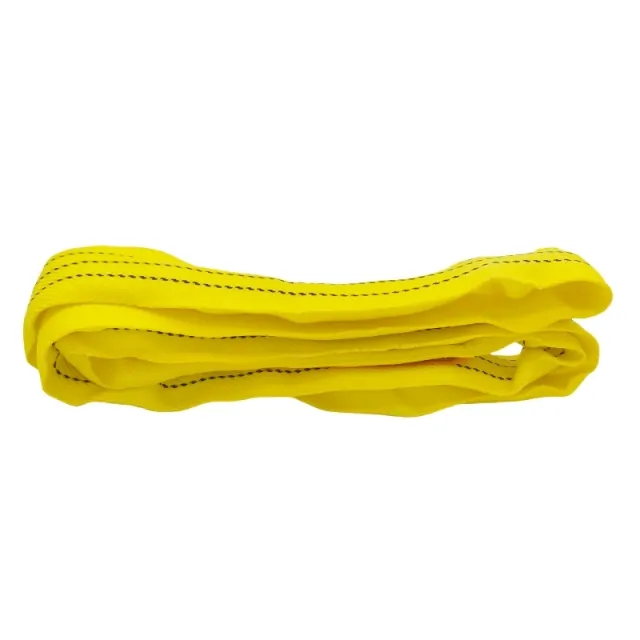

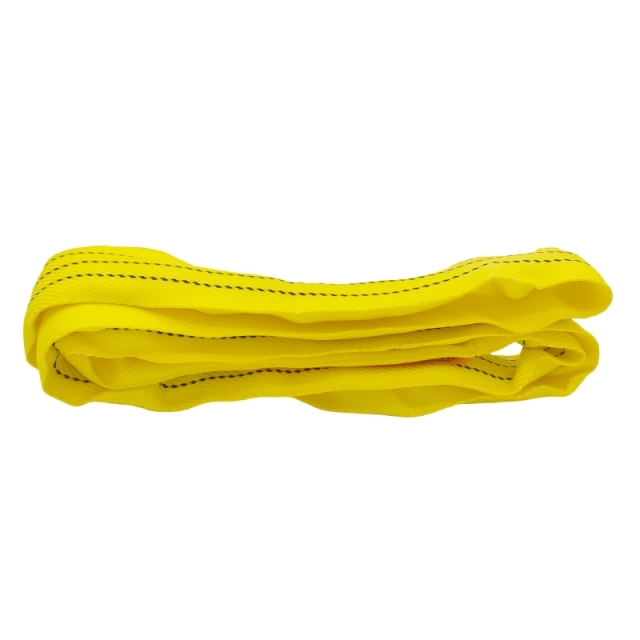

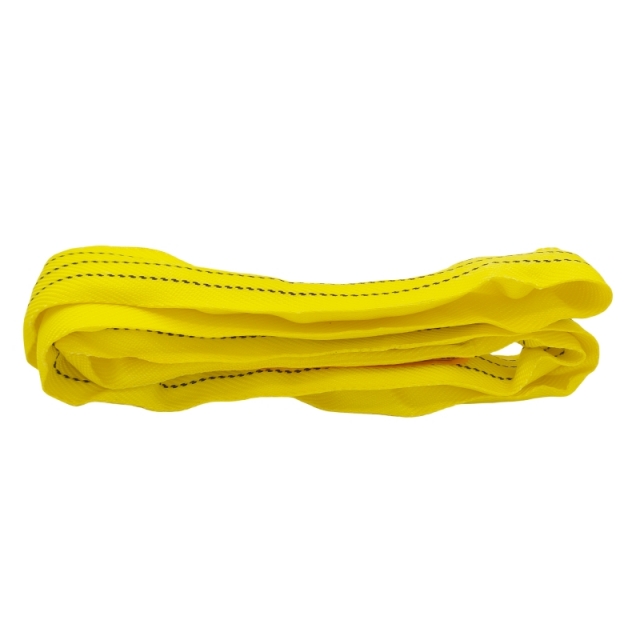

Round sling is a continuous loop made from polyester yarn encased in a sleeve of polyester or Nylon fabric. The sleeve is so constructed that it protects the internal rows of yarn filament and keeps them in a parallel formation at all times. The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against damage and reduces slipping. The low stretch characteristics of the polyester yarn also prevent 'load bounce' when hoisting very heavy weights. Manufactured to EN 1492-2, JB/T8521.2, AS4497.1 conforming to the CE GS.
The yarn fibre core is free to spread out into a flat shape where the Round sling is in contact with its load. This provides a broad support, which cushions the load against dam- age and reduces slipping. The low stretch characteristics of the polyester yarn also prevent load bounce' when hoisting very heavy weights
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling. 9,Working temperature range: -40ºC-100ºC
Product qualification
We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.
