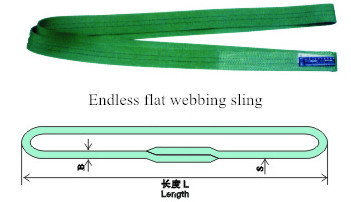

The endless flat webbing sling produced by our factory are light and convenient to use. It will not damage the surface of the suspended object, and the lifting is stable, safe and high strength. The tonnage can be judged according to the color, can also improved the labor efficiency, saved the cost, the flat webbing slings are also corrosion resistant, have good wear resistance and wide application.
Specifications
Standard: ISO4878, EN1492-1
Material: High strength polyester (100%PES), nylon, polypropylene
Safety factor available: 5:1, 6:1, 7:1
Application range: color code or other requirements
Length: different lengths are available
Safe working load: 1-50T
Temperature range: - 40 °C - 100 °C
Type: single layer, double layers, three layers, four layers (special specifications can be customized)
Art. No. | WLL | Width (mm) | Min Length | Max Length | |
(kg) | 5:1 6:1 | 7:1 | (m) | (m) | |
ZS0102H-1 | 1000 | 25 | 30 | 0.5 | 100 |
ZS0102H-2 | 2000 | 50 | 60 | 1 | 100 |
ZS0102H-3 | 3000 | 75 | 90 | 1 | 100 |
ZS0102H-4 | 4000 | 100 | 120 | 1.5 | 100 |
ZS0102H-5 | 5000 | 125 | 150 | 1.5 | 100 |
ZS0102H-6 | 6000 | 150 | 150 | 1.5 | 100 |
ZS0102H-8 | 8000 | 200 | 200 | 2.0 | 100 |
ZS0102H-10 | 10000 | 250 | 250 | 2.0 | 100 |
ZS0102H-12 | 12000 | 300 | 300 | 2.0 | 100 |
Advantages
1. Anti-abrasion and anti-incision protection sleeve can be attached.
2. Has special label, working load is differentiated by colors according to international standard.
3. Easy to identify even if the sling has been abrased.
4. Light and soft can be used in small narrow spaces.
5. Made of the high strength polyester
6. Low elongation
