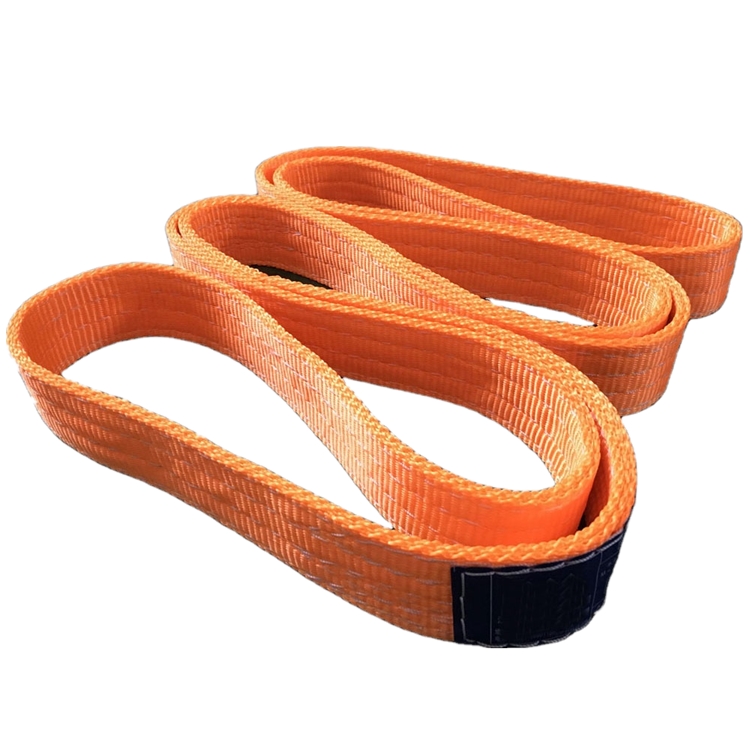

The endless flat webbing sling produced by our factory is light and convenient to use. It will not damage the surface of the suspended object, and the lifting is stable, safe and high strength. The tonnage can be judged according to the color, can also improve the labor efficiency, saving the cost, the flat webbing slings are also corrosion-resistant, have good wear resistance and wide application.
Specifications
Standard: ISO4878, EN1492-1
Material: High strength polyester (100%PES), nylon, Dyneema
Safety factor available: 6:1~8:1
Application range: color code or other requirements
Length: different lengths are available
Safe working load: 0.5-500T
Temperature range: - 40 °C - 100 °C
Type: Single layer, double layers, three layers, four layers (special specifications can be customized)
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0102H-1 | 1000 | 4 | 25 | 0.5 | 100 | 0.18 |
ZS0102H-2 | 2000 | 4 | 50 | 1 | 100 | 0.39 |
ZS0102H-3 | 3000 | 4 | 75 | 1 | 100 | 0.73 |
ZS0102H-4 | 4000 | 4 | 100 | 1.5 | 100 | 0.84 |
ZS0102H-5 | 5000 | 4 | 125 | 1.5 | 100 | 0.96 |
ZS0102H-6 | 6000 | 4 | 150 | 1.5 | 100 | 1.12 |
ZS0102H-8 | 8000 | 4 | 200 | 2 | 100 | 1.65 |
ZS0102H-10 | 10000 | 4 | 250 | 2 | 100 | 1.84 |
ZS0102H-12 | 12000 | 4 | 300 | 2 | 100 | 2.06 |
Advantages
1. Anti-abrasion and anti-incision protection sleeve can be attached.
2. Has a special label, working load is differentiated by colors according to international standard.
3. Easy to identify even if the sling has been abrased.
4. Light and soft can be used in small narrow spaces.
5. Made of the high tenacity polyester material
6. Low elongation
7. Reinforced eye on both ends allow easy hook up to any vehicle/machine
Factory
Jiangsu Gostern Rigging Co., Ltd. is a professional manufacturer integrating research, development, and production. The main products are various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. Our products are widely used in metallurgy, machinery, railway, petrochemical, port, electricity, automotive, aviation, construction, and other fields.
Certificates
Contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
