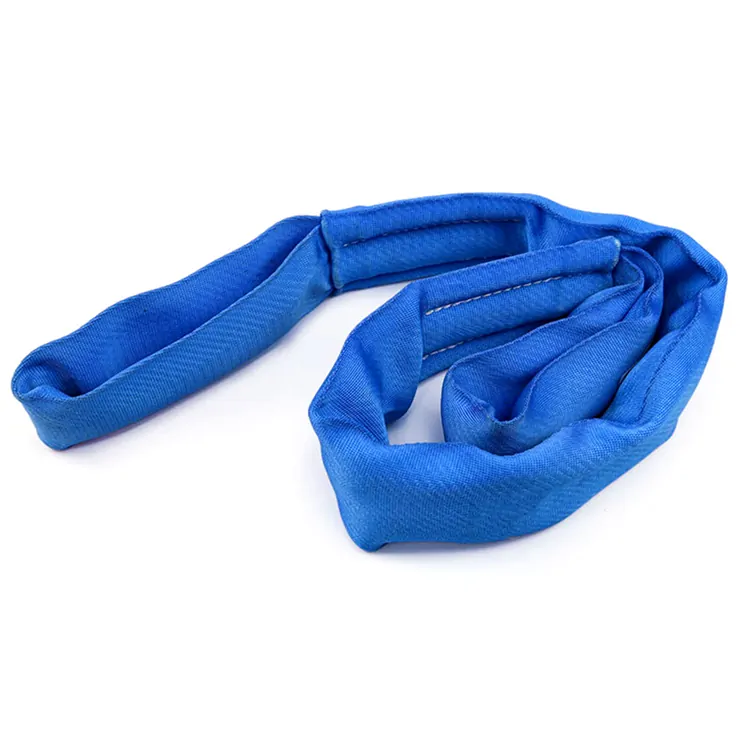

Product parameters:
Standard: EN1492-2, JB/T8521
The products comply with CE and GS safety requirements
Material: High-strength polyester (100%PES)
Safety factor: 6:1, 7:1
Length: 1m-80m
Width: 100mm
Thickness: 28mm
Color: blue
Working load: 8000kg
Elongation: ultimate working elongation <2% Breaking elongation <12%
Temperature range: - 40°C - 100 °C
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |
ZS0101K-80 | 80000 | 138 | 300 | 4 | 80 | 22 |
ZS0101K-100 | 100000 | 152 | 320 | 4 | 80 | 27 |
ZS0101K-200 | 200000 | 230 | 460 | 5 | 80 | 66 |
ZS0101K-300 | 300000 | 310 | 535 | 5 | 80 | 82 |
ZS0101K-400 | 400000 | 380 | 680 | 5 | 80 | 98 |
ZS0101K-500 | 500000 | 410 | 760 | 8 | 80 | 116 |
ZS0101K-600 | 600000 | 460 | 830 | 8 | 80 | 139 |
ZS0101K-700 | 700000 | 498 | 880 | 8 | 80 | 155 |
ZS0101K-800 | 800000 | 520 | 940 | 9 | 80 | 178 |
ZS0101K-900 | 900000 | 580 | 1000 | 9 | 80 | 202 |
ZS0101K-1000 | 1000000 | 610 | 1060 | 9 | 80 | 226 |
Product features:
1. Each round sling attaches an ID label, which bears all relevant information (including sling length, lifting capacity, date of manufacture, etc.)
2. Different color codes are used to indicate the limits of lifting round slings.
3. The soft round slings are low weight and high nominal load (up to 1000 tons)
4. The soft round slings can be applied to a variety of lifting conditions
5. The soft round slings will not conduct electricity, so there is no risk of electric shock
6. The soft round slings are light and soft, easy to use in a small space.
Product frecautions:
Please avoid using in acid or alkli environment
When lifting goods with sharp corners, edges, or rough surfaces, should use the round sling protector to avoid cuts.
Never use round slings with damages or defects.
Please check the WLL, length, and working position before using.
