Product introduction
Webbing sling are available in a range of materials and sizes in single leg and endless sling forms. Select the sling to be used and plan the lift taking the following into account: Material - polyester identified by a blue label is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) identified by a green label is virtually immune to alkalis but is damaged by acids; and polypropylene identified by a brown label is little affected by acids or alkalis but is damaged by some solvents, tars and paints and therefore, suitable for appliances where the highest resistance to chemicals other then solvents is required.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. For flat woven slings made to BS EN 1492-1:2000 + A1: 2008.
Product specification
With two eyes at both ends
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |
ZS0101K-80 | 80000 | 138 | 300 | 4 | 80 | 22 |

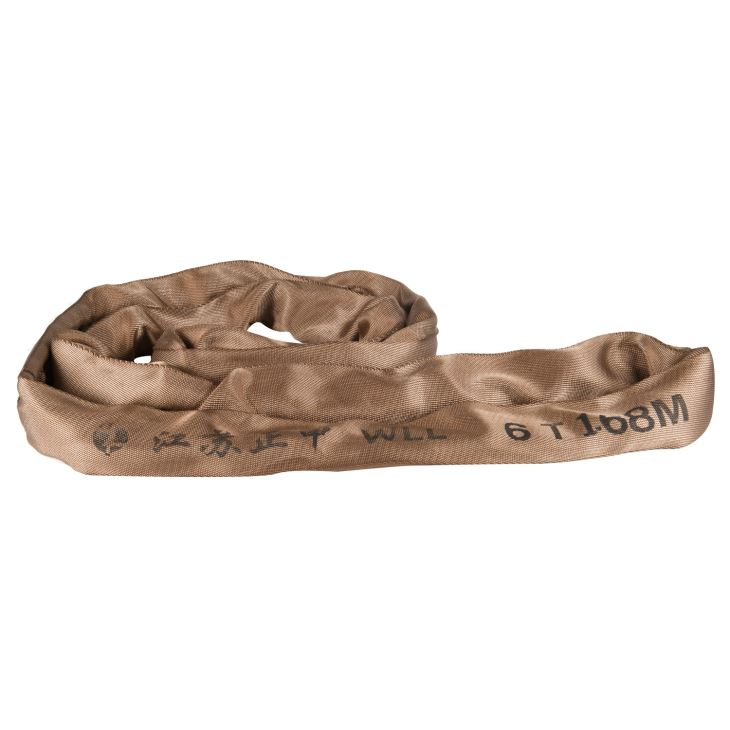

Endless sling
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0102H-1 | 1000 | 4 | 25 | 0.5 | 100 | 0.18 |
ZS0102H-2 | 2000 | 4 | 50 | 1 | 100 | 0.39 |
ZS0102H-3 | 3000 | 4 | 75 | 1 | 100 | 0.73 |
ZS0102H-4 | 4000 | 4 | 100 | 1.5 | 100 | 0.84 |
ZS0102H-5 | 5000 | 4 | 125 | 1.5 | 100 | 0.96 |
ZS0102H-6 | 6000 | 4 | 150 | 1.5 | 100 | 1.12 |
ZS0102H-8 | 8000 | 4 | 200 | 2 | 100 | 1.65 |
ZS0102H-10 | 10000 | 4 | 250 | 2 | 100 | 1.84 |
ZS0102H-12 | 12000 | 4 | 300 | 2 | 100 | 2.06 |
Product feature and application
Ranges vary in a chemical environment, in which case the advice of the manufacturer or supplier should be sought.. If the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely select a sling fitted with protective sleeves and/or use suitable packing. Slings with grade 8 fittings and multi-leg slings with grade 8 master links should not be used in acidic conditions.
The unique advantages of webbing sling:
1. Especially suitable for loading round object.
2. The surface of round sling is smooth, does not cause damages to tender objects loaded.
3. Various loading methods, including dragging or pulling loaded object.
4. Various loading methods and load is bear evenlyenable the sling's usage life last longer.
5. High strength/weight ratio.
6. Anti-abrasion and anti-incision protection sleeve can be attached.
7. Has special lable, working load is differentiated by colors according to international standard. 8. Light and soft, can be used in small narrow space.
9. Non-electric conductive, no danger od eletric stroke.
10. Customized producing: we professionally make products according to your special requirements

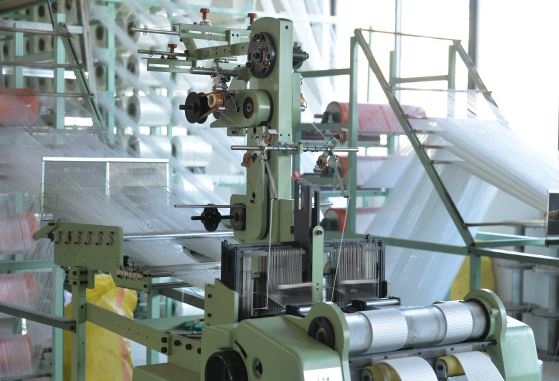

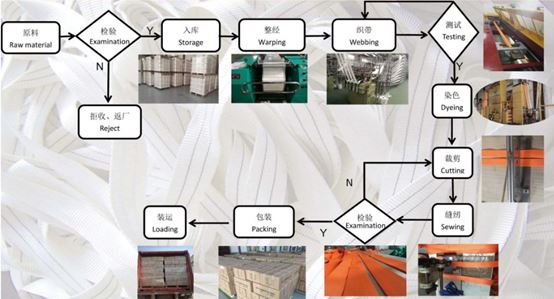

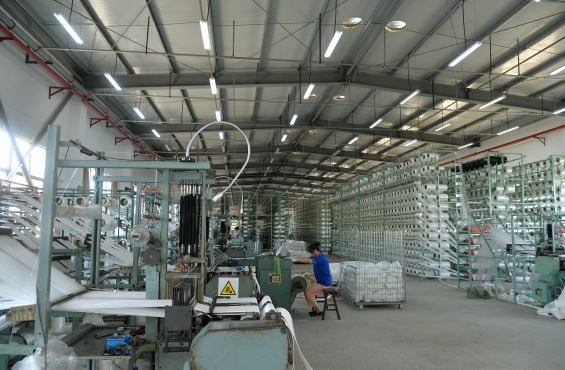

Production and package
FAQ
1. Q: How to place an order?
A: After we firm up all details, You'll get a PI with product info and our bank account on it, and the production starts after the deposit arrives.
2. Q: Is your product customized?
A: Yes, because of the different working conditions, all our products are customized depending on detail requirements!
3. Q: Lead time?
A: depending on your qty .
4. Q: What's the information should I provide when inquiry?
A: The more detailed information you provide, the faster we can prepare for you the accurate solution.
The information such as the lifting capacity, length, safety factor, or other specials you give us will be more appreciated.
