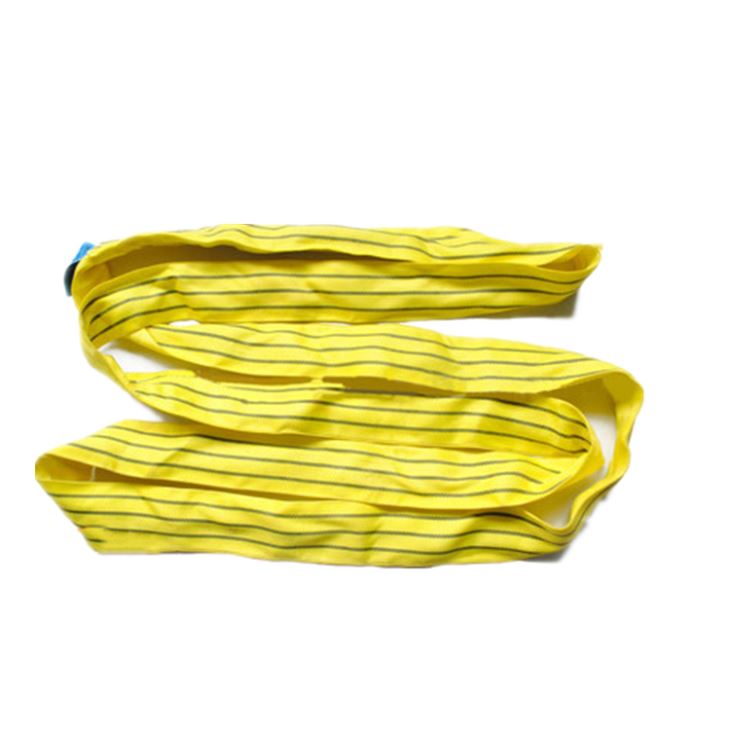

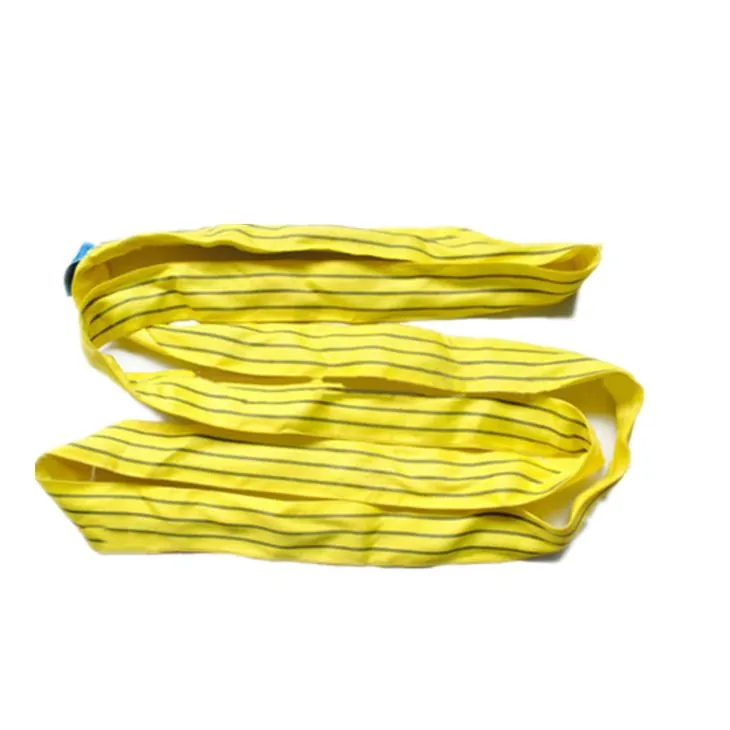

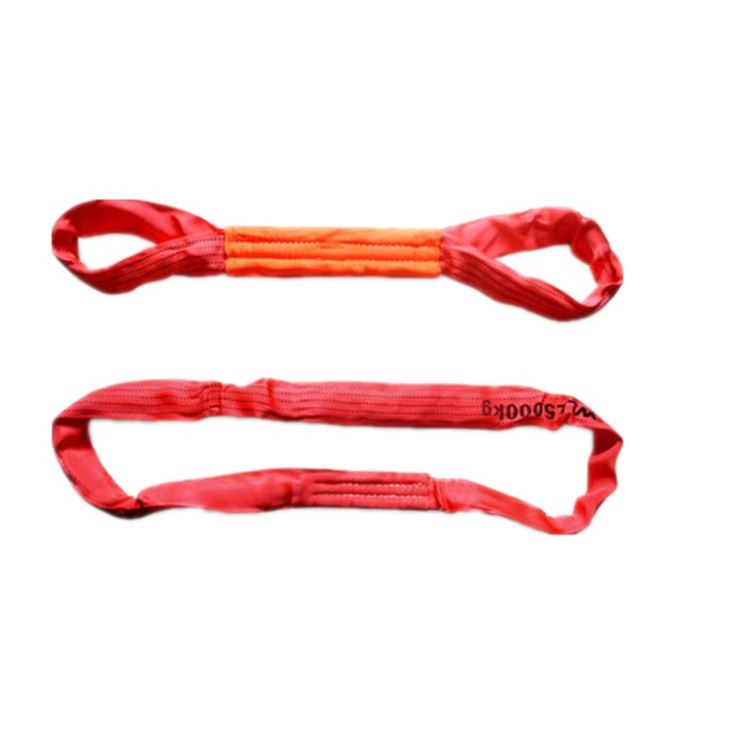

The round Slings are a continuous loop made from polyester yarn encased in a sleeve of polyester or nylon fabric.
Specifications
Standard: ISO4878, EN1492-2,JB/T8521
The products comply with CE, GS safety requirements
Material: Polyester Nylon.
Safety factor: 6:1 or 8:1
Color: Customized
Length: 0.5m-80m
Working load: 1T-1000T
The flexible round endless soft sling operating temperature: -40℃-100℃
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4 | 80 | 25.0 |
ZS0101H-200 | 200000 | 120 | 450 | 5 | 80 | 64.0 |
ZS0101H-300 | 300000 | 160 | 525 | 5 | 80 | 79.0 |
ZS0101H-400 | 400000 | 200 | 670 | 5 | 80 | 95.5 |
ZS0101H-500 | 500000 | 220 | 750 | 8 | 80 | 113.4 |
ZS0101H-600 | 600000 | 240 | 820 | 8 | 80 | 136.0 |
ZS0101H-700 | 700000 | 260 | 870 | 8 | 80 | 152.0 |
ZS0101H-800 | 800000 | 280 | 930 | 9 | 80 | 175.0 |
ZS0101H-900 | 900000 | 300 | 990 | 9 | 80 | 199.0 |
ZS0101H-1000 | 1000000 | 320 | 10500 | 9 | 80 | 222.0 |
Detailed Images
Advantages
The slings have the following advantages: damping, non-corrosive, non-conductive, non-aging and without Mars in the explosive environment.
The section is changing with the shape of the surface, in itself, it is very soft and flexible.
The slings can fit snugly on the hoisted goods, and the goods will not be damaged. At the same time, it can lessen the possibility of wounding caused by the rebound.
F&Q
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp, and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What are your terms of payment?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up
