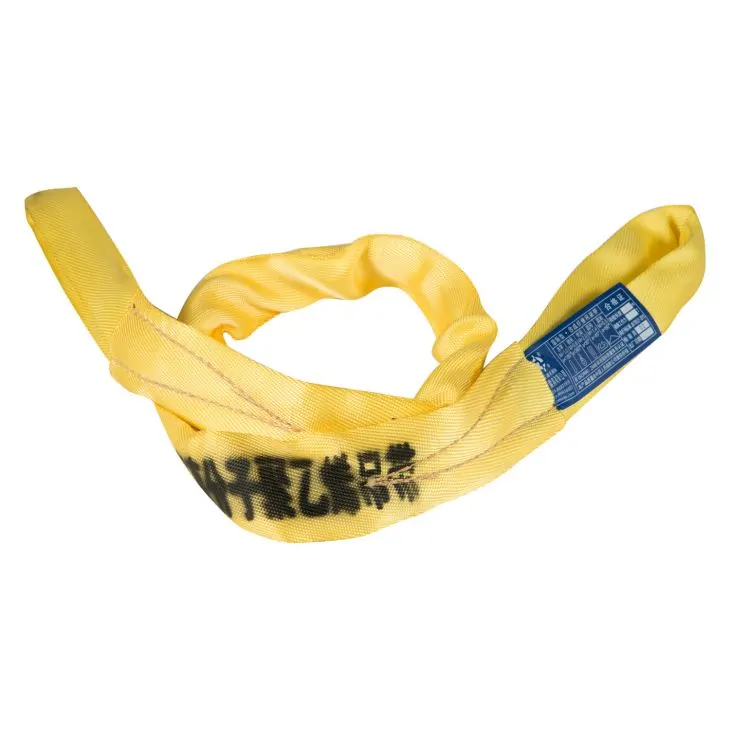

Double Sleeve Polyester Endless Round Sling

Product introduction Textile slings with high strength polyester industrial filament (100% PES),Nylon . Polypropylene fiber as raw materials are widely used for various occations of hoisting. 1. 100% high tenacity polyester of out sleeve and inner core; 2. With two ply woven heavy duty out...
Availability:
Quantity:

Product introduction

Textile slings with high strength polyester industrial filament (100% PES),Nylon .

Polypropylene fiber as raw materials are widely used for various occations of hoisting.

1. 100% high tenacity polyester of out sleeve and inner core;
2. With two ply woven heavy duty out sleeve;
3. Low elongation
4. Each stripe is equal to 1 ton capacity
5. Safety factor available: 5:1, 6:1, 7:1
6. Capcity from 1ton to 10ton
7. Length available: 1m to 10m
8. according to EN1492-1
9. Certificate: GS. CE.
10. Packing: PE shrink wrapped, carton and pallet


Product specification


20200430141119eb21351ca465437e9074cce1a49f471c

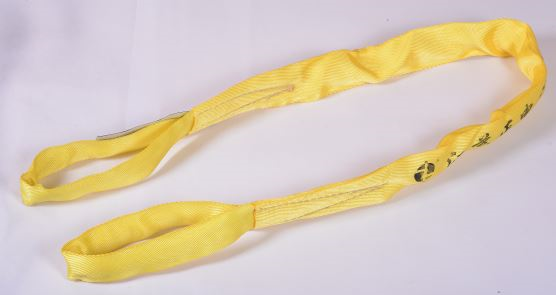

With two eyes at both ends



Technical Parameters

ITEM

WLL

THICKNESS


WIDTH/mm


L(m)


L/eye


WEIGHT(kg)


5:01


6:01


7:01


shortest


longest


5:01


6:01


7:01


KYEE0101


1000


7.5


25


25


30


1.1


100


300


0.19


0.2


0.22


KYEE0201


2000


7.5


50


50


60


1.2


100


300


0.36


0.41


0.45


KYEE0301


3000


7.5


75


75


90


1.3


100


350


0.56


0.6


0.71


KYEE0401


4000


7.5

100

100

120

1.4


100


500


0.61


0.75


1.02


KYEE0502


5000


7.5


125


125


150


2


100


550


0.89


1.02


1.21


KYEE0602


6000


7.5


150


150


180


2


100


600


0.98


1.26


1.42


KYEE0802


8000


7.5


200


200


240


2


100


700


1.36


1.69


1.89


KYEE1003


10000


7.5


250


250


300


3


100


800


1.68


2.07


2.34


KYEE1203


12000


7.5


300


300


300


3


100


900


1.95


2.37


2.96


Product feature and application

2020043013520281bd4c68155542b8818adfbf720e1bdc


The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling. 9,Working temperature range: -40ºC-100ºC

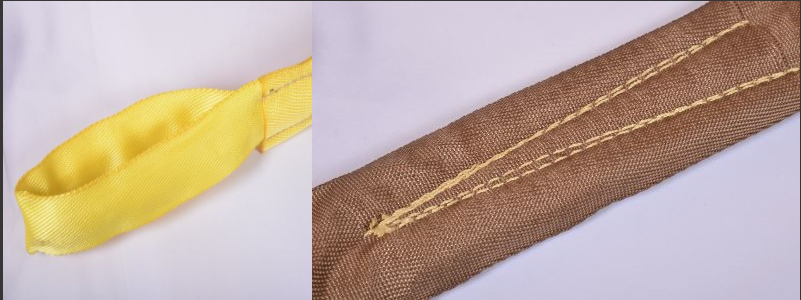

Product details


QQ截图20220720104539


Product qualification

We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.


201911011403358251646


Deliver ,shipping and serving

20200430140658947c620f370f4187bb604d9f17af9e05


FAQ

1. Q: Quality control?

A: We have strict tests and QC systems to guarantee high quality. you'll get a clear QC report before your every shipment, the report includes pictures, sizes, packing, testing, improving suggestions, etc.


2. Q: How to place an order?

A: After we firm up all details, You'll get a PI with product info and our bank account on it, and the production starts after the deposit arrives.


3. Q: Is your product customized?

A: Yes, because of the different working conditions, all our products are customized depending on detail requirements!


4. Q: What’s the information should I provide when inquiry?

A: The more detailed information you provide, the faster we can prepare for you the accurate solution.

The information such as the lifting capacity, length, safety factor, or other specials you give us will be more appreciated.


5. Q: Manufacturer or trading company?

A: We make our own polyester webbing and buy accessories nearby, then do the assembling and packing.

For metal parts and many other products on our web, usually, we could get you lower-than-market-average offers


6. Q: OEM service?

A: Yes you're only expected to provide LOGO files and design files for the box.


7. Q: Sample/trial order available?

A: Samples can be provided, usually free if the item is cheap, you're expected to pay for express.

YES for trial orders, however the more you buy, the less you pay for each unit.


8. Q: Lead time?

A: Usually 8~30 days after your order is confirmed.
