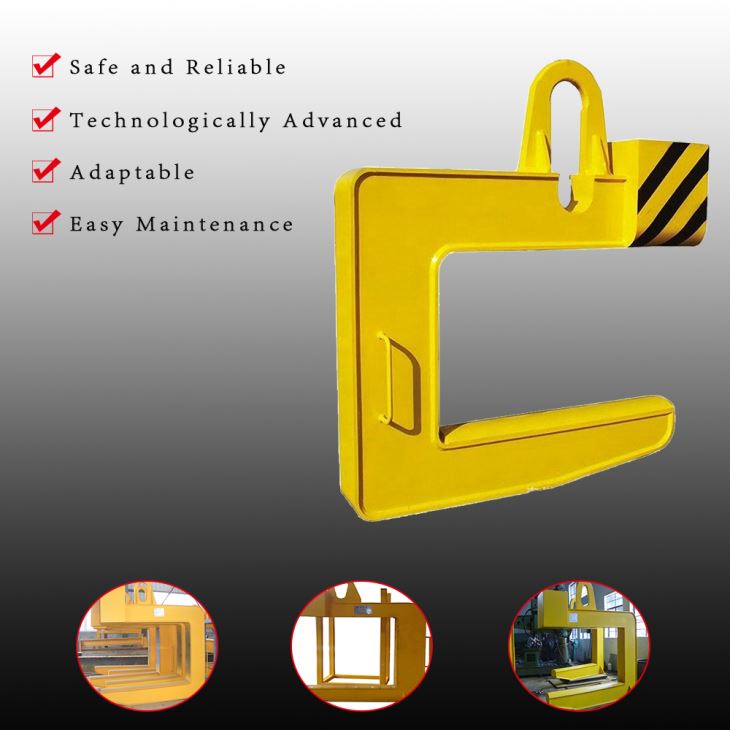

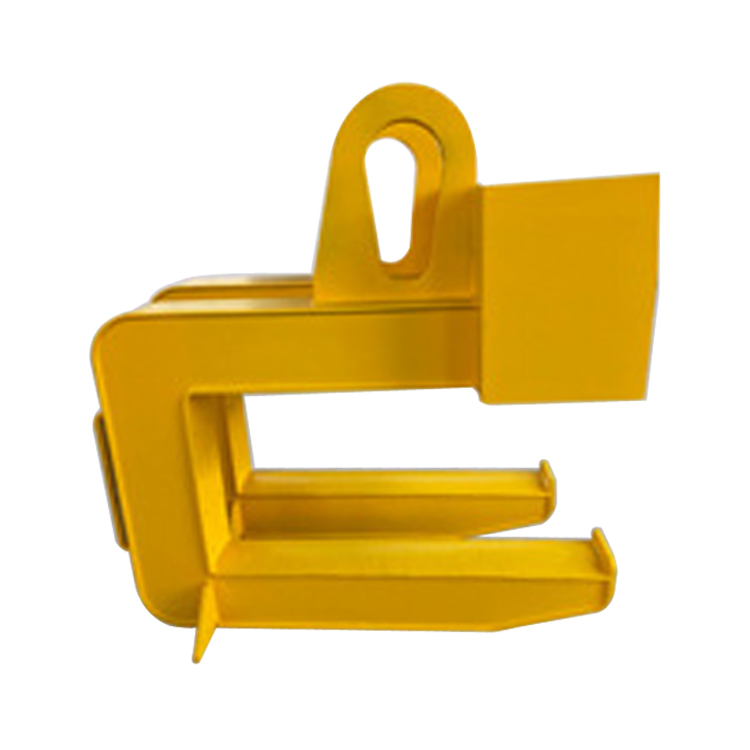

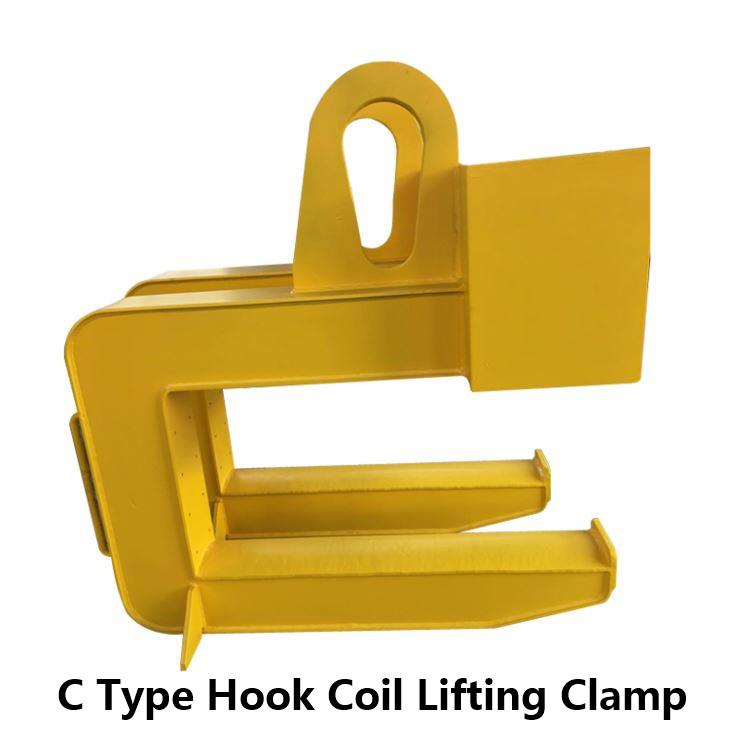

Product name ：Industrial Coil Lifting Clamp
Material：stainless steel, alloy steel
Use：Horizontal lifting of steel coil
Safety working load：32t
Specification：C-type/Rotating electric and customized
Delivery cycle：8-30days
| Working load limit | Coil width | The diameter of inner coil r | Inner width | Inner height | Itself weight |
3T | 300-500 | ≥400 | 500 | 450 | 350 |
5T | 750-900 | ≥400 | 900 | 500 | 450 |
900-1100 | ≥506 | 1100 | 600 | 650 | |
1100-1300 | ≥506 | 1300 | 600 | 800 | |
10T | 750-900 | ≥506 | 900 | 650 | 600 |
900-1120 | ≥506 | 1120 | 850 | 900 | |
1100-1300 | ≥506 | 1300 | 750 | 1000 | |
1300-1500 | ≥506 | 1500 | 850 | 1200 | |
15T | 900-1100 | ≥506 | 1100 | 850 | 1200 |
1100-1500 | ≥506 | 1500 | 850 | 1600 | |
25T | 900-1100 | ≥506 | 1100 | 860 | 1800 |
1100-1500 | ≥506 | 1500 | 860 | 2500 | |
30T | 1400-1660 | ≥506 | 1660 | 850 | 3400 |
Designed to move sheet metal coils in position vertically upturned or in a vertical position
Equipped with a maneuvering handle
The swivel foot allows for safe pickup a circle of sheet metal lying on spacer supports flat surface and the reverse operation - safe unloading a circle of sheets in a horizontal position
Complies with Machine Safety Regulations 2008
Made according to the harmonized standard: BS EN 13155
Marked on product : producers sign, sign UKCA, load capacity, factory number, year of production, size and mass.
Characteristic

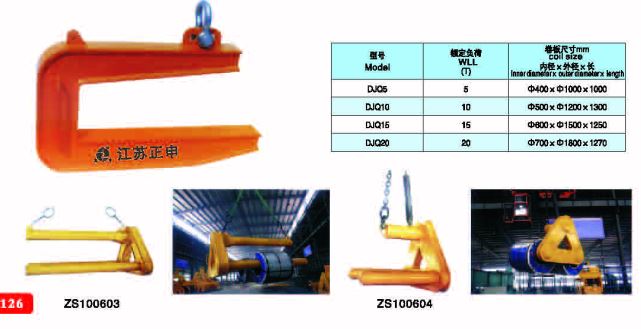

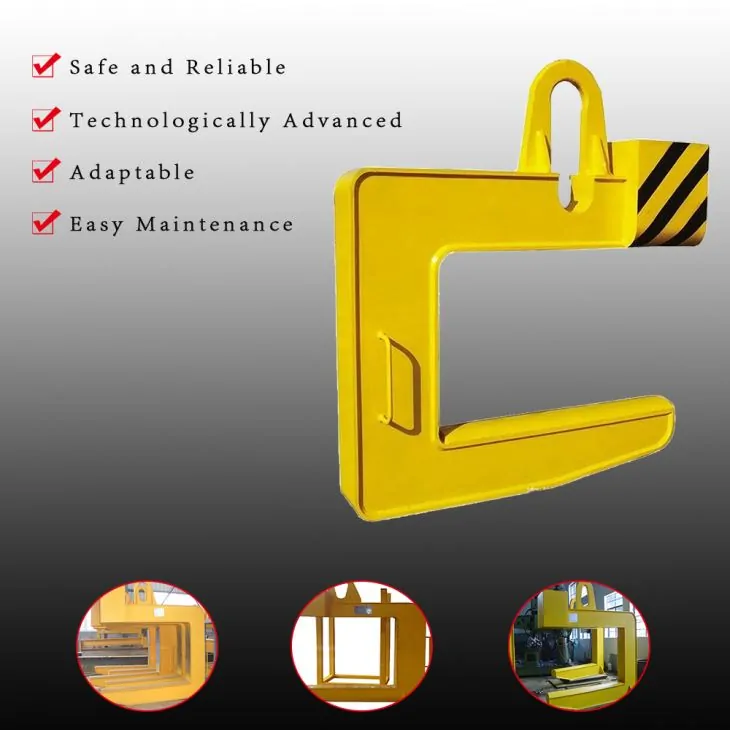

a. C-type coil lifting clamp is mainly used for horizontal lifting of rolling plate
b. It is widely used in hot strip mill and cold strip mill
c. It is also suitable for lifting all kinds of horizontal coils for station, freight yard, wharf and large steel coil users
Our factory
Our Certificates
Exhibition
Description of service advantages：
1.Any inquiries will be replied within 24 hours.
2.Professional manufacturer.
3.OEM/ODM available.
4.High quality, reasonable & competitive price, fast lead time.
5.After-sale Service:
1) All products would be strictly quality checked in house before packing.
2) All products would be well packed before shipping.
3) All products have one year warranty. Products will be free of maintenance within the warranty period.
6. Faster delivery
7. Payment: You can pay via T/T, Western Union, L/C
8. Shipping: We have strong cooperation with DHL, TNT, UPS, FedEx, and EMS.
Delivery:
Lifting Notice
Safety lifting
1. The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345HB,1166 N/mm²).
2. The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
3. Never overload a clamp and prevent the jerking of loads.
4. When loading always uses the whole jaw depth.
5. Never lift more than one plate at the same time.
6. Always keep your distance during lifting and descending of a load.
7. Prevent situations that anybody is under the load.
8. Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
