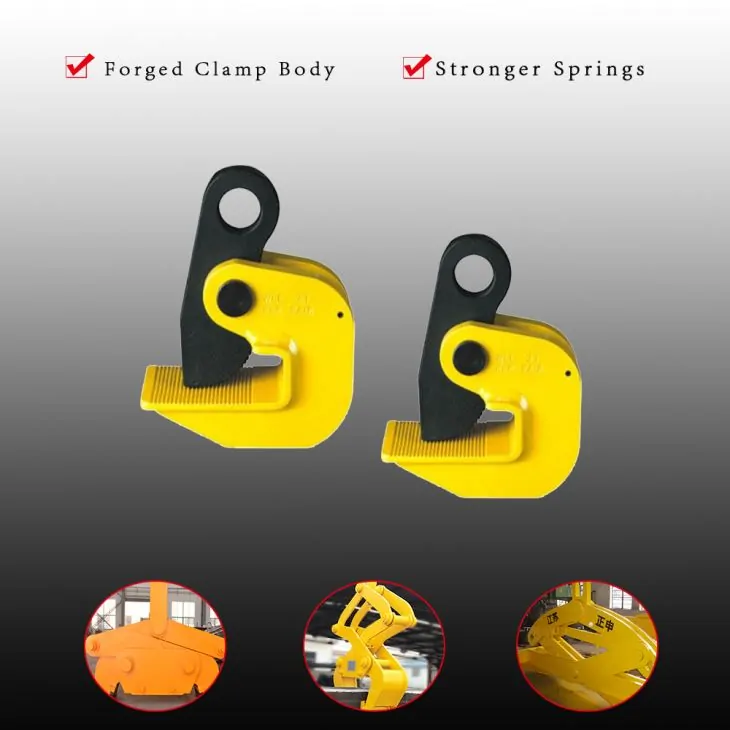

Product name ：Plate Lifting Clamp
Material：high quality steel
Use：steel plate lifting
Safety working load：16t
Specification：Steel Plate Vertical Lifting Clamp, horizontal steel plate lifting clamp
Delivery cycle：8-30days
Vertical
| Model | Working Load Limit (Ton) | Jaw Opening (mm.) | Weight Each (kg.) |
LWK928-1 | 0.8 | 0-16 | 2.8 |
LWK928-2 | 1 | 0-22 | 3.6 |
LWK928-3 | 2 | 0-30 | 5.5 |
LWK928-4 | 3.2 | 0-40 | 10 |
LWK928-5 | 5 | 0-50 | 17 |
LWK928-6 | 8 | 0-60 | 26 |
LWK928-7 | 10 | 0-80 | 32 |
Horizontal
| Model | Working Load Limit (Ton) | Jaw Opening (mm.) | Weight Each (kg.) |
PPD0.8 | 0.8 | 0-25 | 2.5 |
PPD1 | 1 | 0-30 | 3.5 |
PPD1.6 | 1.6 | 0-30 | 4 |
PPD2 | 2 | 0-40 | 5 |
PPD3.2 | 3.2 | 0-45 | 6 |
PPD4 | 4 | 0-50 | 6.5 |
PPD5 | 5 | 0-55 | 7.5 |
PPD6 | 6 | 0-65 | 10.5 |
PPD6(B) | 6 | 0-130 | 10.5 |
a). The vertical clamp is designed to ensure that the load can be lifted and turned(180 degrees).
b). With a wide range of uses and suited for the lifting and turning of steel plates, ship sections.
c). Fitted with a hinged hoisting eye moving in all directions.
d). The clamp is fitted with a safety latch.
e).Overall forged structure with good traceability.
Description of service advantages：
1.Any inquiries will be replied within 24 hours.
2.Professional manufacturer.
3.OEM/ODM available.
4.High quality, reasonable & competitive price, fast lead time.
5.After-sale Service:
1) All products would be strictly quality checked in house before packing.
2) All products would be well packed before shipping.
3) All products have one year warranty. Products will be free of maintenance within the warranty period.
6. Faster delivery
7. Payment: You can pay via T/T, Western Union, L/C
8. Shipping: We have strong cooperation with DHL, TNT, UPS, FedEx, and EMS.
Working Instruction Advice of Plate Lifting Clamp:
Lifting clamps are equipped with a per-tension mechanism ensuring the clamp does not slip when lifting force is applied and when the load is being lowered. The clamp is locked in closed as well as in an open position. Minimum WLL is 10% of the maximum WLL.
Note: The plate surface of the material must have hardness lever below .
Tips:
.Do NOT side load clamp more than 15 degrees for side loading.
.DO NOT lift plates with a temperature greater than 100 degrees.
.DO NOT use to lift stainless steel, lead or copper.
.DO NOT use on a double, triple, or quad sling. When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
