Specifications

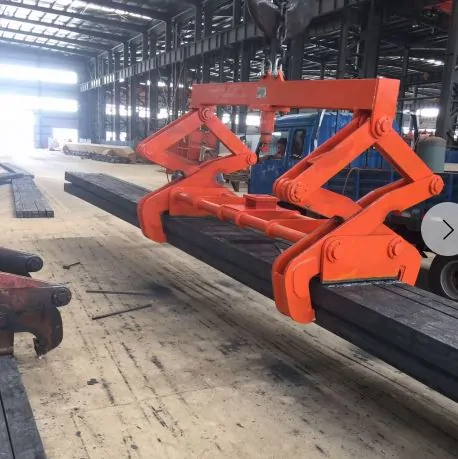

Steel Billet lifting Clamp
1. Introduction
Billet slings adopts lever principle, it can clamp billet without auxiliary force and has the features of reliable clamping, flexible action, safe lifting. Lifting device is made of high strength and high abrasion steel alloy, flexible with long working life. This structure square billet lifting clamp can be divided into fixed type and adjustable type to suitable for lifting different specification and different levels square billet. The connecting mode of billet slings with crane can be designed according to actual condition. Rigid lifting lug equipped with lock hook.
2. Application
It's widely used for steel mill, port and wharf for mass billet transferring.
3. Technical parameter
Features:
A. Billet clamp including chain, beam, and automatically lock, and few point of failure.
B. Automatic locking device can flexibly lifting safety and release artifacts.
Waste less electricity, which is beneficial to environmental protection.
Principle: Slab billet tong adopts the leverage principle; It can clamp the clamp without external force.
Advantage of the slab billet clamp works reliably, flexibly and safely. The opening and closing mechanism is made of alloy steel with high strength wearable. The slab billet clamp has a long service life. According to its structure, the slab billet clamp is divided into fixed clamp and adjustable clamp (the height H cannot be adjusted). The billet clamp is suitable for lifting different specifications and different numbers of billets.
Note: Adopt the design of PRO/E, simulate the lift and clamp process and analyze the main forced parts, all these can reach the best design effect.
The billet clamp for the use leverage may be the realization of mechnical clamping of the billet .It can be fxed or adjustable in order to adapt to different specification and layers .
Model | Rated load | Billet steel width | ||||||||
DPG16t | 16t | 550-800 | ||||||||
DPG20t | 20t | 700-1000 | ||||||||
DPG24t | 24t | 800-1200 | ||||||||
DPG30t | 30t | 1000-1500 | ||||||||
WILL | coil parameters(mm) | opening width | dimensions(mm) | Drive | Limit way | notes | ||||
A | B | C | ||||||||
8T | innner diamater |
|
|
|
|
|
| can be used under high temperature | ||
15T | ||||||||||
20T | ||||||||||
30T | Rotational | |||||||||
8T |
| photoelectric swith | normal temperature coil | |||||||
15T | ||||||||||
20T | ||||||||||
30T | Rotational | |||||||||
Service
Steel Billet hanging Clamp
1) On line in 24 hours.
2) Offer the ISO9001-2008 certificate.
3) Collect and receive the suggestions of our clients and improve our product.
4) Supply the solutions from our client's question first time.
5) Make the special products according to the requirements from our customers.
6) Welcome to visit our factory.
7) Invite our clients to join in the exhibition, like Canton fair or others.
Certificate
Jiangsu Gostern Rigging CO,LTd as one of professional manufacturersthe in the area.Main products are various types of wire rope, steel wire rope, nylon rope sling, special fiber flexible lifting belt series, flat sling series, safety net, safety belt, lifting chain series, sling series of the beam, and metallurgy fixture series and three dynamic tools series.Products are widely used in metallurgy, machinery, railway, petrochemical, port, electric power, automobile, aviation, construction and other fields.
Our Difference
SATISFACTORY SERVICE
- Leatime 8-15 days
- 3 years warranty
- Varied packaging choice
- We welcome you to have a factory Tour
Experience
- Long history in the sling area for almost 20 years
- Sales volume increase to over 40 million per year
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-5 days, mass production time needs 1-3 weeks for order quantity more than one container.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
