Specifications
Working load limit | Coil width | The diameter of inner coil r | Inner width | Inner height | Itself weight |
3T | 300-500 | ≥400 | 500 | 450 | 350 |
5T | 750-900 | ≥400 | 900 | 500 | 450 |
900-1100 | ≥506 | 1100 | 600 | 650 | |
1100-1300 | ≥506 | 1300 | 600 | 800 | |
10T | 750-900 | ≥506 | 900 | 650 | 600 |
900-1120 | ≥506 | 1120 | 850 | 900 | |
1100-1300 | ≥506 | 1300 | 750 | 1000 | |
1300-1500 | ≥506 | 1500 | 850 | 1200 | |
15T | 900-1100 | ≥506 | 1100 | 850 | 1200 |
1100-1500 | ≥506 | 1500 | 850 | 1600 | |
25T | 900-1100 | ≥506 | 1100 | 860 | 1800 |
1100-1500 | ≥506 | 1500 | 860 | 2500 | |
30T | 1400-1660 | ≥506 | 1660 | 850 | 3400 |
Service

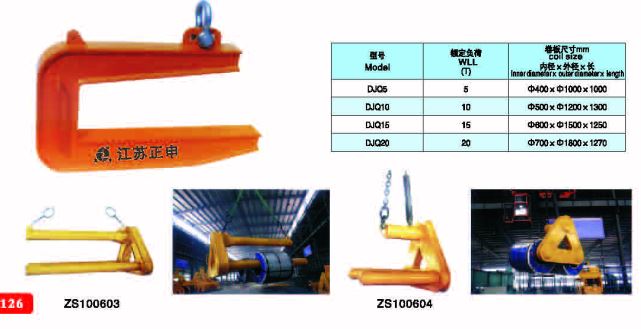

C type hook coil clamp
1.Samples can be offered by express. Costs will be reduced in orders.
2.Our parts library can ensure timely and enough spare parts. Some free wearing parts can be offered according to order details.
3.Our guaranty is 1 year for free maintenance.
4.Training can be provided , such as design, customization,installation and after-sales use.
5.OEM is welcomed.
6.Completely quick feedback
Certificate
We have achieved many awards both domestic and worldwide.Pls see our achievements on the C hook type clamp for coil lifting as bellow :
Important section
C type hook coil clamp
1. What's thickness of Steel coil , Coil dimensions: Width,. ID,. OD ?
2. What's the Max. coil weight ?
3. What's your crane Safe Working Load (SWL) ?
4. What's type of C hook clamp ? Double hook, or single hook ?
5. What's the working environment, temperature ?
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
