Specifications

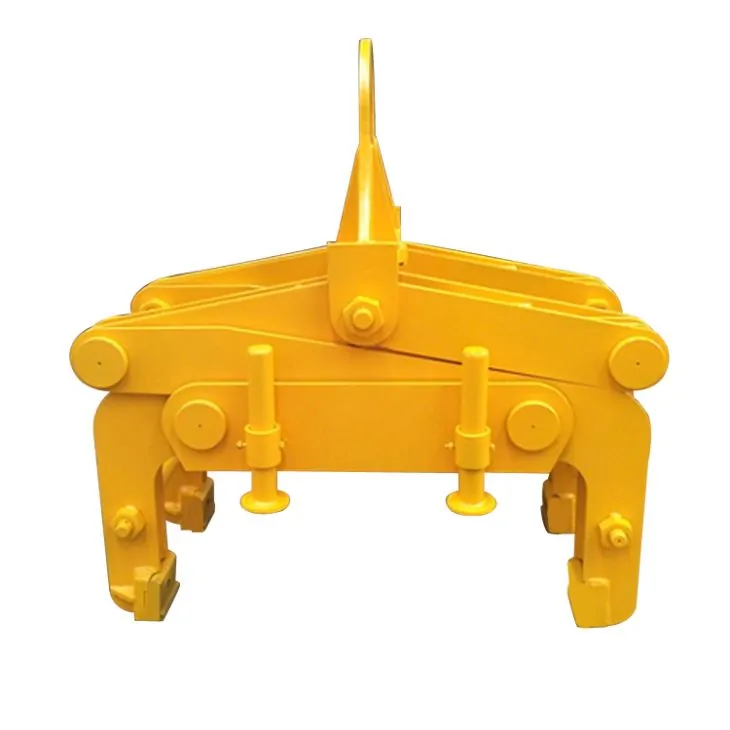

Billet slings adopts lever principle, it can clamp billet without auxiliary force and has the features of reliable clamping, flexible action, safe lifting. Lifting device is made of high strength and high abrasion steel alloy, flexible with long working life. This structure square billet lifting clamp can be divided into fixed type and adjustable type to suitable for lifting different specification and different levels square billet. The connecting mode of billet slings with crane can be designed according to actual condition. Rigid lifting lug equipped with lock hook.
Application
It's widely used for steel mill, port and wharf for mass billet transferring.
Technical parameter
| Rated load (t) | Applied range(mm) | Billet smallest thickness(mm) | Span (mm) | Max dimension (mm) | Self weight (kg) | |
W | H | |||||
3 | 100-300 | 60 | 800 | 1200 | 1600 | 350 |
5 | 100-300 | 70 | 800 | 1200 | 1800 | 500 |
5 | 170-350 | 80 | 800 | 1300 | 1800 | 600 |
5 | 450-600 | 100 | 800 | 1200 | 1800 | 600 |
5 | 650-1000 | 140 | 800 | 1500 | 2300 | 850 |
8 | 150-450 | 90 | 1200 | 2000 | 2400 | 1300 |
8 | 450-600 | 110 | 1200 | 1600 | 2500 | 1300 |
8 | 450-750 | 130 | 1200 | 1600 | 2200 | 1350 |
10 | 450-900 | 140 | 1500 | 1900 | 2600 | 2200 |
10 | 650-1000 | 150 | 1500 | 1600 | 2600 | 1800 |
10 | 700-1100 | 160 | 1500 | 1700 | 2600 | 1900 |
12 | 450-750 | 120 | 2000 | 1800 | 2400 | 2600 |
12 | 235-800 | 150 | 2000 | 2300 | 3000 | 2700 |
16 | 450-750 | 120 | 2500 | 2000 | 2700 | 3600 |
16 | 450-900 | 140 | 2500 | 2100 | 3000 | 3800 |
16 | 650-1000 | 150 | 2500 | 2000 | 2700 | 3800 |
16 | 600-1100 | 190 | 2500 | 2400 | 3100 | 4200 |
16 | 850-1250 | 160 | 2500 | 2000 | 3000 | 4200 |
20 | 700-1100 | 150 | 3000 | 2200 | 3200 | 4600 |
20 | 800-1300 | 170 | 3000 | 2200 | 3400 | 4800 |
20 | 950-1400 | 160 | 3000 | 2500 | 3500 | 4800 |
Note: the model which not listed in above table also can be designed according to customer's requirements.
Service
Steel Billet Lifting Clamp
1) On line in 24 hours.
2) Offer the ISO9001-2008 certificate.
3) Collect and receive the suggestions of our clients and improve our product.
4) Supply the solutions from our client's question first time.
5) Make the special products according to the requirements from our customers.
6) Welcome to visit our factory.
7) Invite our clients to join in the exhibition, like Canton fair or others.
Specifications
Billet slings adopts lever principle, it can clamp billet without auxiliary force and has the features of reliable clamping, flexible action, safe lifting. Lifting device is made of high strength and high abrasion steel alloy, flexible with long working life. This structure square billet lifting clamp can be divided into fixed type and adjustable type to suitable for lifting different specification and different levels square billet. The connecting mode of billet slings with crane can be designed according to actual condition. Rigid lifting lug equipped with lock hook.
Application
It's widely used for steel mill, port and wharf for mass billet transferring.
Technical parameter
| Rated load (t) | Applied range(mm) | Billet smallest thickness(mm) | Span (mm) | Max dimension (mm) | Self weight (kg) | |
W | H | |||||
3 | 100-300 | 60 | 800 | 1200 | 1600 | 350 |
5 | 100-300 | 70 | 800 | 1200 | 1800 | 500 |
5 | 170-350 | 80 | 800 | 1300 | 1800 | 600 |
5 | 450-600 | 100 | 800 | 1200 | 1800 | 600 |
5 | 650-1000 | 140 | 800 | 1500 | 2300 | 850 |
8 | 150-450 | 90 | 1200 | 2000 | 2400 | 1300 |
8 | 450-600 | 110 | 1200 | 1600 | 2500 | 1300 |
8 | 450-750 | 130 | 1200 | 1600 | 2200 | 1350 |
10 | 450-900 | 140 | 1500 | 1900 | 2600 | 2200 |
10 | 650-1000 | 150 | 1500 | 1600 | 2600 | 1800 |
10 | 700-1100 | 160 | 1500 | 1700 | 2600 | 1900 |
12 | 450-750 | 120 | 2000 | 1800 | 2400 | 2600 |
12 | 235-800 | 150 | 2000 | 2300 | 3000 | 2700 |
16 | 450-750 | 120 | 2500 | 2000 | 2700 | 3600 |
16 | 450-900 | 140 | 2500 | 2100 | 3000 | 3800 |
16 | 650-1000 | 150 | 2500 | 2000 | 2700 | 3800 |
16 | 600-1100 | 190 | 2500 | 2400 | 3100 | 4200 |
16 | 850-1250 | 160 | 2500 | 2000 | 3000 | 4200 |
20 | 700-1100 | 150 | 3000 | 2200 | 3200 | 4600 |
20 | 800-1300 | 170 | 3000 | 2200 | 3400 | 4800 |
20 | 950-1400 | 160 | 3000 | 2500 | 3500 | 4800 |
Note: the model which not listed in above table also can be designed according to customer's requirements.
