Specifications

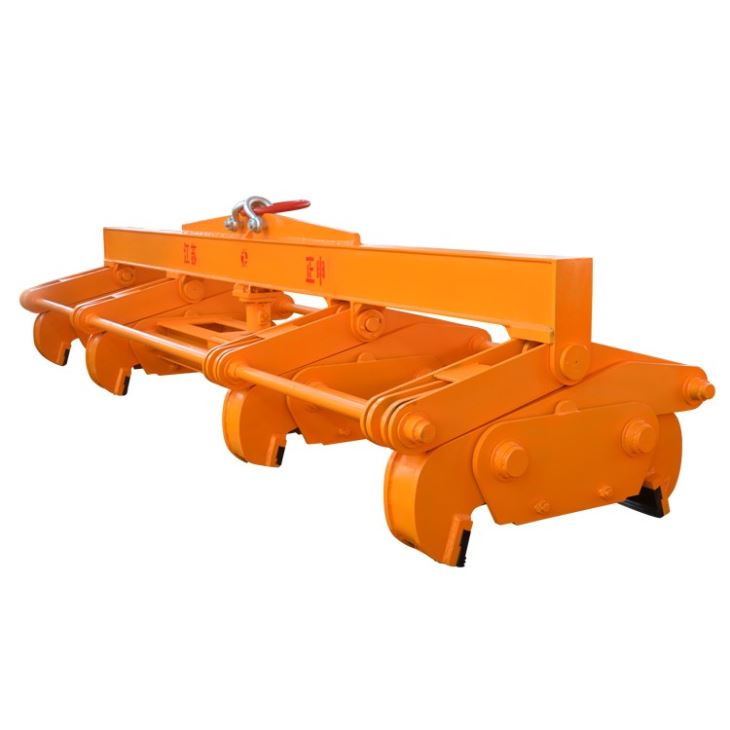

Rail clamps: mainly being composed of hanging beam, connecting rod, opening and closing mechanism, synchronizer, clamp arm, support plate and clamp tooth.
Principle: Slab billet tong adopts the leverage principle; It can clamp the clamp without external force.
Advantage of the slab billet clamp works reliably, flexibly and safely. The opening and closing mechanism is made of alloy steel with high strength wearable. The slab billet clamp has a long service life. According to its structure, the slab billet clamp is divided into fixed clamp and adjustable clamp (the height H cannot be adjusted). The billet clamp is suitable for lifting different specifications and different numbers of billets.
Note: Adopt the design of PRO/E, simulate the lift and clamp process and analyze the main forced parts, all these can reach the best design effect.
The billet clamp for the use leverage may be the realization of mechnical clamping of the billet .It can be fxed or adjustable in order to adapt to different specification and layers .
WILL | Coil parameters(mm) | Opening width | Dimensions(mm) | Drive | Limit way | Notes | ||
A | B | C | ||||||
8T | Innner diamater |
|
|
|
|
|
| Can be used under high temperature |
15T | ||||||||
20T | ||||||||
30T | Rotational | |||||||
8T | Onter diameter | Photoelectric swith | Normal temperature coil | |||||
15T | ||||||||
20T | ||||||||
30T | Rotational | |||||||
Certificate
We have achieved many awards both domestic and worldwide.Pls see our achievements on the Steel slab billet clamp as bellow :
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
