| W.L.L: | |
|---|---|
| S/F: | |
| Length: | |
| Quantity: | |
ZS0101H
Gostern Rigging
ZS0101H-2

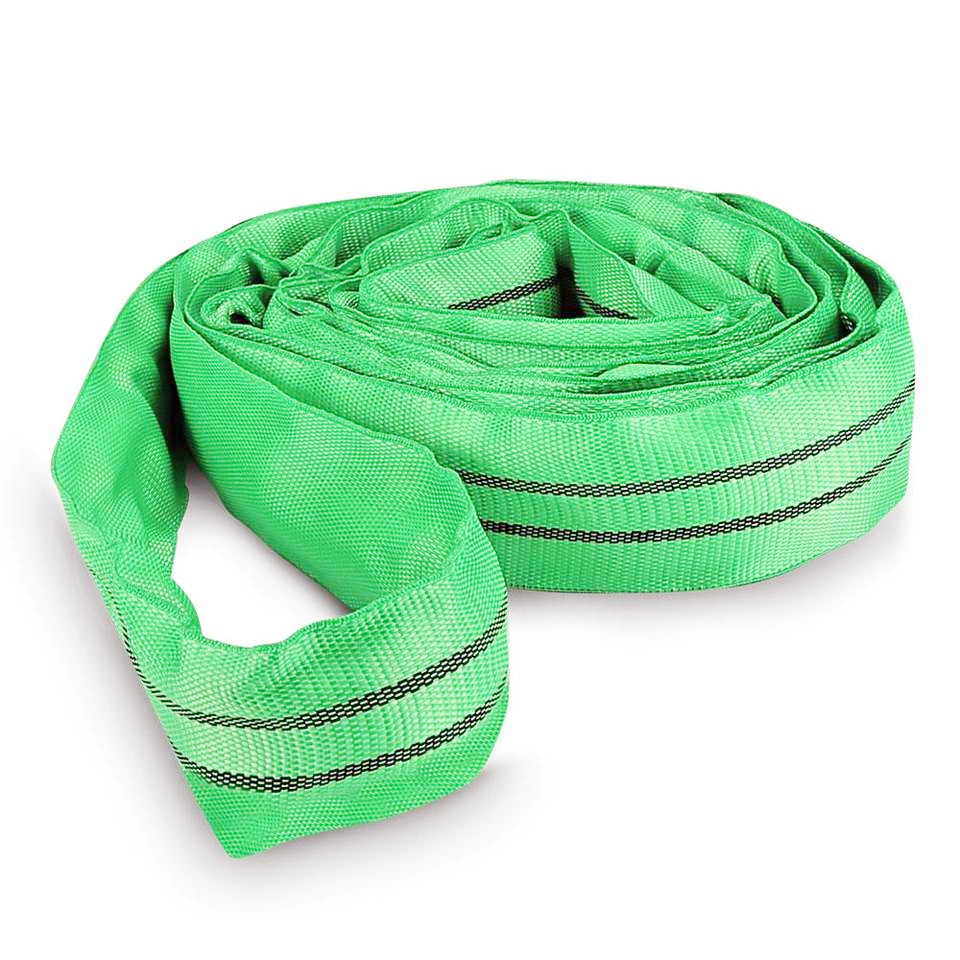

Technical Specifications of Our 2T Green Endless Soft Round Sling
Art. No. | WLL | Thickness | Width | Min Length | Max Length | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-20 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4 | 80 | 25.0 |
ZS0101H-200 | 200000 | 120 | 450 | 5 | 80 | 64.0 |
ZS0101H-300 | 300000 | 160 | 525 | 5 | 80 | 79.0 |
ZS0101H-400 | 400000 | 200 | 670 | 5 | 80 | 95.5 |
ZS0101H-500 | 500000 | 220 | 750 | 8 | 80 | 113.4 |
ZS0101H-600 | 600000 | 240 | 820 | 8 | 80 | 136.0 |
ZS0101H-700 | 700000 | 260 | 870 | 8 | 80 | 152.0 |
ZS0101H-800 | 800000 | 280 | 930 | 9 | 80 | 175.0 |
ZS0101H-900 | 900000 | 300 | 990 | 9 | 80 | 199.0 |
ZS0101H-1000 | 1000000 | 320 | 10500 | 9 | 80 | 222.0 |
*The size and weight of the sling are for reference only. If there are any strict requirements during use, please contact the supplier.
