Product description：

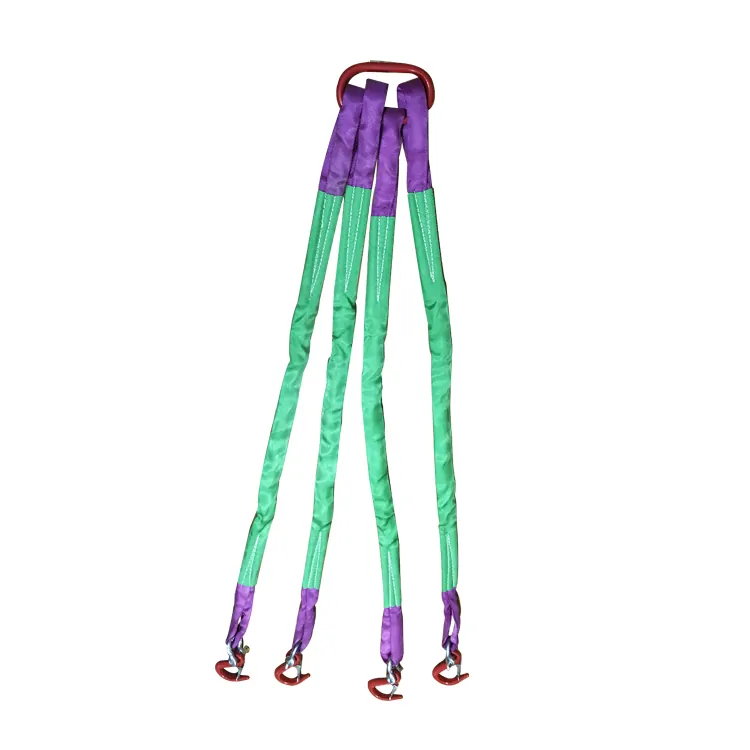

The4 Leg Round Sling Rigging consist of the master link, coupling link, lifting round slings, and shackle and lifting hooks. Also can be optimized according to customers’ requirements.
Product parameters：
Standard: EN1492-2, JB/T8521
Material: High-strength polyester (100%PES)
Length: Can be customized
Working load: 1.5T-60T
Elongation: ultimate working elongation <2% Breaking elongation <12%
Temperature range: - 40°C - 100 °C
One-leg | Two-leg | Three/Four-leg | ||
0°angle | 45°angle | 60°angle | 45°angle | 60°angle |
1 | 1.4 | 1 | 2.1 | 1.5 |
500 | 700 | 500 | 1050 | 750 |
1000 | 1400 | 1000 | 2100 | 1500 |
2000 | 2800 | 2000 | 4200 | 3000 |
3000 | 4200 | 3000 | 6300 | 4500 |
4000 | 5600 | 4000 | 8400 | 6000 |
5000 | 7000 | 5000 | 10500 | 7500 |
6000 | 8400 | 6000 | 12600 | 9000 |
8000 | 11200 | 8000 | 16800 | 12000 |
10000 | 14000 | 10000 | 21000 | 15000 |
12000 | 16800 | 12000 | 25200 | 18000 |
15000 | 21000 | 15000 | 31500 | 22500 |
20000 | 28000 | 20000 | 42000 | 30000 |
25000 | 35000 | 25000 | 52500 | 37500 |
30000 | 42000 | 30000 | 63000 | 45000 |
Product features：
1. 3 leg round slings have been included in the 4 leg round slings
2. We can use a PU heavy-duty Anti Cutting Sleeve to prevent damage to the job and sling from any pointed or major sharp edges.
3. Standard safety factor of the multi legs round sling is 4:1, we also supply the products with a safety factor of 5:1 or 6:1
4. The four leg round sling can be optimized according to customer requirements.
