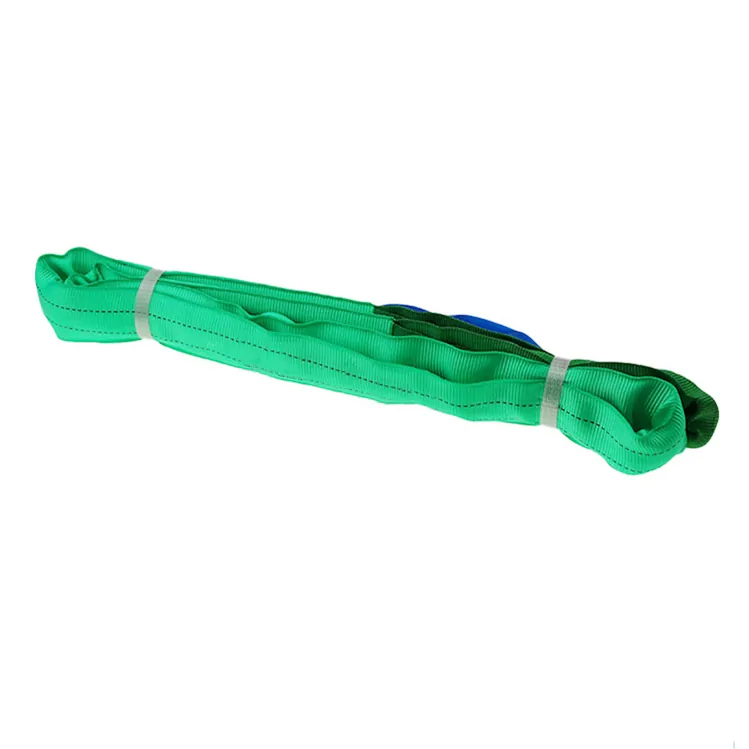

Green round sling 2 ton

Availability:
Quantity:

Product parameters

Standard: EN1492-2, JB/T8521

The products comply with CE and GS safety requirements

Material: High-strength polyester (100%PES)

Safety factor: 6:1, 7:1

Length: 0.5m-80m

Width: 60mm

Thickness: 16mm

Working load: 2000kg

Color: green

Elongation: ultimate working elongation <2% Breaking elongation <12%

Temperature range: - 40°C - 100 °C

1


Art. No.

WLL

Thickness

Width

Min

Max

Weight


(kg)

(mm)

(mm)

(m)

(m)

(kg/m)

ZS0101K-1

1000

15

50

0.5

80

0.47

ZS0101K-2

2000

16

60

0.5

80

0.6

ZS0101K-3

3000

18

70

0.5

80

0.82

ZS0101K-4

4000

20

75

0.5

80

1.2

ZS0101K-5

5000

25

80

0.5

80

1.47

ZS0101K-6

6000

27

90

1

80

1.7

ZS0101K-8

8000

28

100

1

80

2.2

ZS0101K-10

10000

29

110

2

80

3

ZS0101K-12

12000

30

125

2

80

3.4

ZS0101K-15

15000

31

150

2

80

4

ZS0101K-15

20000

32

180

2.5

80

5.6

ZS0101K-25

25000

34

200

2.5

80

6.8

ZS0101K-30

30000

68

220

2.5

80

8.2

ZS0101K-40

40000

75

250

2.5

80

10.9

ZS0101K-50

50000

86

270

2.5

80

13.8

ZS0101K-60

60000

126

280

4

80

16.6

ZS0101K-80

80000

138

300

4

80

22

ZS0101K-100

100000

152

320

4

80

27

ZS0101K-200

200000

230

460

5

80

66

ZS0101K-300

300000

310

535

5

80

82

ZS0101K-400

400000

380

680

5

80

98

ZS0101K-500

500000

410

760

8

80

116

ZS0101K-600

600000

460

830

8

80

139

ZS0101K-700

700000

498

880

8

80

155

ZS0101K-800

800000

520

940

9

80

178

ZS0101K-900

900000

580

1000

9

80

202

ZS0101K-1000

1000000

610

1060

9

80

226


Product features

1. Each round sling attaches an ID label, which bears all relevant information (including sling length, lifting capacity, date of manufacture, etc.)

2. Different color codes are used to indicate the limits of lifting round slings.

3. The soft round slings are low weight and high nominal load (up to 1000 tons)

4. The soft round slings can be applied to a variety of lifting conditions

5. The soft round slings will not conduct electricity, so there is no risk of electric shock

6. The soft round slings are light and soft, easy to use in a small space.


Product frecautions

  1. Please avoid using in acid or alkli environment

  2. When lifting goods with sharp corners, edges, or rough surfaces,  should use the round sling protector to avoid cuts.

  3. Never use round slings with damages or defects.

  4. Please check the WLL, length, and working position before using.
