Product introduction

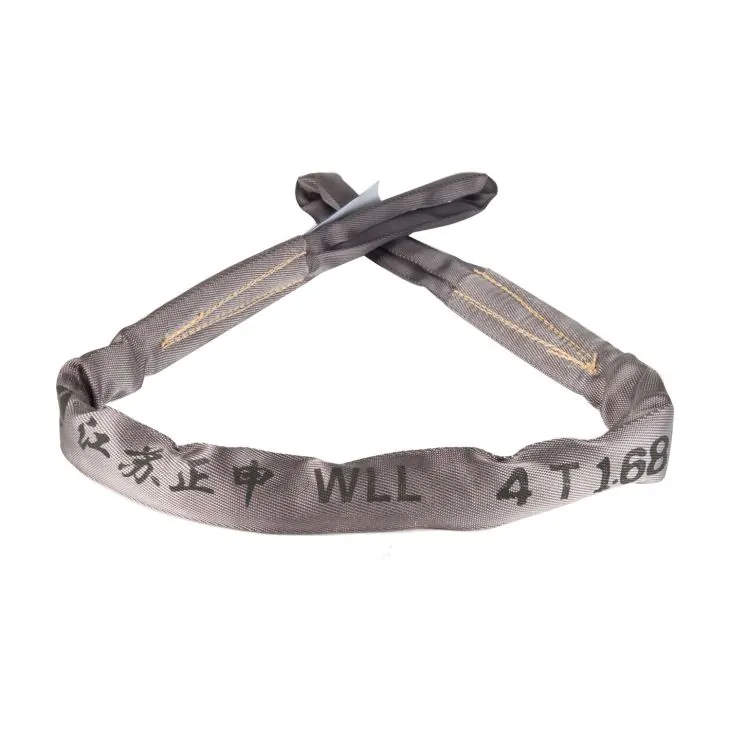

EN1492-2 Soft Round Sling
Round sling is produced from top quality synthetic fibre by advanced international level of weaving technology and equipment in various sewing methods. According to customer's requirement, the safety factor of sling has 4: 1, 5: 1, 6: 1, 7: 1, 8: 1, its load range is from 1t to 50t. Which is produced according to International stanard,for color and load capacity.
The safety coefficient is 7:1 ,according to your special needs, 5:1, 6:1,8:1 for your choice. The working load is diffientiated by colors according to international standard easy to identify even if the sling has been abraded.
Product specification
With two eyes at both ends
| Max SWL =Mode Coefficient p × Working load limit Max SWL of lifting method | ||||||||||||||
| Code | Color | Single Max working load limited | 2-Legs Max. Working load limited | Approx Width (mm) | Min Length (m) | Max Length (m) | ||||||||
| Upright | Choked | β | Upright | Choked | Upright | Choked | ||||||||
| 0°-7° | 7°-45° | 45°-60° | 45° | |||||||||||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 1.4 | 1.12 | 1.0 | 0.8 | |||||
| LS-01 | 1000 | 800 | 2000 | 1400 | 1000 | 700 | 1400 | 1120 | 1000 | 800 | 40 | 1 | 100 | |
| LS-02 | 2000 | 1600 | 4000 | 2800 | 2000 | 1400 | 2800 | 2240 | 2000 | 1600 | 50 | 1 | 100 | |
| LS-03 | 3000 | 2400 | 6000 | 4200 | 3000 | 2100 | 4200 | 3360 | 3000 | 2400 | 60 | 1 | 100 | |
| LS-04 | 4000 | 3200 | 8000 | 5600 | 4000 | 2800 | 5600 | 4480 | 4000 | 3200 | 70 | 1 | 100 | |
| LS-05 | 5000 | 4000 | 10000 | 7000 | 5000 | 3500 | 7000 | 5600 | 5000 | 4000 | 75 | 1 | 100 | |
| LS-06 | 6000 | 4800 | 12000 | 8400 | 6000 | 4200 | 8400 | 6720 | 6000 | 4800 | 80 | 1 | 100 | |
| LS-08 | 8000 | 6400 | 16000 | 11200 | 8000 | 5600 | 11200 | 8960 | 8000 | 6400 | 90 | 1 | 100 | |
| LS-10 | 10000 | 8000 | 20000 | 14000 | 10000 | 7000 | 14000 | 11200 | 10000 | 8000 | 100 | 1 | 100 | |
| LS-12 | 12000 | 9600 | 24000 | 16800 | 12000 | 8400 | 16800 | 13440 | 12000 | 9600 | 110 | 1 | 100 | |
| LS-15 | 15000 | 12000 | 40000 | 28000 | 15000 | 14000 | 28000 | 22400 | 15000 | 12000 | 125 | 1 | 100 | |
| LS-20 | 20000 | 16000 | 60000 | 42000 | 20000 | 21000 | 42000 | 33600 | 20000 | 16000 | 150 | 1 | 100 | |
| LS-25 | 25000 | 20000 | 50000 | 35000 | 25000 | 17500 | 35000 | 28000 | 25000 | 20000 | 180 | 1 | 100 | |
| LS-30 | 30000 | 24000 | 60000 | 42000 | 30000 | 21000 | 42000 | 33600 | 30000 | 24000 | 200 | 1 | 100 | |
| LS-40 | 40000 | 32000 | 80000 | 56000 | 40000 | 28000 | 56000 | 44800 | 40000 | 32000 | 200 | 1 | 100 | |
| LS-50 | 50000 | 40000 | 100000 | 70000 | 50000 | 35000 | 70000 | 56000 | 50000 | 40000 | 220 | 1 | 100 | |
| LS-60 | 60000 | 48000 | 12000 | 84000 | 60000 | 42000 | 84000 | 67200 | 60000 | 48000 | 220 | 1 | 100 | |
| LS-80 | 80000 | 64000 | 16000 | 112000 | 80000 | 56000 | 112000 | 89600 | 80000 | 64000 | 260 | 1 | 100 | |
| LS-100 | 100000 | 80000 | 20000 | 140000 | 100000 | 70000 | 140000 | 112000 | 100000 | 80000 | 290 | 1 | 100 | |

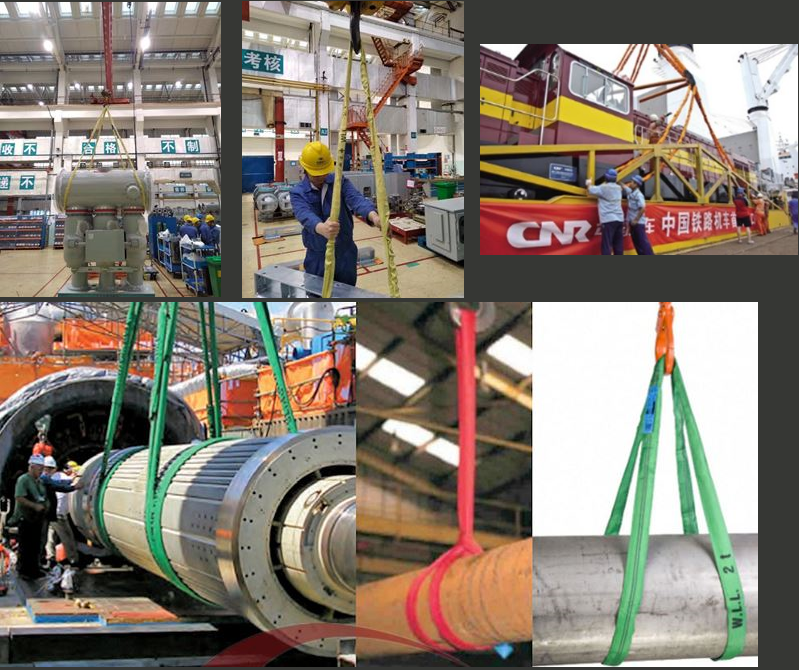

Product feature and application
Product details

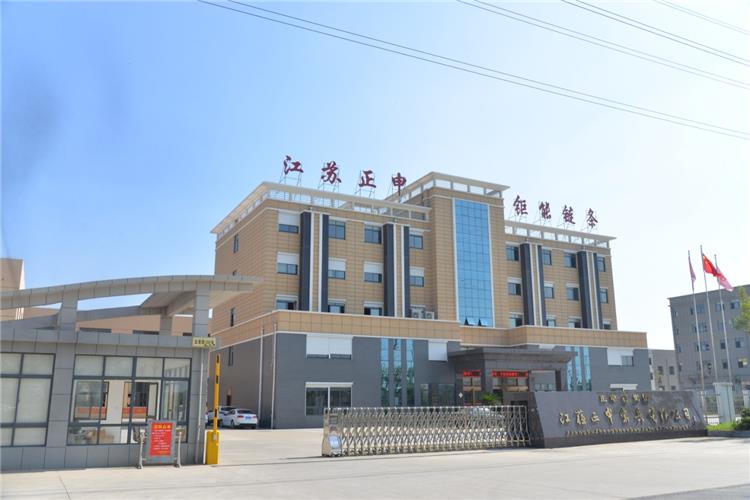

About Us
1). "ONE-STOP" Rigging and Marine supplier: a great variety of rigging and marine products including 1,000 kinds of products, 3,000 kinds of specifications, which are widely used in Construction,Transportation, Forestry, Oil&Gas, Agriculture, Utilities, Aerospace, Marine, Manufacturing, Mining, Fishing and Government.
2). Old history: since 1999, more than 20 years focus on rigging, marine and rubber products.
The founding principles of the company have never changed-business integrity,quality is everything.
3). Strong development capabilities: processing with Given materials and samples at own module workshop, save cost, finish customers special and big order rapidly.
BUSINESS FAQ:
1) What is the MIN order quantity ?
USD 1580 in total value, usually 1 ton.
2)What is the delivery time?
15 -20 days since received the deposit.
3)What is the Payment term?
A. 30% TT deposit, the balance against copy B/L.
B. Irrevocable L/C at sight.
C. Other payment can be negotiated.
4)Could I get free samples before first cooperation?
Yes, of course! But the buyer need to afford express fee, which is returnable once we build cooperation.
5)What's the packing method?
Packing methods for most of the products are in standard exporting cartons and pallets.
Special packings are available upon requests.
6)Other relevant products such as FLAT WEBBING SLINGS, RATCHET TIE DOWN STRAPS, TOW STRAPS,
WINCH STRAPS, ACCESSORIES are available ?
Of course! See below picture. Many different items are not mentioned in the picture. If you are interested, contact our sales staffs.
