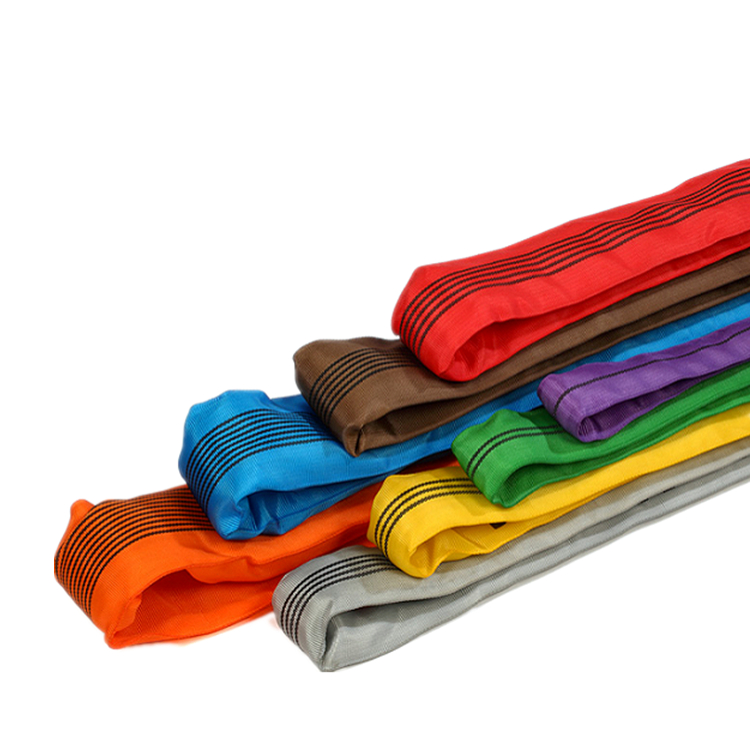

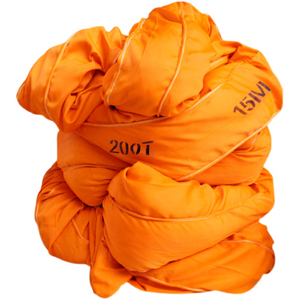

Industrial Heavy Duty Synthetic Soft Round Sling

The polyester endless round slings are a type of lifting sling made from high-strength polyester fabric (100% PES). They are commonly used in rigging, lifting, and material handling applications due to their flexibility, strength, and durability.
Availability:
Quantity:
  • ZS0101H

  • Gostern Rigging

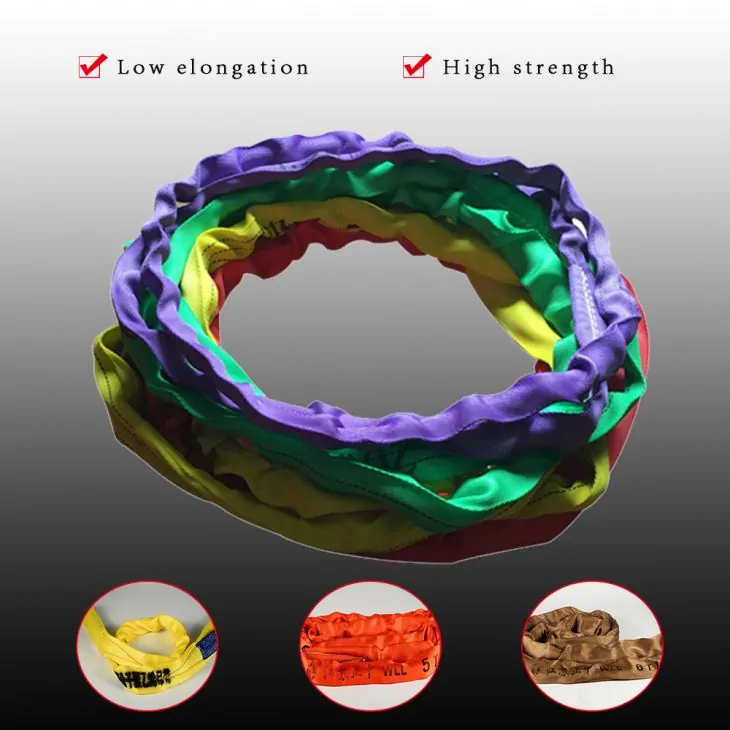

201912121505105979234

1

Product name :Endless Round Sling

Material:polyester, HMPE

Color:color code (can be customized)

Usage:transportation, lifting process of steel, machining, mold, warehouse

Safety working load:1Ton-1000Ton

Safety factor: 5:1, 6:1, 7:1, 8:1


环状柔性吊装带图纸


Art. No.

WLL

Thickness

Width

Min Length

Max Length

Weight

(kg)

(mm)

(mm)

(m)

(m)

(kg/m)

ZS0101H-1

1000

6

40

0.5

80

0.4

ZS0101H-2

2000

7

50

0.5

80

0.61

ZS0101H-3

3000

8

60

0.5

80

0.75

ZS0101H-4

4000

9

70

0.5

80

0.80

ZS0101H-5

5000

11

75

0.5

80

0.84

ZS0101H-6

6000

12

80

1

80

0.98

ZS0101H-8

8000

13

90

1

80

1.10

ZS0101H-10

10000

15

100

2

80

2.20

ZS0101H-12

12000

16

110

2

80

3.20

ZS0101H-15

15000

18

125

2

80

3.80

ZS0101H-15

20000

20

150

2.5

80

5.20

ZS0101H-25

25000

24

180

2.5

80

6.50

ZS0101H-30

30000

32

200

2.5

80

7.80

ZS0101H-40

40000

40

200

2.5

80

10.4

ZS0101H-50

50000

45

220

2.5

80

13.0

ZS0101H-60

60000

65

220

4

80

15.6

ZS0101H-80

80000

70

260

4

80

20.8

ZS0101H-100

100000

80

290

4

80

25.0

ZS0101H-200

200000

120

450

5

80

64.0

ZS0101H-300

300000

160

525

5

80

79.0

ZS0101H-400

400000

200

670

5

80

95.5

ZS0101H-500

500000

220

750

8

80

113.4

ZS0101H-600

600000

240

820

8

80

136.0

ZS0101H-700

700000

260

870

8

80

152.0

ZS0101H-800

800000

280

930

9

80

175.0

ZS0101H-900

900000

300

990

9

80

199.0

ZS0101H-1000

1000000

320

10500

9

80

222.0


2


a. Made of the high tenacity polyester material

b. Low elongation

c. Different lengths are available

d. Safety factor available: 6:1~8:1

e. Reinforced eye on both ends allow easy hook up to any vehicle/machine


3

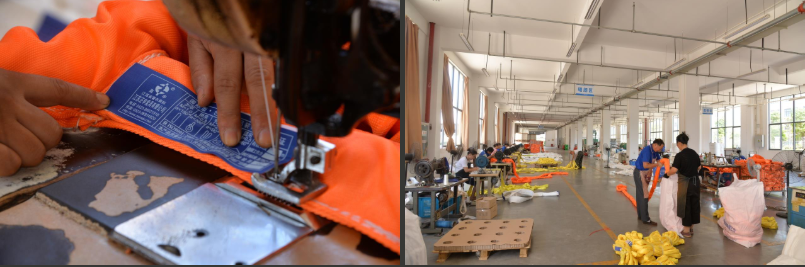

QQ截图20220719142929




5


QQ截图20220719142950


6


Description of service advantages:

1. We are your one-stop service and solutions provider, certified by ISO9001.

2. Exporting to Europe, USA, Australia, Mid East, Southeast Asia, and Africa.

3. Strict quality control and with long-term quality inspection contract with SGS.

4. Pre-shipment quality inspection for the customer by picture/video.

5. Meet customized requirements on design and logo.

6. Small order acceptable.


Delivery:

201912121514198543238



7

1. Never use slings with damage or defects

2. Only use slings with clear identification.

3. Before use, check the working load limit, length, and working position.

4. Never use slings with knots.

5. Never use slings on sharp edges without the correct protection.

6. Use the correct mode factor and check the lifting angle before use.

7. Trapping the sling when lowering the load should be avoided.

8. Never use a sling under 40℃ or more than 100℃.

9. Stitching should never be placed over hooks or other lifting devices.

10. Sling should be stored in dry and clear conditions. Away from heat sources or direct sunlight and UV rays.

11. In case of chemical attack, please check with the manufacturer.
