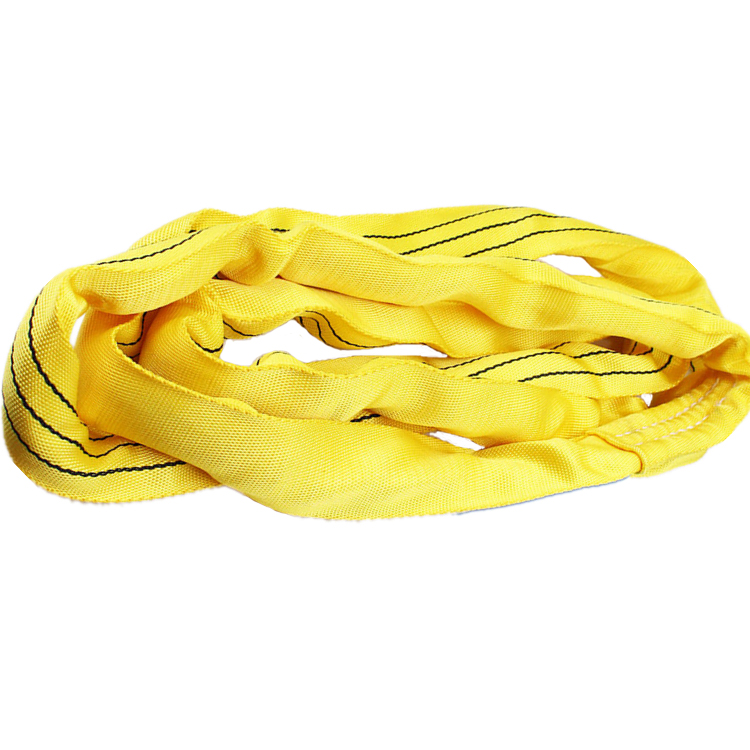

ZS0101H
Gostern Rigging
ZS0101H
Product parameters：
Standard: EN1492-2, JB/T8521
The products comply with CE and GS safety requirements
Material: High-strength polyester (100%PES)
Safety factor: 6:1, 7:1
Length: Can be customized
Working load: 1T-1000T
Elongation: ultimate working elongation <2% Breaking elongation <12%
Temperature range: - 40°C - 100 °C
Art. No. | WLL | Thickness | Width | Min Length | Max Length | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1.0 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1.0 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2.0 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2.0 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2.0 | 80 | 3.80 |
ZS0101H-20 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4.0 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4.0 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4.0 | 80 | 25.0 |
ZS0101H-200 | 200000 | 120 | 450 | 5.0 | 80 | 64.0 |
ZS0101H-300 | 300000 | 160 | 525 | 5.0 | 80 | 79.0 |
ZS0101H-400 | 400000 | 200 | 670 | 5.0 | 80 | 95.5 |
ZS0101H-500 | 500000 | 220 | 750 | 8.0 | 80 | 113.4 |
ZS0101H-600 | 600000 | 240 | 820 | 8.0 | 80 | 136.0 |
ZS0101H-700 | 700000 | 260 | 870 | 8.0 | 80 | 152.0 |
ZS0101H-800 | 800000 | 280 | 930 | 9.0 | 80 | 175.0 |
ZS0101H-900 | 900000 | 300 | 990 | 9.0 | 80 | 199.0 |
ZS0101H-1000 | 1000000 | 320 | 10500 | 9.0 | 80 | 222.0 |
Product features：
1. Each endless round sling attaches an ID label, which bears all relevant information (including sling length, lifting capacity, date of manufacture, etc.)
2. Different color codes are used to indicate the limits of lifting endless round slings.
3. The endless round slings are light in weight and high nominal load (up to 1000 tons)
4. The endless round slings can be applied to a variety of lifting conditions
5. The endless soft round slings will not conduct electricity, so there is no risk of electric shock
6. The endless soft round slings are light and soft, easy to use in a small space.
Attentions：
1. Please avoid using in acid or alkali environment
2. When lifting goods with sharp corners, edges, or rough surfaces, should use the round sling protector to avoid cuts.
3. Never use round slings with damages or defects.
4. Please check the WLL, length, and working position before using.
