Product introduction
Textile slings with high strength polyester industrial filament (100% PES),Nylon .
Polypropylene fiber as raw materials are widely used for various occations of hoisting.
Product specification
With two eyes at both ends
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |

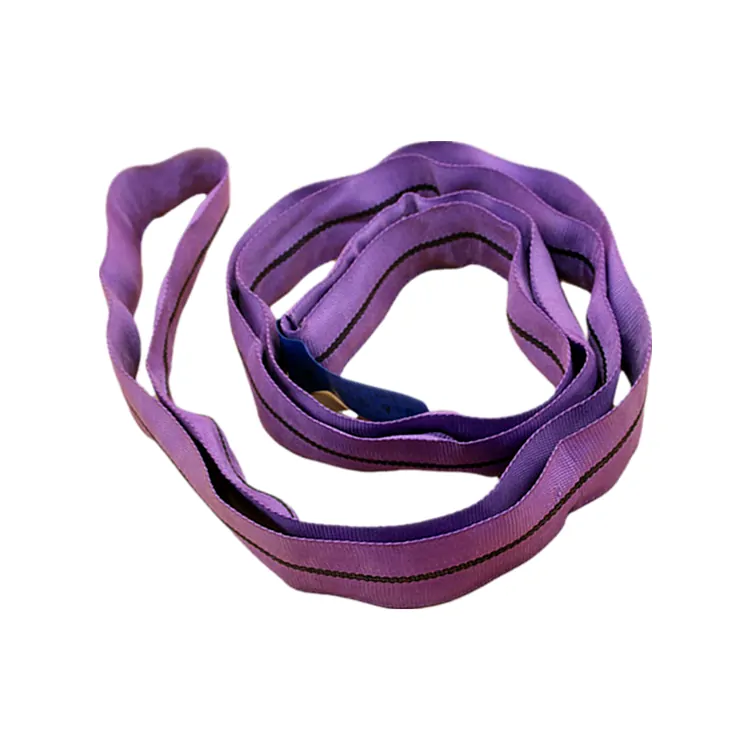

Endless sling
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0102H-1 | 1000 | 4 | 25 | 0.5 | 100 | 0.18 |
ZS0102H-2 | 2000 | 4 | 50 | 1 | 100 | 0.39 |
ZS0102H-3 | 3000 | 4 | 75 | 1 | 100 | 0.73 |
ZS0102H-4 | 4000 | 4 | 100 | 1.5 | 100 | 0.84 |
ZS0102H-5 | 5000 | 4 | 125 | 1.5 | 100 | 0.96 |
ZS0102H-6 | 6000 | 4 | 150 | 1.5 | 100 | 1.12 |
ZS0102H-8 | 8000 | 4 | 200 | 2 | 100 | 1.65 |
ZS0102H-10 | 10000 | 4 | 250 | 2 | 100 | 1.84 |
Package:Single packed in shrinking foil or plastic with Certificate of Conformity

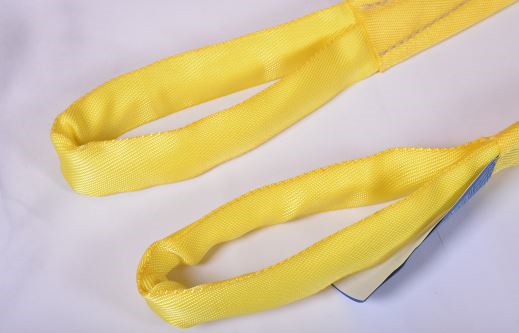

Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers,which we usually call Simplex webbing sling,Duplex webbing sling,Triplex webbing sling and Quadraplex.And the eyes can be made into Flat eyes,Twisted eyes,and Reversed eyes.Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it's better able to hold the load without the risk of shocking.OEM service is also available.
Product feature and application
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.,Change-bearing point to add using life.
Product details
1.Manufactured in accordance with BS 6668 Pt.2 1987,DI N-EN 1492-2 and the essential requirements of the European machinery directive.
2.The load bearing core of a Round Sling is manufactured from 100% high tenacity continuous filament polyester fibre which is protected for WLL(Working Load Limit)identification.
3.Colour coded and striped for WLL(Working Load Limit) identification.
4.Each round sling is labeled and certificated in accordance with the relevant standard together with information about safety use and maintenance.
FAQ
How to order the products?
Send the inquiry with detail item description or with ITEM number. Tell us the quantity you need, the size of goods, and the packing. If there is no packing demand we take it as seaway packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
About sample:
Cost with free if the quantity small, and the express charge account into buyer's.
About payment:
T/T, LC in U.S. Dollars or EUR, for small orders, PayPal is ok.
About lead time:
Cause all of our products manufacturer according customers order, usually within 35days after receipt of your deposit.
