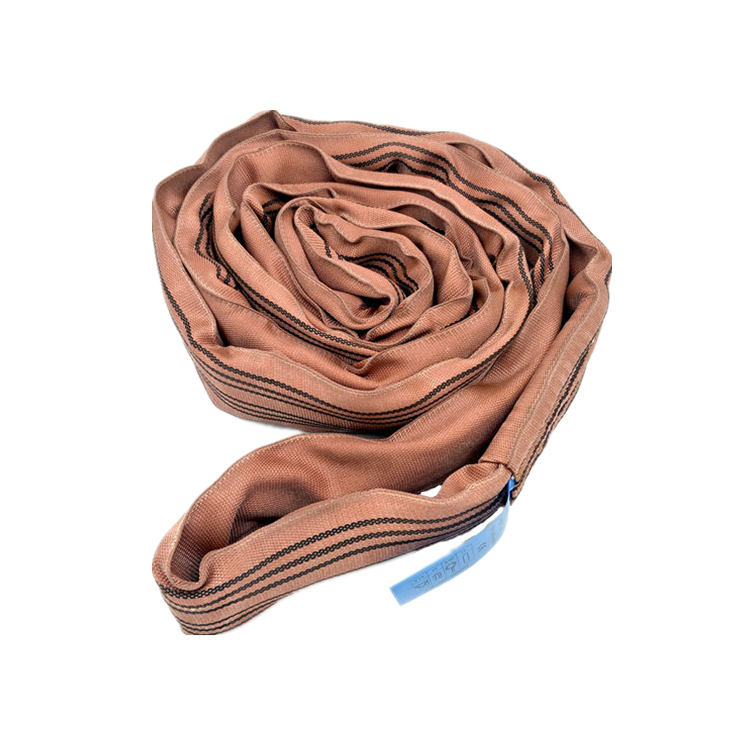

High Temperature Resistant Soft Round Sling Product introduction
Textile slings with high strength polyester industrial filament (100% PES),Nylon .
Polypropylene fiber as raw materials are widely used for various occations of hoisting.
1. 100% high tenacity polyester of out sleeve and inner core;
2. With two ply woven heavy duty out sleeve;
3. Low elongation
4. Each stripe is equal to 1 ton capacity
5. Safety factor available: 5:1, 6:1, 7:1
6. Capcity from 1ton to 10ton
7. Length available: 1m to 10m
8. according to EN1492-1
9. Certificate: GS. CE.
10. Packing: PE shrink wrapped, carton and pallet
Product specification
With two eyes at both ends
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |
ZS0101K-80 | 80000 | 138 | 300 | 4 | 80 | 22 |
ZS0101K-100 | 100000 | 152 | 320 | 4 | 80 | 27 |
ZS0101K-200 | 200000 | 230 | 460 | 5 | 80 | 66 |
ZS0101K-300 | 300000 | 310 | 535 | 5 | 80 | 82 |
ZS0101K-400 | 400000 | 380 | 680 | 5 | 80 | 98 |
ZS0101K-500 | 500000 | 410 | 760 | 8 | 80 | 116 |
ZS0101K-600 | 600000 | 460 | 830 | 8 | 80 | 139 |
ZS0101K-700 | 700000 | 498 | 880 | 8 | 80 | 155 |
ZS0101K-800 | 800000 | 520 | 940 | 9 | 80 | 178 |
ZS0101K-900 | 900000 | 580 | 1000 | 9 | 80 | 202 |
ZS0101K-1000 | 1000000 | 610 | 1060 | 9 | 80 | 226 |
Endless sling
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0102H-1 | 1000 | 4 | 25 | 0.5 | 100 | 0.18 |
ZS0102H-2 | 2000 | 4 | 50 | 1 | 100 | 0.39 |
ZS0102H-3 | 3000 | 4 | 75 | 1 | 100 | 0.73 |
ZS0102H-4 | 4000 | 4 | 100 | 1.5 | 100 | 0.84 |
ZS0102H-5 | 5000 | 4 | 125 | 1.5 | 100 | 0.96 |
ZS0102H-6 | 6000 | 4 | 150 | 1.5 | 100 | 1.12 |
ZS0102H-8 | 8000 | 4 | 200 | 2 | 100 | 1.65 |
ZS0102H-10 | 10000 | 4 | 250 | 2 | 100 | 1.84 |
ZS0102H-12 | 12000 | 4 | 300 | 2 | 100 | 2.06 |
Product feature and application
The unique advantages of Round Sling:
1,Color code, in according with international standard, to validate sling capacity.
2,Special thickness sleeves and special technical to add using life.
3,Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4,Clearly print WLL and length on surface of sling.,Change-bearing point to add using life.
6,If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
7,100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8,Clearly tag with serial number and a copy of certificate together with one sling. 9,Working temperature range: -40ºC-100ºC
Product details
Product qualification
We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.
Deliver ,shipping and serving
FAQ
1. Q: How to place an order?
A: After we firm up all details, You'll get a PI with product info and our bank account on it, and the production starts after the deposit arrives.
2. Q: What’s your package?
A: carton or pallet
3. Q: Is your product customized?
A: Yes, because of the different working conditions, all our products are customized depending on detail requirements!
4. Q: What’s the information should I provide when inquiry?
A: The more detailed information you provide, the faster we can prepare for you the accurate solution.
The information such as the lifting capacity, length, safety factor, or other specials you give us will be more appreciated.
5. Q: Manufacturer or trading company?
A: We make our own polyester webbing and buy accessories nearby, then do the assembling and packing.
For metal parts and many other products on our web, usually, we could get you lower-than-market-average offers
6. Q: OEM service?
A: Yes you're only expected to provide LOGO files and design files for the box.
7. Q: Sample/trial order available?
A: Samples can be provided, usually free if the item is cheap, you're expected to pay for express.
YES for trial orders, however the more you buy, the less you pay for each unit.
8. Q: Lead time?
A: Usually 8~30 days after your order is confirmed.
9. Q: Quality control?
A: We have strict tests and QC systems to guarantee high quality. you'll get a clear QC report before your every shipment, the report includes pictures, sizes, packing, testing, improving suggestions, etc.
