Polyester Lifting Round Sling
The polyester lifting round sling conforms to the standard EN 1492-2-2000, can be used in transportation, port operations, mechanical processing, construction, water and electricity installation, and object dispatching, etc.
Specifications
Material | High strength polyester (100%PES) |
Type | Round sling |
Body Diameter | Measure the core polyester yarn |
Length | from 0.5m to 80m up, can be customized as required |
W.L.L. | From 0.5 Ton to 1000 Ton |
Safety Factor | 4:1,5:1,6:1,7:1,8:1 |
Color | According to EN standard or as required |
Standard | ISO4878, EN1492-2-2000, JB/T8521. |
Sample Delivery Time | Within 7 days |
OEM&ODM | OK |
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4 | 80 | 25.0 |
ZS0101H-200 | 200000 | 120 | 450 | 5 | 80 | 64.0 |
ZS0101H-300 | 300000 | 160 | 525 | 5 | 80 | 79.0 |
ZS0101H-400 | 400000 | 200 | 670 | 5 | 80 | 95.5 |
ZS0101H-500 | 500000 | 220 | 750 | 8 | 80 | 113.4 |
ZS0101H-600 | 600000 | 240 | 820 | 8 | 80 | 136.0 |
ZS0101H-700 | 700000 | 260 | 870 | 8 | 80 | 152.0 |
ZS0101H-800 | 800000 | 280 | 930 | 9 | 80 | 175.0 |
ZS0101H-900 | 900000 | 300 | 990 | 9 | 80 | 199.0 |
ZS0101H-1000 | 1000000 | 320 | 10500 | 9 | 80 | 222.0 |
About Us
Jiangsu Gostern Rigging Co., Ltd. is a professional manufacturer integrating research, development, and production which specialize in rigging products for more than 18 years.

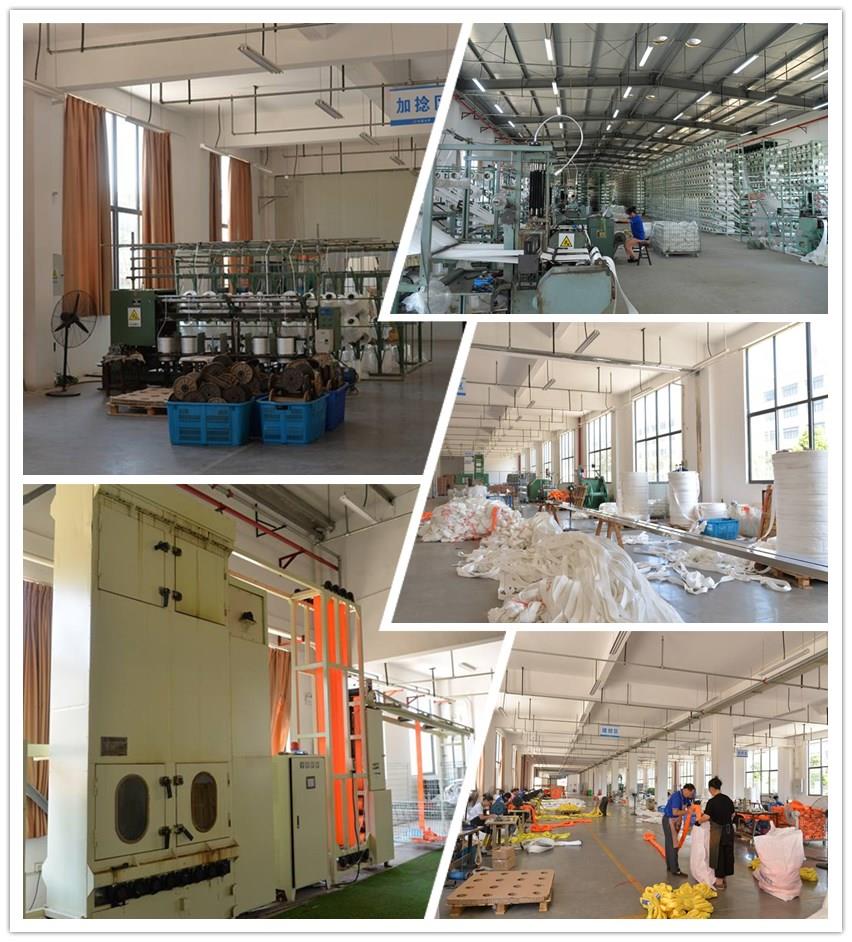

And we have four big workshops, webbing slings workshop, steel wire ropes workshop, lifting structures workshop, lifting chain workshop. Our products are widely used in metallurgy, machinery, railway, petrochemical, port, electricity, automotive, aviation, construction, and other fields.
Packaging and delivery
Carton and pallet packaging is recommended for most products, we will calculate the most economical and reasonable packaging method for you. And custom designs are acceptable.

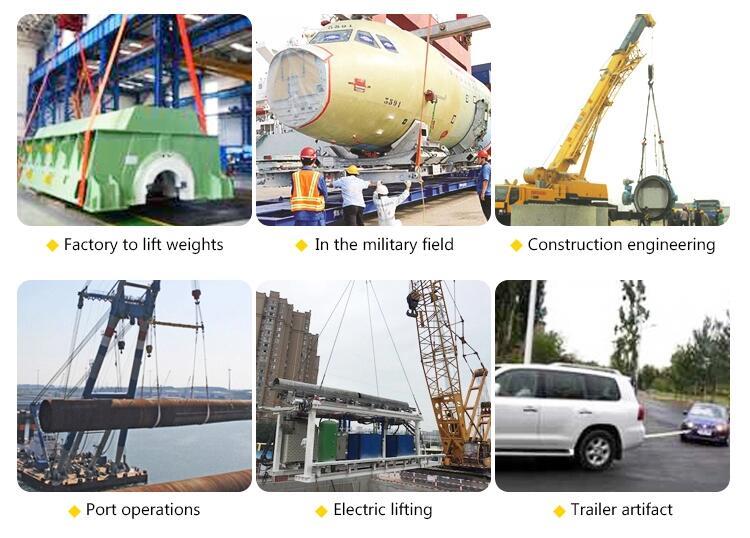

Application
Why Choose Us
1. Experienced manufacturer.
2. Advanced equipment.
3. Professional engineers, skilled technicians.
4. The factory sells directly, sufficient supplies and prompt delivery are guaranteed.
5. Warm customer service and technical support.
6. We're always looking to save our customers money wherever we can.
Certificates
We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.
FAQ
1. Q: What’s your MOQ?
A:1pc.
2. Q: What’s your package?
A: carton or pallet
3. Q: Is your product customized?
A: Yes, because of the different working conditions, all our products are customized depending on detail requirements!
4. Q: What’s the information should I provide when inquiry?
A: The more detailed information you provide, the faster we can prepare for you the accurate solution.
The information such as the lifting capacity, length, safety factor, or other specials you give us will be more appreciated.
5. Q: Manufacturer or trading company?
A: We make our own polyester webbing and buy accessories nearby, then do the assembling and packing.
For metal parts and many other products on our web, usually, we could get you lower-than-market-average offers
6. Q: OEM service?
A: Yes you're only expected to provide LOGO files and design files for the box.
7. Q: Sample/trial order available?
A: Samples can be provided, usually free if the item is cheap, you're expected to pay for express.
YES for trial orders, however the more you buy, the less you pay for each unit.
8. Q: Lead time?
A: Usually 8~30 days after your order is confirmed.
9. Q: Quality control?
A: We have strict tests and QC systems to guarantee high quality. you'll get a clear QC report before your every shipment, the report includes pictures, sizes, packing, testing, improving suggestions, etc.
10. Q: How to place an order?
A: After we firm up all details, You'll get a PI with product info and our bank account on it, and the production starts after the deposit arrives.
11. Q: What is the payment term?
A: T/T, L/C, Western Union.
Contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
