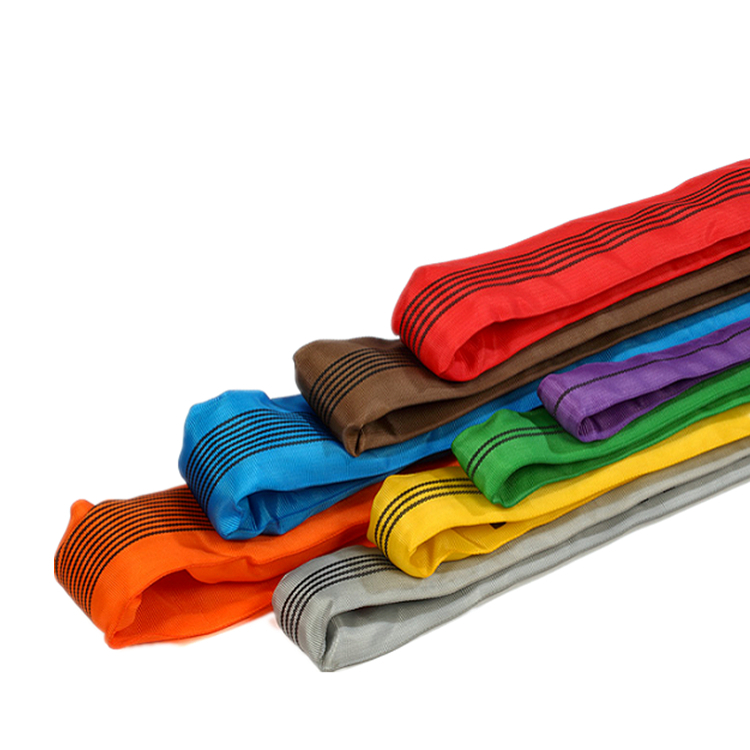

Technical Specifications of Our 1-10 Tons Endless Round Sling
The 1-10 Tons Endless Round Sling conforms to the standard EN 1492-2-2000, can be used in transportation, port operations, mechanical processing, construction, water and electricity installation, and object dispatching, etc.
Product Name | Round sling |
Material | 100% high tenacity polyester |
Width | 25-300mm |
Length | 1-30M |
W. L. L. | 1-30 TON |
Safety Factor | 5: 1, 6: 1, 7: 1, 8:1 |
Layer | 1, 2, ply |
Color | Purple, Green, Yellow, Grey, |
Standard | According EN1492-2 |
Working temperature | -40ºC~100ºC |
Advantage | Facile, soft, long service life, not electric conduction, |
Using the imported webbing loom to achieve high breaking strength | |
Using the imported high speed air operated sewing machine to sew webbing sling completeky | |
Wide using range |
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4 | 80 | 25.0 |
ZS0101H-200 | 200000 | 120 | 450 | 5 | 80 | 64.0 |
ZS0101H-300 | 300000 | 160 | 525 | 5 | 80 | 79.0 |
Packaging and delivery
Carton and pallet packaging is recommended for most products, we will calculate the most economical and reasonable packaging method for you. And custom designs are acceptable.
Product Application
