Product introduction

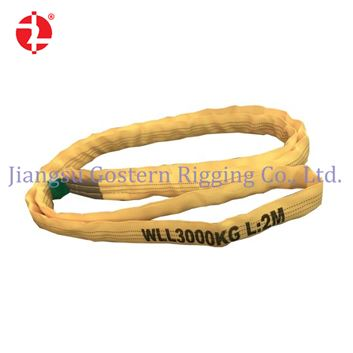

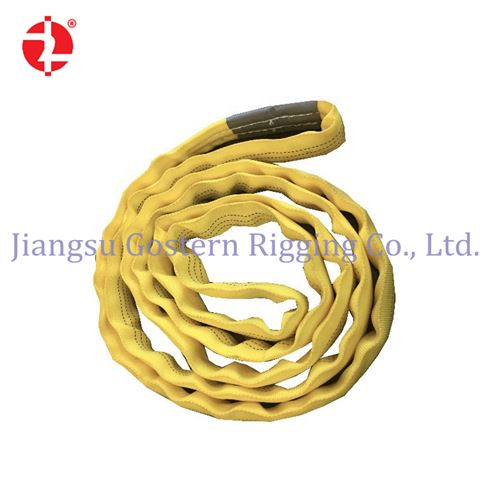

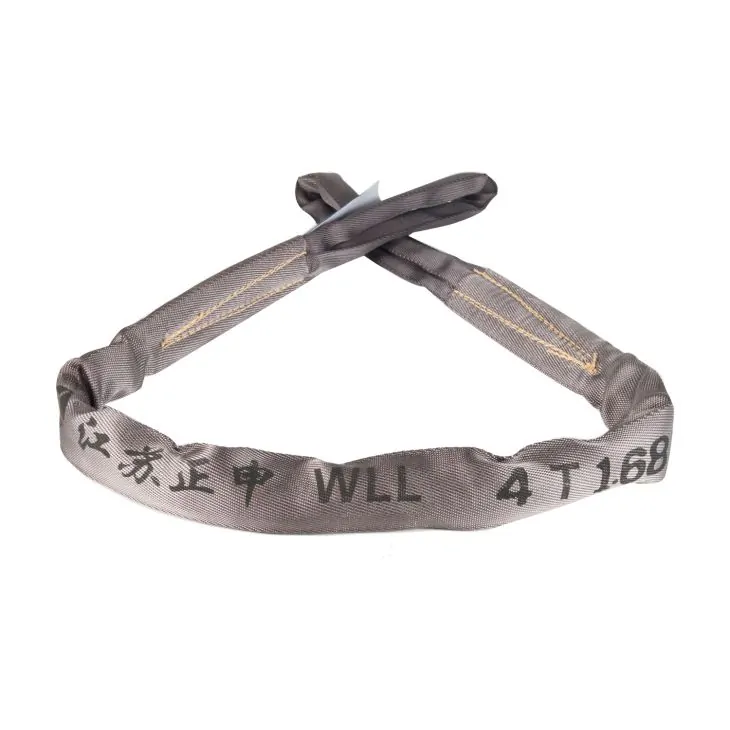

The polyester lifting round sling conforms to the standard EN 1492-2-2000, can be used in transportation, port operations, mechanical processing, construction, water and electricity installation, and object dispatching, etc.
Material | High strength polyester (100%PES) |
Type | Round sling |
Body Diameter | Measure the core polyester yarn |
Length | from 0.5m to 80m up, can be customized as required |
W.L.L. | From 0.5 Ton to 1000 Ton |
Safety Factor | 4:1,5:1,6:1,7:1,8:1 |
Color | According to EN standard or as required |
Standard | ISO4878, EN1492-2-2000, JB/T8521. |
Sample Delivery Time | Within 7 days |
OEM&ODM | OK |
Product specifications
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.80 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.10 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.20 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.20 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.80 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.20 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.50 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.80 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13.0 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
Packaging and delivery
Carton and pallet packaging is recommended for most products, we will calculate the most economical and reasonable packaging method for you. And custom designs are acceptable.
Product Application
Type: Round sling.
Standard: ISO4878, EN1492-2-2000, JB/T8521.
Material: High strength polyester (100%PES).
Safety factor: 6:1 or 8:1.
Length: 0.5m-80m.
Working load: 0.5T-1000T.
Supply ability: 40000pcs per month.
Packaging: Shrink film + carton + pallet.

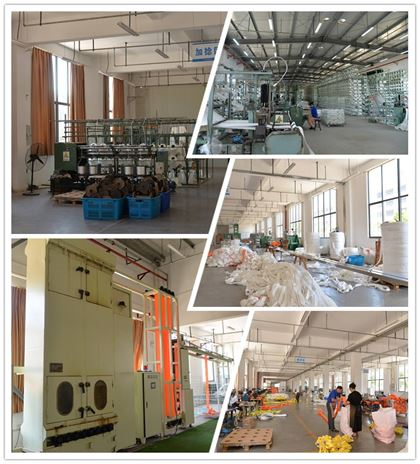

Company profile
We are professional Manufacturer and Exporter of many kinds of sling s inculding :
EB webbing sling, EA round sling, EB-A webbing sling, EB-B Webbing sling ratchet straps, fittings, double J hook, single J hook webbing sling Minimum reaking Load from 6ton to 180tons.ratchet straps . fitings are base on the needed (hook or tri-angle ring) ood quality, good external appearance make our products good seller in International Market .
We mainly export : USA, European Countries, Middle east, Southeast Asian, Australia, Japan, Korean, Singapore, Africa countries.
Sincerely hope to establish long and stable business cooperations with your honourable Corporation.
Free samples can post you for check and test if needed .
