Product introduction
Textile slings with high strength polyester industrial filament (100% PES),Nylon .
Polypropylene fiber as raw materials are widely used for various occations of hoisting.
1. 100% high tenacity polyester of out sleeve and inner core;
2. With two ply woven heavy duty out sleeve;
3. Low elongation
4. Each stripe is equal to 1 ton capacity
5. Safety factor available: 5:1, 6:1, 7:1
6. Capcity from 1ton to 10ton
7. Length available: 1m to 10m
8. according to EN1492-1
9. Certificate: GS. CE.
10. Packing: PE shrink wrapped, carton and pallet
round sling is widely used in warehouse automobile manufacturing, foundry machinery, transportation equipment and etc, to carry out lifting, supporting of mechanical products.

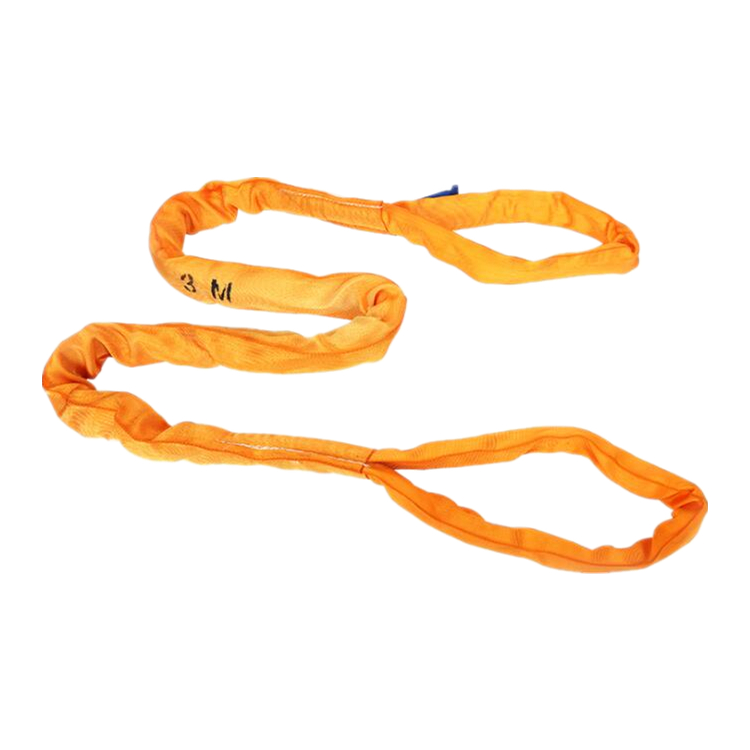

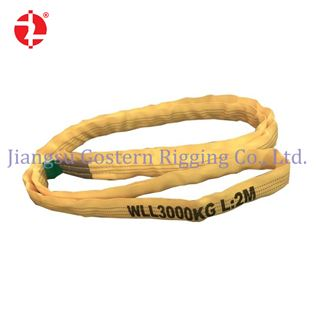

Round Webbing Sling
Round Webbing Sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.
Product specification
WLL | Thickness | Width | Min | Max | Weight | |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |
Product feature and application
Product details
Product qualification
We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

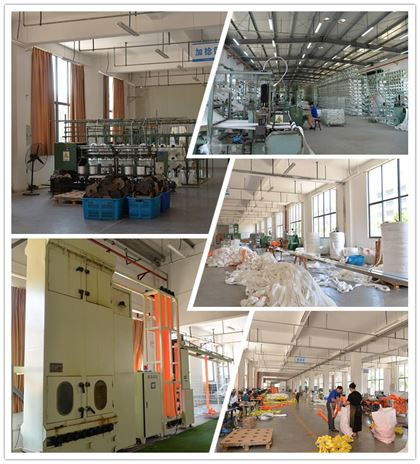

Production,shipping and serving
Shield cargo Ltd. an ISO 9001 certified firm Lloyd's Register, specializes in the field of:
Maintenance method:
1.Don't drag when moving webbing sling and goods,do not make the knot.
2.Shouldn't make any possible damage to saft ring.
3.In undertaking,which would be playing screw.
4.Shouldn't be used without a jacket straps.
5.Should avoid soft ring opening angle more than 20 degrees.
6.webbing sling should be kept in the dark and no ultraviolet radiation conditions.
7.Webbing sling shouldn't be kept in open flame near side or other heat sources.
8.Webbing sling should be placed at the place with enough light when you don't use.
