Product introduction
Textile slings with high strength polyester industrial filament (100% PES),Nylon .
Polypropylene fiber as raw materials are widely used for various occations of hoisting.
1. 100% high tenacity polyester of out sleeve and inner core;
2. With two ply woven heavy duty out sleeve;
3. Low elongation
4. Each stripe is equal to 1 ton capacity
5. Safety factor available: 5:1, 6:1, 7:1
6. Capcity from 1ton to 10ton
7. Length available: 1m to 10m
8. according to EN1492-1
9. Certificate: GS. CE.
10. Packing: PE shrink wrapped, carton and pallet
*Highly flexible and adaptable to given shapes, especially suitable for loading round objects |
*Anti-abrasion and anti-incision protection sleeve can be attached |
*Heat resistant up to 100°C |
*High strength/weight ratio |
*Usage life last longer |
*Protection against cargo surface damage |
*Safety factor: 5:1, 6:1, 7:1 |
Product specification
With two eyes at both ends
Art.No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101K-1 | 1000 | 15 | 50 | 0.5 | 80 | 0.47 |
ZS0101K-2 | 2000 | 16 | 60 | 0.5 | 80 | 0.6 |
ZS0101K-3 | 3000 | 18 | 70 | 0.5 | 80 | 0.82 |
ZS0101K-4 | 4000 | 20 | 75 | 0.5 | 80 | 1.2 |
ZS0101K-5 | 5000 | 25 | 80 | 0.5 | 80 | 1.47 |
ZS0101K-6 | 6000 | 27 | 90 | 1 | 80 | 1.7 |
ZS0101K-8 | 8000 | 28 | 100 | 1 | 80 | 2.2 |
ZS0101K-10 | 10000 | 29 | 110 | 2 | 80 | 3 |
ZS0101K-12 | 12000 | 30 | 125 | 2 | 80 | 3.4 |
ZS0101K-15 | 15000 | 31 | 150 | 2 | 80 | 4 |
ZS0101K-15 | 20000 | 32 | 180 | 2.5 | 80 | 5.6 |
ZS0101K-25 | 25000 | 34 | 200 | 2.5 | 80 | 6.8 |
ZS0101K-30 | 30000 | 68 | 220 | 2.5 | 80 | 8.2 |
ZS0101K-40 | 40000 | 75 | 250 | 2.5 | 80 | 10.9 |
ZS0101K-50 | 50000 | 86 | 270 | 2.5 | 80 | 13.8 |
ZS0101K-60 | 60000 | 126 | 280 | 4 | 80 | 16.6 |

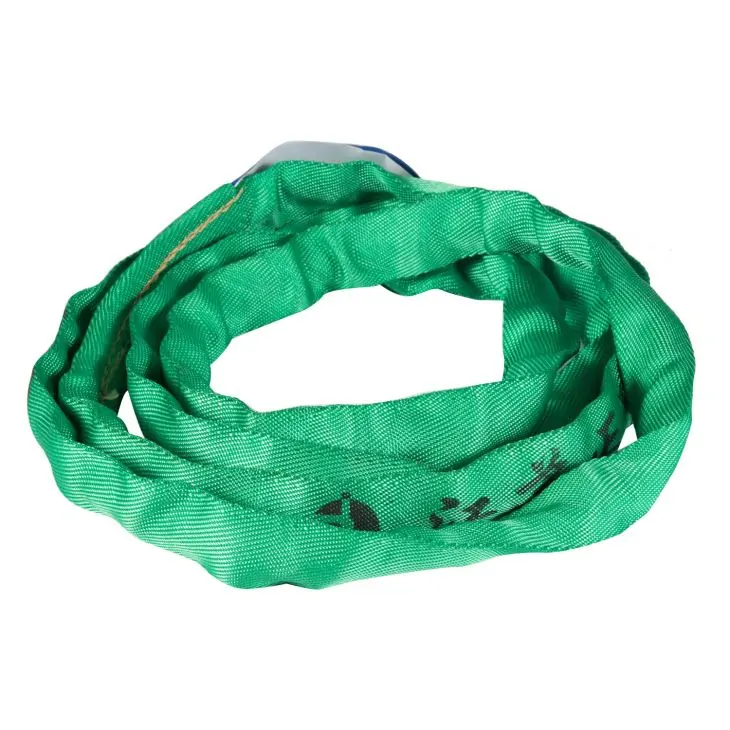

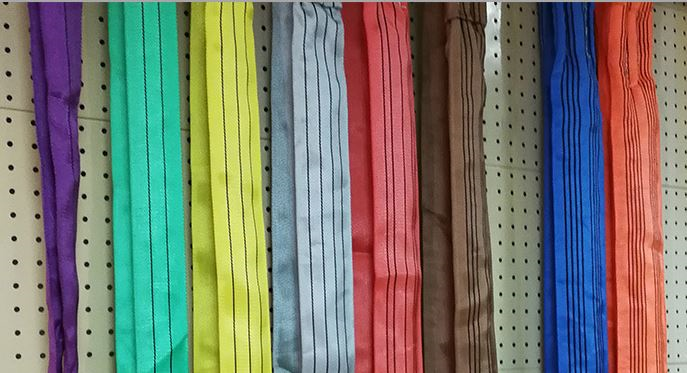

Endless sling
Model | Capacity WLL in kg | Webbing width in mm | Color |
WS1 | 1 000 | 30 | Purple |
WS2 | 2 000 | 60 | Green |
WS3 | 3 000 | 90 | Yellow |
WS4 | 4 000 | 120 | Grey |
WS5 | 5 000 | 150 | Red |
WS6 | 6 000 | 180 | Brown |
WS8 | 8 000 | 240 | Blue |
WS10 | 10 000 | 300 | Orange |

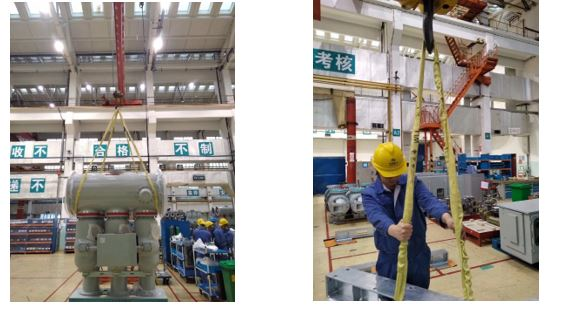

Product feature and application
Product details
Product qualification
We take certification very seriously, We have passed ISO9001: 2008 quality management system certification and SGS certification. In order to ensure the quality, our products undergo strict quality inspection in all production processes. Please be assured of our quality and products.
Production ,shipping and serving
Questions:
1.Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of THINKWELL brand in the market now. For the details please contact me.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
4. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
5. How about the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
6. What's benefit will you bring?
Your client satisfied on the quality.
