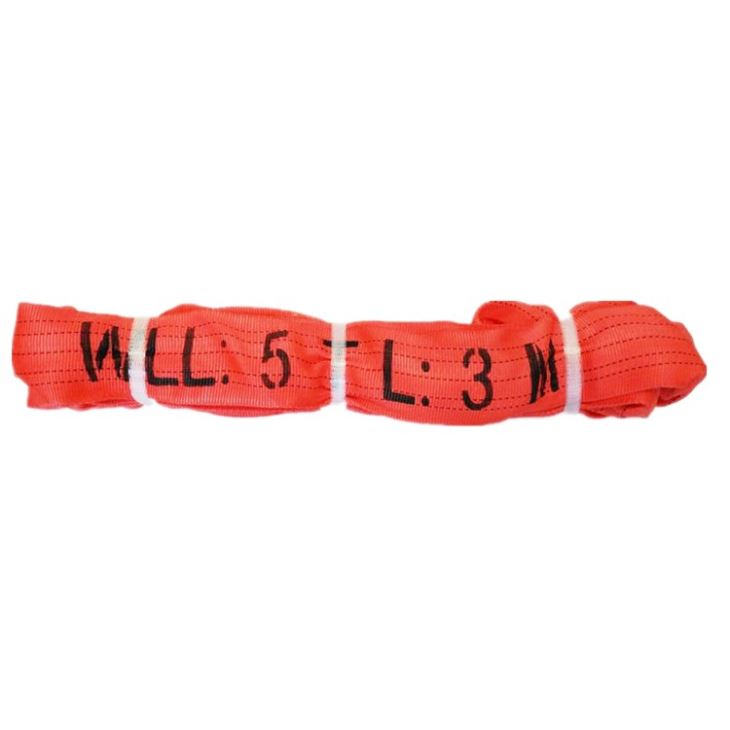

The soft round webbing sling is a strong polyester blend, which is a lighter option than other materials, like rope and chain.
Specifications
Standard: ISO4878, EN1492-2,JB/T8521
The products comply with CE, GS safety requirements
Material: High strength polyester (100%PES)
Safety factor: 6:1 or 8:1
Color: Customized
Length: 0.5m-80m
Working load: 1T-1000T
The flexible round endless soft sling operating temperature: -40℃-100℃

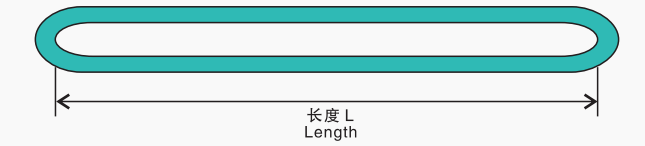

Size Information
Art. No. | WLL | Thickness | Width | Min | Max | Weight |
(kg) | (mm) | (mm) | (m) | (m) | (kg/m) | |
ZS0101H-1 | 1000 | 6 | 40 | 0.5 | 80 | 0.4 |
ZS0101H-2 | 2000 | 7 | 50 | 0.5 | 80 | 0.61 |
ZS0101H-3 | 3000 | 8 | 60 | 0.5 | 80 | 0.75 |
ZS0101H-4 | 4000 | 9 | 70 | 0.5 | 80 | 0.8 |
ZS0101H-5 | 5000 | 11 | 75 | 0.5 | 80 | 0.84 |
ZS0101H-6 | 6000 | 12 | 80 | 1 | 80 | 0.98 |
ZS0101H-8 | 8000 | 13 | 90 | 1 | 80 | 1.1 |
ZS0101H-10 | 10000 | 15 | 100 | 2 | 80 | 2.2 |
ZS0101H-12 | 12000 | 16 | 110 | 2 | 80 | 3.2 |
ZS0101H-15 | 15000 | 18 | 125 | 2 | 80 | 3.8 |
ZS0101H-15 | 20000 | 20 | 150 | 2.5 | 80 | 5.2 |
ZS0101H-25 | 25000 | 24 | 180 | 2.5 | 80 | 6.5 |
ZS0101H-30 | 30000 | 32 | 200 | 2.5 | 80 | 7.8 |
ZS0101H-40 | 40000 | 40 | 200 | 2.5 | 80 | 10.4 |
ZS0101H-50 | 50000 | 45 | 220 | 2.5 | 80 | 13 |
ZS0101H-60 | 60000 | 65 | 220 | 4 | 80 | 15.6 |
ZS0101H-80 | 80000 | 70 | 260 | 4 | 80 | 20.8 |
ZS0101H-100 | 100000 | 80 | 290 | 4 | 80 | 25 |
ZS0101H-200 | 200000 | 120 | 450 | 5 | 80 | 64 |
ZS0101H-300 | 300000 | 160 | 525 | 5 | 80 | 79 |
ZS0101H-400 | 400000 | 200 | 670 | 5 | 80 | 95.5 |
ZS0101H-500 | 500000 | 220 | 750 | 8 | 80 | 113.4 |
ZS0101H-600 | 600000 | 240 | 820 | 8 | 80 | 136 |
ZS0101H-700 | 700000 | 260 | 870 | 8 | 80 | 152 |
ZS0101H-800 | 800000 | 280 | 930 | 9 | 80 | 175 |
ZS0101H-900 | 900000 | 300 | 990 | 9 | 80 | 199 |
ZS0101H-1000 | 1000000 | 320 | 10500 | 9 | 80 | 222 |

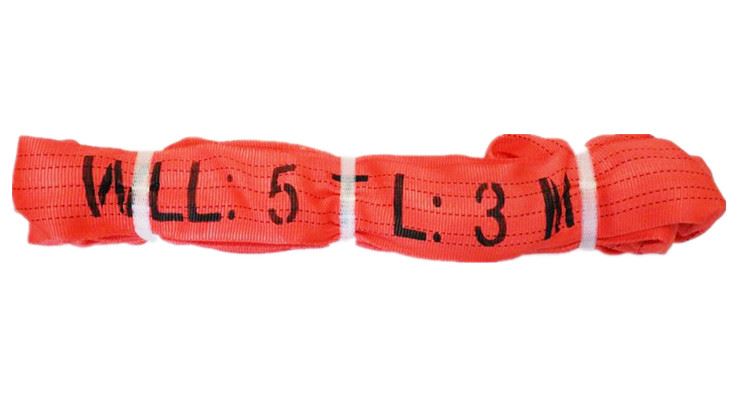

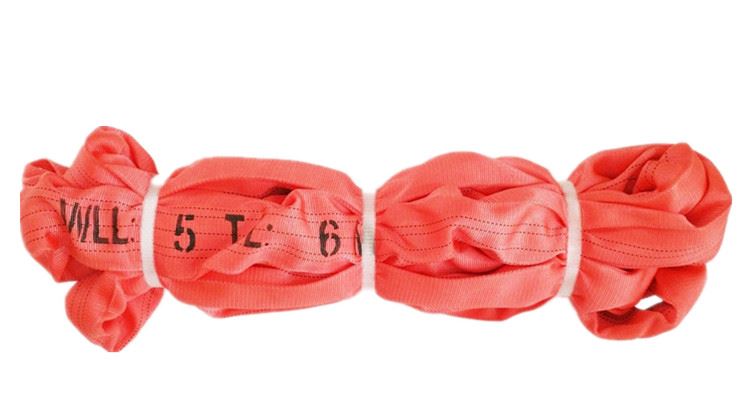

Details Images

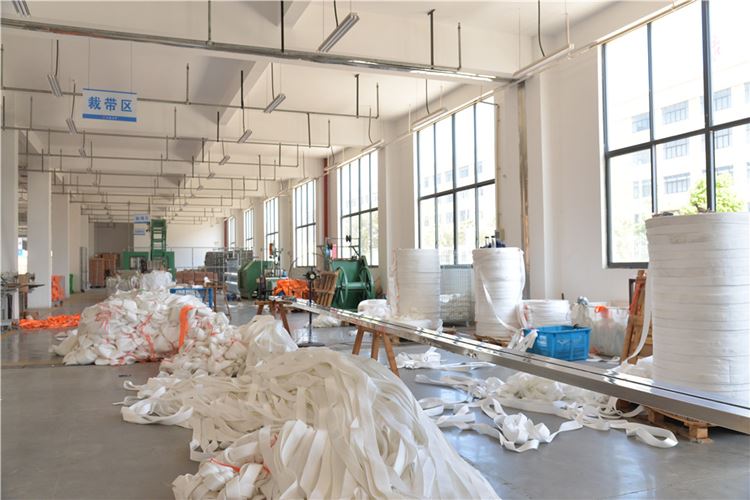

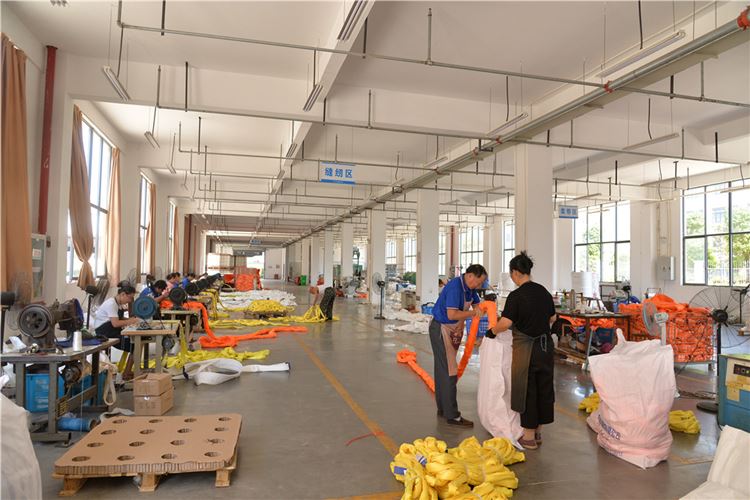

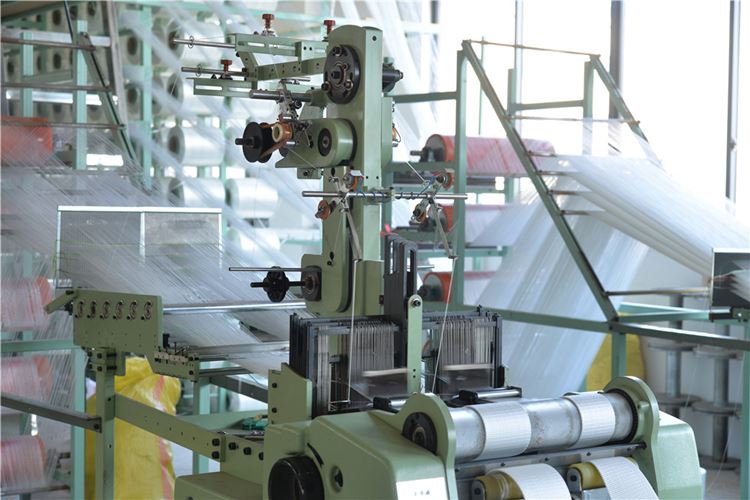

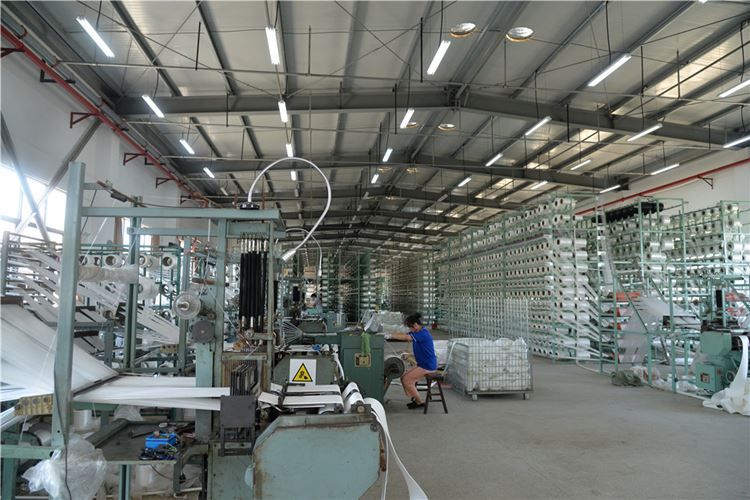

Company Profile
Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding, and other fields.
The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept.
