The round master rings are made from weldless, forged steel. The round lifting links are commonly used in many rigging scenarios, we can install them on slings and bridles as needed provided the Working Load Limit (clearly marked on each ring) is adhered to.
Specification:

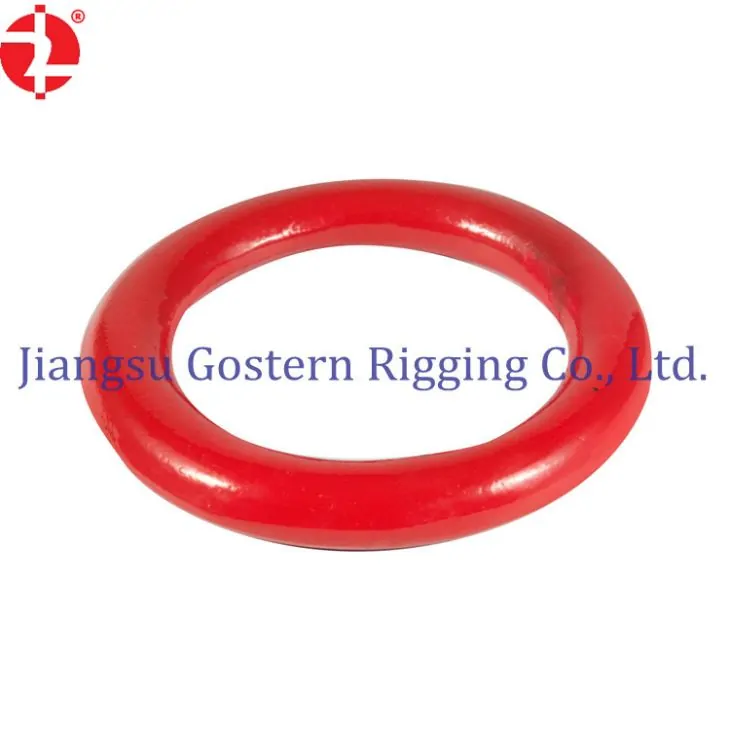

Weldless round master ring
Material: Carbon Steel, Alloy steel
Surface: Galvanized /self color/ color painted
Process: Forged, Quenched, and Tempered.
Packing: Carton and iron pallet
Safety ratio: 4 times

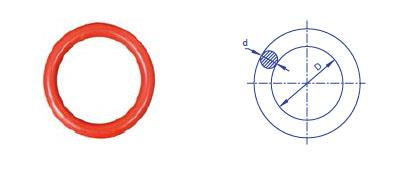

Round link
Model | WLL | d | D | weight |
t | mm | mm | kg | |
YH2 | 2 | 20 | 100 | 0.85 |
YH3 | 3 | 24 | 100 | 1.39 |
YH5 | 5 | 28 | 150 | 2.71 |
YH8 | 8 | 33 | 175 | 4.41 |
YH10 | 10 | 38 | 225 | 7.4 |
YH16 | 16 | 45 | 225 | 10.65 |
YH20 | 20 | 52 | 250 | 15.9 |
YH25 | 25 | 58 | 315 | 24.43 |

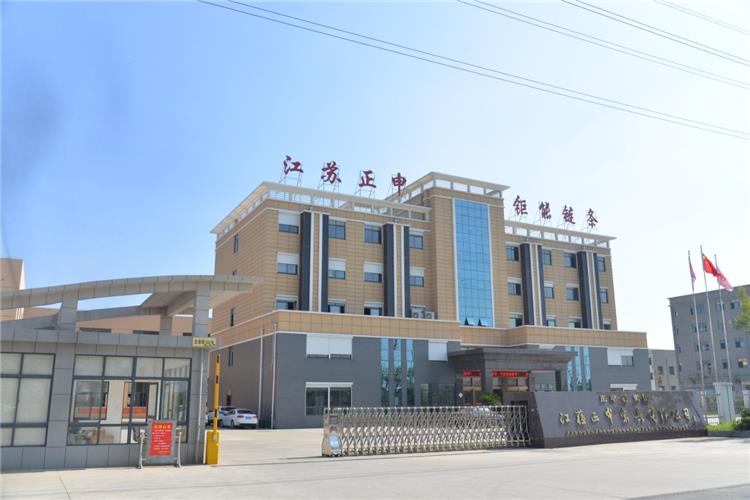

Factory
We are a professional manufacturer from Jiangsu, China. Our main products: various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. all parameters can be customized.
Certificate
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
