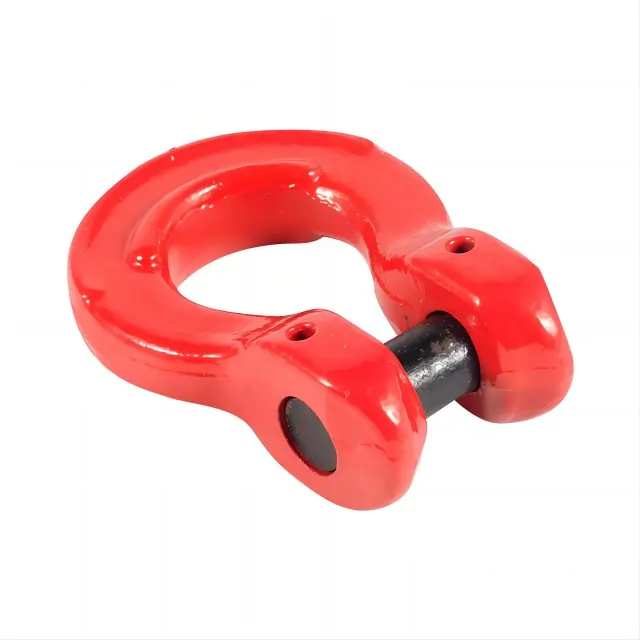

G80 Drop Forged Omega Connecting Link for Lifting Chain

G80 Omega Connecting Link is drop forged with high quality alloy steel. Each Omega Link is marked with WLL, size, brand etc.
WLL:
1.12 Ton
2 Ton
3.15 Ton
5.3 Ton
8 Ton
12.5 Ton
Availability:
Quantity:
Inquire Add to Basket

  • ZS0805

  • Gostern Rigging

  • ZS080505

G80 Drop Forged Omega Connecting Link

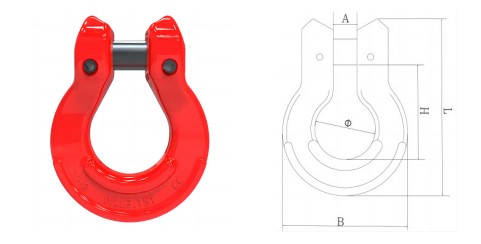

G80 Omega link-drawing


W.L.L. Chain Dia. Dimensions (mm) Weight
(Ton) mm A B H L Φ (kg)
1.12 6 8 41 25.5 52 20.5 0.1
2 7/8 10 52 34 68 23.5 0.2
3.15 10 12 62 40.5 81 31.5 0.4
5.3 13 15.5 81 54 108 41 0.8
8 16 19 99 64 126 47.5 1.5
12.5 20 23 118 75.6 152 58 2.1


Product Name
Omega Connecting Link
Material
Alloy steel
Grade
G80
Process
Drop forged
Finish
Powder coating
