Specification:
Material: High quality alloy steel
Process: Forging, heat treatment
Safety ratio: 4 times
Packing: Carton and iron pallet

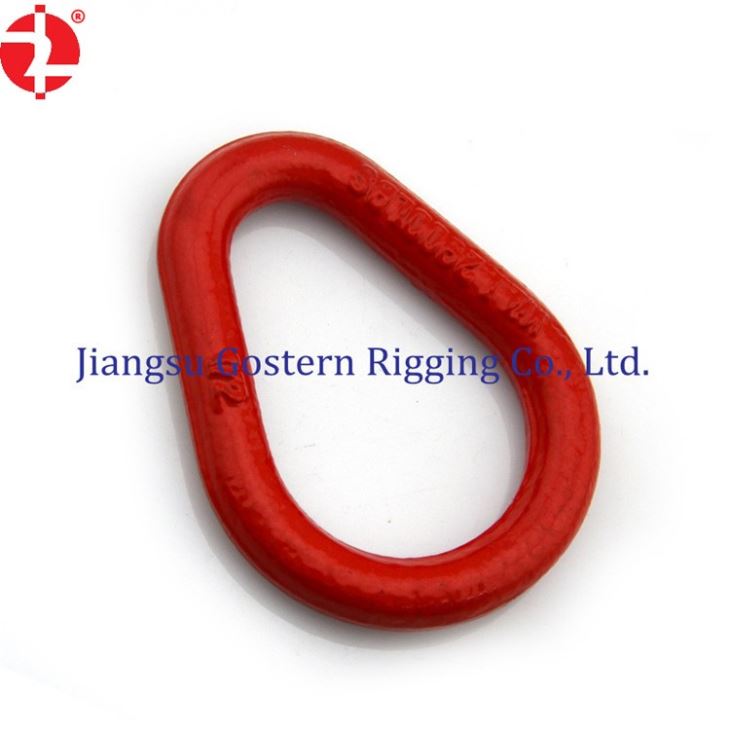

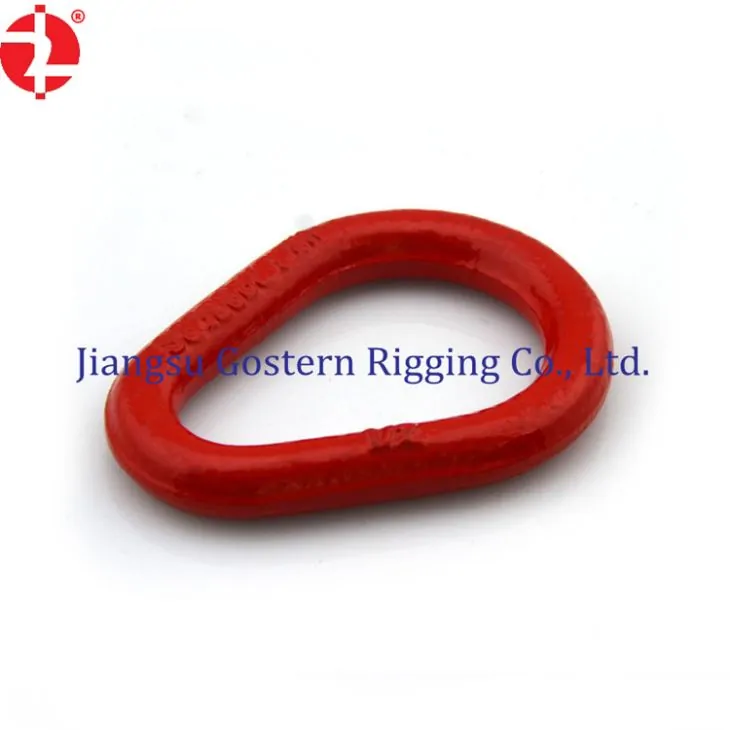

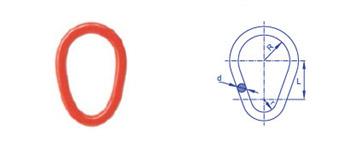

Pear-shaped link
Model | WLL | d | r | R | L | Weight |
t | mm | mm | mm | mm | kg | |
LXH3 | 3 | 20 | 20 | 60 | 85 | 1.25 |
LXH5 | 5 | 30 | 25 | 65 | 93 | 3.24 |
LXH8 | 8 | 33 | 30 | 75 | 100 | 4.42 |
LXH10 | 10 | 38 | 50 | 80 | 146 | 7.4 |
LXH16 | 16 | 45 | 50 | 80 | 146 | 10.65 |

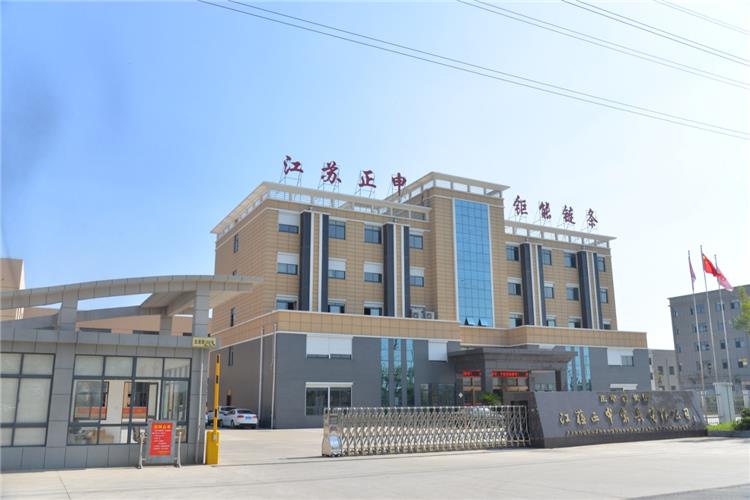

Factory
Jiangsu Gostern Rigging Co., Ltd. is a professional manufacturer integrating research, development, and production. The main products are various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. Our products are widely used in metallurgy, machinery, railway, petrochemical, port, electricity, automotive, aviation, construction, and other fields.
Certificate
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
