Specification:

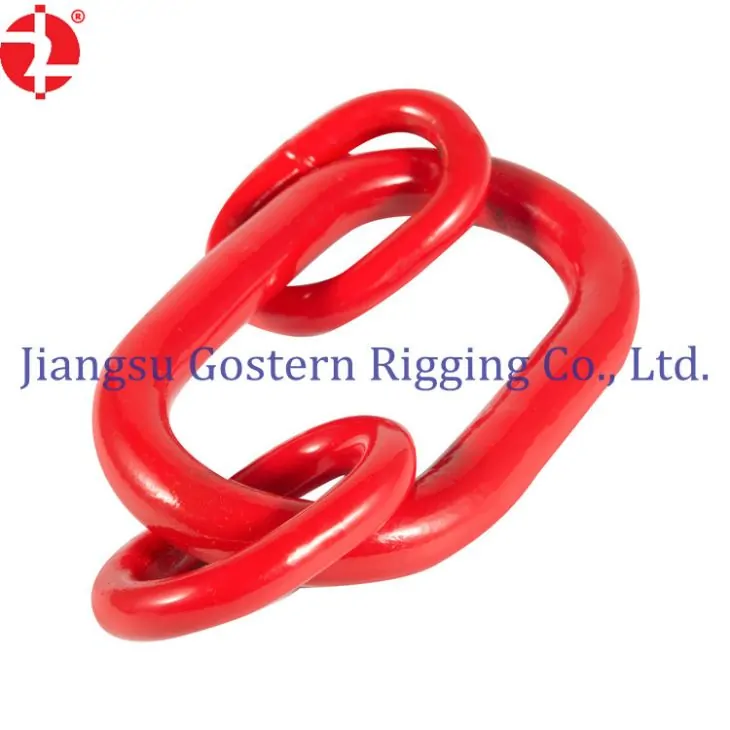

Master link assembly
1. Material: Alloy Steel
2.Process: Forging, Heat treatment
3.Surface: Powder Coated, Hot Dipped Galvanized, Electro Galvanized, color painted
4.Usage: Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
5.Safety ratio: 4 times

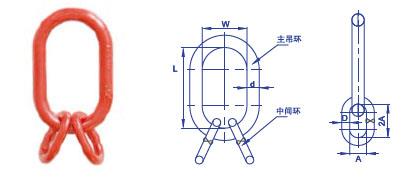

Master link assembly (G63 European combined link)
Model | WLL | WLL of Master | WLL of Intermediate | Master Link | Intermediate Link | Weight | |||
t | t | t | d | W | L | D | A | kg | |
ZDH0.5 | 0.5 | 0.5 | 0.36 | 12 | 50 | 100 | 8 | 20 | 0.36 |
ZDH1 | 1 | 1 | 0.75 | 14 | 65 | 130 | 10 | 25 | 0.66 |
ZDH2 | 2 | 2 | 1.4 | 16 | 65 | 130 | 12 | 25 | 0.91 |
ZDH3 | 3 | 3 | 2.2 | 20 | 80 | 150 | 14 | 30 | 1.6 |
ZDH5 | 5 | 5 | 3.5 | 24 | 90 | 160 | 18 | 40 | 2.77 |
ZDH8 | 8 | 8 | 6.4 | 28 | 100 | 190 | 22 | 40 | 4.45 |
ZDH10 | 10 | 10 | 7 | 32 | 110 | 200 | 26 | 50 | 6.75 |
ZDH12 | 12 | 12 | 8.4 | 34 | 120 | 230 | 28 | 50 | 8.31 |
ZDH16 | 16 | 16 | 11.2 | 38 | 135 | 250 | 30 | 60 | 11.38 |
ZDH20 | 20 | 20 | 14 | 42 | 140 | 270 | 35 | 70 | 16.04 |
ZDH25 | 25 | 25 | 17.5 | 46 | 160 | 310 | 38 | 70 | 20.85 |
ZDH30 | 30 | 30 | 21 | 52 | 180 | 330 | 42 | 80 | 28.94 |
ZDH40 | 40 | 40 | 28 | 56 | 180 | 330 | 45 | 80 | 33.92 |
ZDH50 | 50 | 50 | 35 | 62 | 210 | 410 | 50 | 100 | 50.41 |
ZDH63 | 63 | 63 | 44 | 68 | 210 | 410 | 55 | 100 | 61.87 |
ZDH80 | 80 | 80 | 56 | 76 | 240 | 410 | 65 | 130 | 92.82 |
ZDH100 | 100 | 100 | 70 | 84 | 240 | 460 | 70 | 130 | 117.1 |
ZDH120 | 120 | 120 | 85 | 90 | 254 | 508 | 75 | 140 | 145.5 |
Master link assembly (G80 European combined link)
Model | WLL | Specifications(mm) | Weight | ||||||
t | D | P | L | D1 | P1 | L1 | SxX | kg | |
ACH6 | 2.36 | 19 | 135 | 75 | 13 | 60 | 38 | 8X25 | 1.315 |
ACH7 | 3.15 | 19 | 135 | 75 | 13 | 60 | 38 | 8X25 | 1.315 |
ACH8 | 4.25 | 23 | 160 | 90 | 16 | 70 | 34 | 8X25 | 2.32 |
ACH10 | 6.7 | 27 | 180 | 100 | 18 | 85 | 40 | 11.5X35 | 3.52 |
ACH13 | 11.2 | 33 | 200 | 110 | 23 | 115 | 50 | 14X35 | 6.26 |
ACH16 | 17 | 36 | 260 | 140 | 27 | 140 | 65 | 18X46 | 9.56 |
ACH18 | 21.2 | 45 | 340 | 180 | 33 | 150 | 70 | -- | 18.92 |
ACH20 | 26.5 | 50 | 350 | 190 | 33 | 150 | 70 | -- | 22.65 |
ACH22 | 31.5 | 50 | 350 | 190 | 36 | 170 | 75 | -- | 25.19 |
ACH26 | 45 | 60 | 400 | 200 | 40 | 170 | 80 | -- | 36.01 |
ACH32 | 67 | 70 | 460 | 250 | 50 | 200 | 100 | -- | 64.4 |

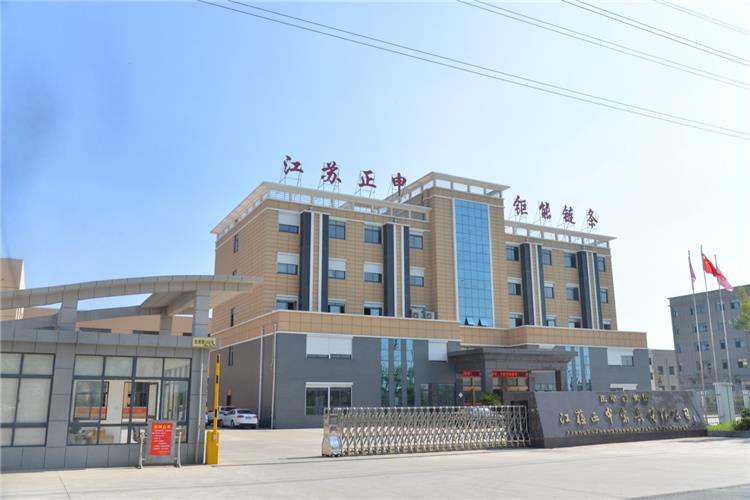

Factory
We are a professional manufacturer from Jiangsu, China. Our main products: various types of steel wire ropes, wire rope slings, nylon rope slings, special webbing slings, safety nets, safety belts, lifting chains, lifting beam, lifting clamp, etc. all parameters can be customized.
Certificate
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
