Specification:
1.Material: High-quality alloy steel
2.Process: Forging, Heat treatment
3.Surface: Hot Dipped Galvanized, Electro Galvanized, color painted
4.Safety ratio: 4 times
5.Usage: Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings

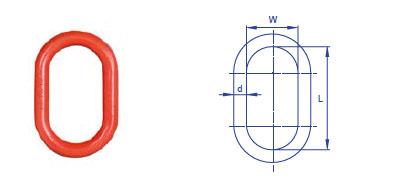

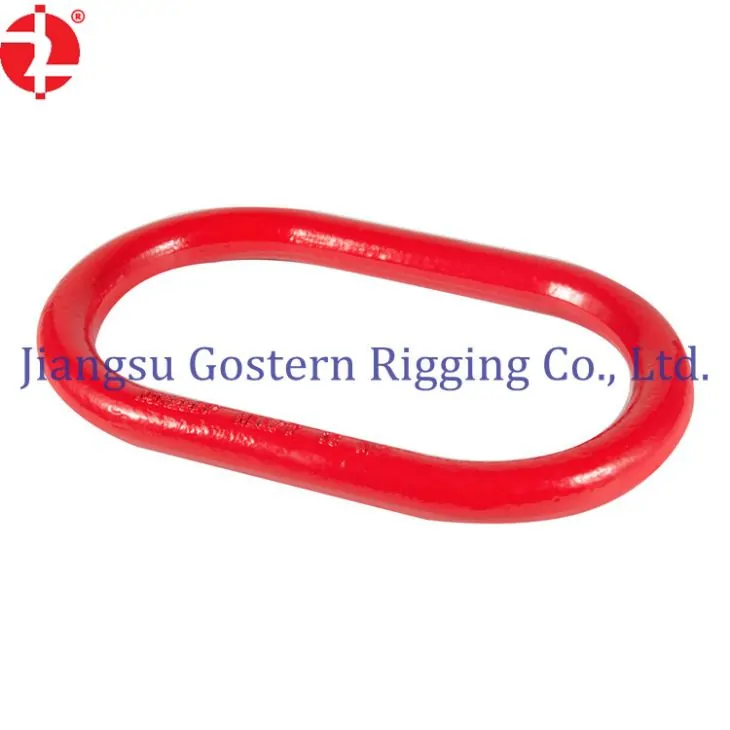

Steel Chain Master Link For Lifting
Model | WLL | D | W | L | Weight |
t | mm | mm | mm | kg | |
CH2 | 2 | 16 | 65 | 130 | 0.61 |
CH3 | 3 | 20 | 80 | 150 | 1.12 |
CH5 | 5 | 24 | 90 | 160 | 1.77 |
CH8 | 8 | 28 | 100 | 190 | 2.81 |
CH10 | 10 | 32 | 110 | 200 | 3.95 |
CH12 | 12 | 34 | 120 | 230 | 5.01 |
CH16 | 16 | 38 | 135 | 250 | 6.88 |
CH20 | 20 | 42 | 140 | 270 | 9.04 |
CH25 | 25 | 46 | 160 | 310 | 12.35 |
CH30 | 30 | 52 | 180 | 330 | 17.14 |
CH40 | 40 | 56 | 180 | 330 | 20.12 |
CH50 | 50 | 62 | 210 | 410 | 29.71 |
CH63 | 63 | 68 | 210 | 410 | 36.27 |
CH80 | 80 | 76 | 240 | 410 | 47.42 |
CH100 | 100 | 84 | 240 | 460 | 63.37 |
CH120 | 120 | 90 | 254 | 508 | 79.27 |

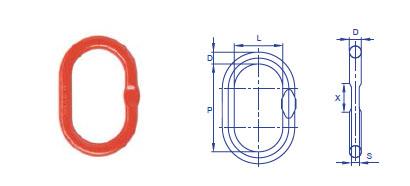

European long master link
Model | WLL(t) | D(mm) | P(mm) | L(mm) | SxX(mm) | Weight(kg) |
ICH7 | 106 | 13 | 110 | 60 | 8x25 | 0.34 |
ICH8 | 2.12 | 16 | 110 | 60 | 8x25 | 0.53 |
ICH10 | 3.15 | 19 | 135 | 75 | 8x35 | 0.915 |
ICH13 | 5.3 | 23 | 160 | 90 | 11.5x35 | 1.65 |
ICH16 | 8 | 27 | 180 | 100 | 14x46 | 2.46 |
ICH18 | 11.2 | 33 | 200 | 110 | 18x46 | 4.14 |
ICH20 | 14 | 36 | 260 | 140 | 6.22 | |
ICH22 | 17 | 40 | 300 | 160 | 8.95 | |
ICH26 | 21.2 | 45 | 340 | 180 | 12.82 | |
ICH32 | 31.5 | 50 | 350 | 190 | 16.55 | |
ICH36 | 45 | 60 | 400 | 200 | 27.01 |
Certificate
