ZS1210
Gostern Rigging
ZS121021

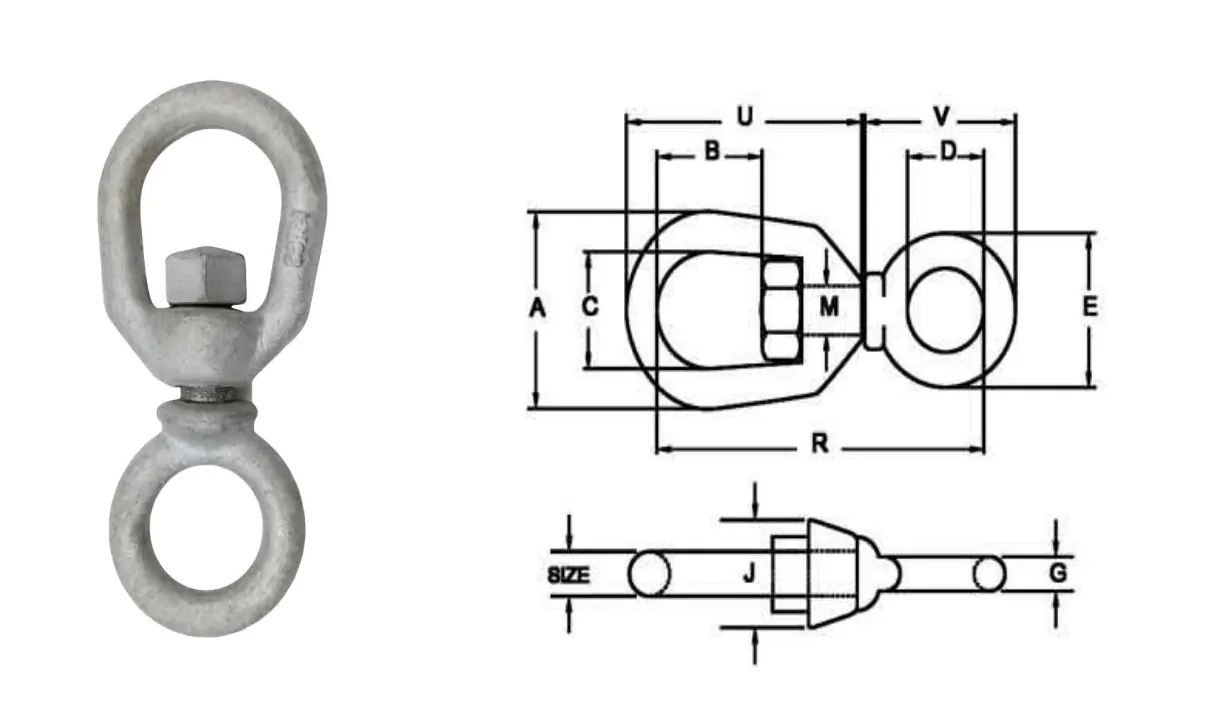

G401 Chain Swivel
| SIZE | WLL | DIMENSIONS (mm) | WEIGHT | ||||||||||
| (inch) | (lbs) | A | B | C | D | E | G | J | M | R | U | V | (lbs) |
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 | 0.13 |
| 5/16 | 1,250 | 1.63 | 0.81 | 1.00 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 | 0.25 |
| 3/8 | 2,250 | 2.00 | 0.94 | 1.25 | 1.00 | 1.75 | 0.38 | 1.00 | 0.50 | 3.44 | 2.50 | 1.88 | 0.54 |
| 1/2 | 3,600 | 2.50 | 1.31 | 1.50 | 1.25 | 2.25 | 0.50 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 | 1.12 |
| 5/8 | 5,200 | 3.00 | 1.56 | 1.75 | 1.50 | 2.75 | 0.62 | 1.50 | 0.75 | 5.13 | 3.88 | 2.94 | 2.09 |
| 3/4 | 7,200 | 3.50 | 1.75 | 2.00 | 1.75 | 3.25 | 1.88 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 | 3.09 |
G401 Chain Swivel
| SIZE | WLL | DIMENSIONS (mm) | WEIGHT | ||||||||||
| (inch) | (lbs) | A | B | C | D | E | G | J | M | R | U | V | (lbs) |
| 1/4 | 850 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 | 0.13 |
| 5/16 | 1,250 | 1.63 | 0.81 | 1.00 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 | 0.25 |
| 3/8 | 2,250 | 2.00 | 0.94 | 1.25 | 1.00 | 1.75 | 0.38 | 1.00 | 0.50 | 3.44 | 2.50 | 1.88 | 0.54 |
| 1/2 | 3,600 | 2.50 | 1.31 | 1.50 | 1.25 | 2.25 | 0.50 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 | 1.12 |
| 5/8 | 5,200 | 3.00 | 1.56 | 1.75 | 1.50 | 2.75 | 0.62 | 1.50 | 0.75 | 5.13 | 3.88 | 2.94 | 2.09 |
| 3/4 | 7,200 | 3.50 | 1.75 | 2.00 | 1.75 | 3.25 | 1.88 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 | 3.09 |
