ZS0801
Gostern Rigging
ZS080110

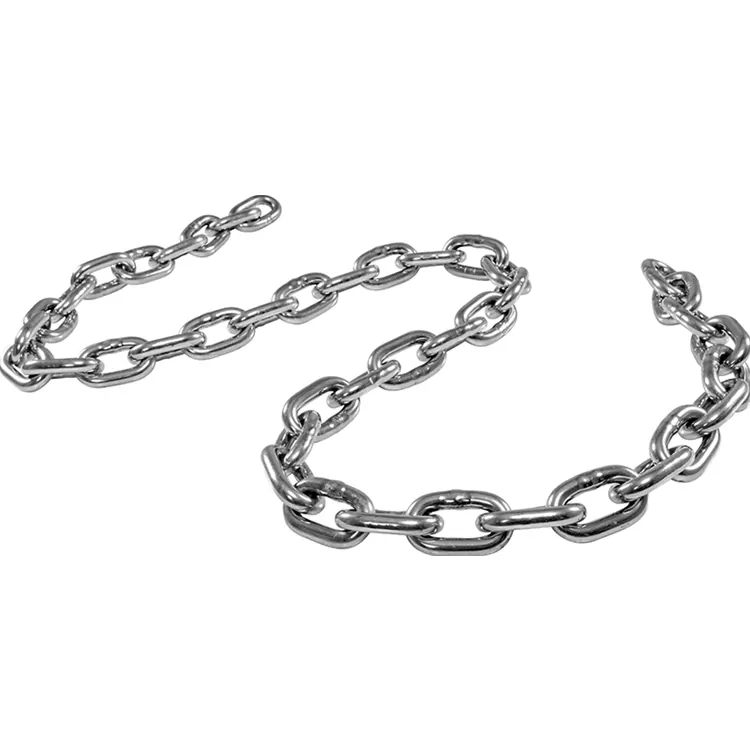

Gostern 316L Stainless Steel G50 Link Chain for Lifting is made of premium 316L stainless steel material with excellent corrosion resistance, high tensile strength and long service life. It is heat treated and strictly tested to meet EN818-2 G50 Lifting Chain and GB/T 20946 Stainless Steel Chain standards, with stable performance and safe load capacity.
This G50 Stainless Steel Lifting Chain features wear resistance, rust proof and durable structure, widely used as Marine Grade 316L Lifting Chain in shipyards and offshore platforms, as Corrosion Resistant G50 Chain in chemical plants and food processing, and as Heavy Duty G50 Hoist Chain for port and construction lifting. Available in 8mm 316L Stainless Steel Chain, 10mm, 13mm and other custom sizes, it is the ideal choice for 316L Stainless Steel G50 Link Chain and 316L Stainless Steel Tow Chain applications.
We support Custom Length G50 Link Chain, OEM, ODM and customized diameter services to meet different working demands.
Specifications
Standard : GB/T24816-2009
Safety factor: 4:1
Application range : lifting
Material: 316L
Grade: 50
Surface: bright
Produce Process of stainless steel link chain: drawings→ mold making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery
| Diameter (mm) | Pitch (mm) | Width (mm) | W.L.L. (T) | Weight (kg/m) | Test Load (T) | Min BF (T) | ||
| d | Tolerance | p | Min a | Max b | ||||
| 6 | ±0.2 | 18 | 7.8 | 22.2 | 0.8 | 0.78 | 1.6 | 3.2 |
| 7 | ±0.3 | 21 | 9.1 | 25.9 | 1.2 | 1.1 | 2.4 | 4.8 |
| 8 | ±0.3 | 24 | 10.4 | 29.6 | 1.6 | 1.4 | 3.2 | 6.4 |
| 9 | ±0.4 | 27 | 11.7 | 33.3 | 1.8 | 1.8 | 3.6 | 7.2 |
| 10 | ±0.4 | 30 | 13 | 37 | 2 | 2.2 | 4 | 8 |
| 12 | ±0.5 | 36 | 15.6 | 44.4 | 2.4 | 3.3 | 4.8 | 9.6 |
| 13 | ±0.5 | 39 | 16.9 | 48.1 | 3.3 | 3.8 | 6.6 | 13.2 |
| 14 | ±0.6 | 42 | 18.2 | 51.8 | 3.8 | 4.4 | 7.6 | 15.2 |
| 16 | ±0.6 | 48 | 20.8 | 59.2 | 5 | 5.7 | 10 | 20 |
| 18 | ±0.9 | 54 | 23.4 | 66.6 | 6.3 | 7.1 | 12.6 | 25.2 |
| 20 | ±1 | 60 | 26 | 74 | 7.8 | 9 | 15.6 | 31.2 |
| 22 | ±1.1 | 66 | 28.6 | 81.4 | 8.4 | 10.5 | 16.8 | 33.6 |
| 24 | ±1.2 | 72 | 31.2 | 88.8 | 9.6 | 12.5 | 19.2 | 38.4 |
| 26 | ±1.3 | 78 | 33.8 | 96.2 | 11.8 | 15.5 | 23.6 | 47.2 |
*Please never exceed the working load limit.
