Forged Lever Chain Load Binder for Cargo Control

Lever chain load binder, especially suitable for railway, highway, sea and water transport, binding and fastening of large cargo transport.
Size:
1/4"-5/16"
5/16"-3/8"
3/8"-1/2"
1/2"-5/8"
Availability:
Quantity:
Inquire Add to Basket

  • ZS0805

  • Gostern Rigging

  • ZS080504

Lever Chain Load Binder

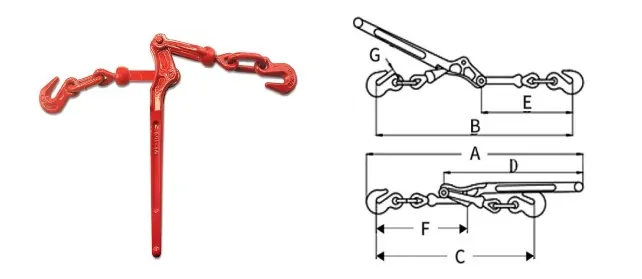

Lever Chain Binder drawing


Size
(inch)		 WLL
(lbs)		 MBL
(lbs)		 Weight
(lbs/pc)		 Handle
Length
(inch)		 Dimensions (inch)
A B C D E F G
1/4-5/16 2200 7800 3.52 11.42 18.50 17.30 14.17 11.42 8.27 8.07 0.35
5/16-3/8 5400 19000 8.37 15.43 25.20 23.20 19.49 15.55 11.22 11.22 0.51
3/8-1/2 9200 33000 12.11 17.24 28.50 26.38 22.05 17.64 12.99 12.20 0.59
1/2-5/8 13000 46000 19.70 21.00 33.86 30.12 25.87 20.87 14.37 14.37 0.74

*Please do not exceed Working Load Limits (W.L.L)

Product Name
Lever Chain Load Binder
Material
Carbon Steel
Finish
Powder Coating
Size
1/4"-5/16"
5/16"-3/8"
3/8"-1/2"
1/2"-5/8"
