Forged Ratchet Chain Load Binder

Ratchet chain load binder, especially suitable for railway, highway, sea and water transport, binding and fastening of large cargo transport.
Size:
1/4"-5/16"
5/16"-3/8"
3/8"-1/2"
1/2"-5/8"
Availability:
Quantity:
Inquire Add to Basket

  • ZS0805

  • Gostern Rigging

  • ZS080503

Ratchet Chain Load Binder

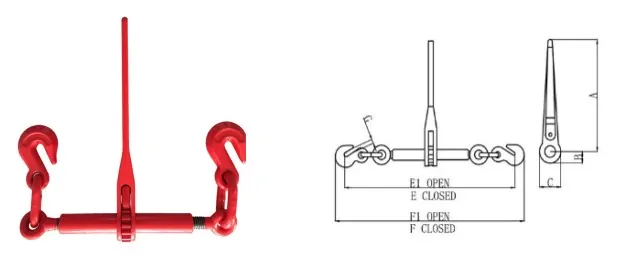

Ratchet Chain Binder-drawing

Size
(inch)		 WLL
(lbs)		 MBL
(lbs)		 Weight
(lbs/pc)		 Handle
Length
(inch)		 Dimensions (inch)
A B D E E1 F F1
1/4-5/16 2200 7800 3.52 7.16 7.16 0.89 1.77 16.22 21.26 17.79 0.35
5/16-3/8 5400 19000 10.50 13.42 13.92 1.30 2.60 22.64 30.64 25.24 0.51
3/8-1/2 9200 33000 12.90 13.92 13.92 1.30 2.60 24.13 32.13 27.04 0.59
1/2-5/8 13000 46000 14.38 13.92 13.92 1.30 2.60 26.45 34.45 30.07 0.74

*Please do not exceed Working Load Limits (W.L.L)

Product Name
Ratchet Chain Load Binder
Material
Carbon Steel
Finish
Powder Coating
Size
1/4"-5/16"
5/16"-3/8"
3/8"-1/2"
1/2"-5/8"
