G80 Twist Eye Choke Hook for Lifting Chain

The twist eye choke hook is forged with high quality alloy steel, it is solid structure, rust resistance, corrosion resistance and durable.
WLL:
2 Ton
3.2 Ton
5.4 Ton
8.2 Ton
10 Ton
15.3 Ton
21.2 Ton
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120527

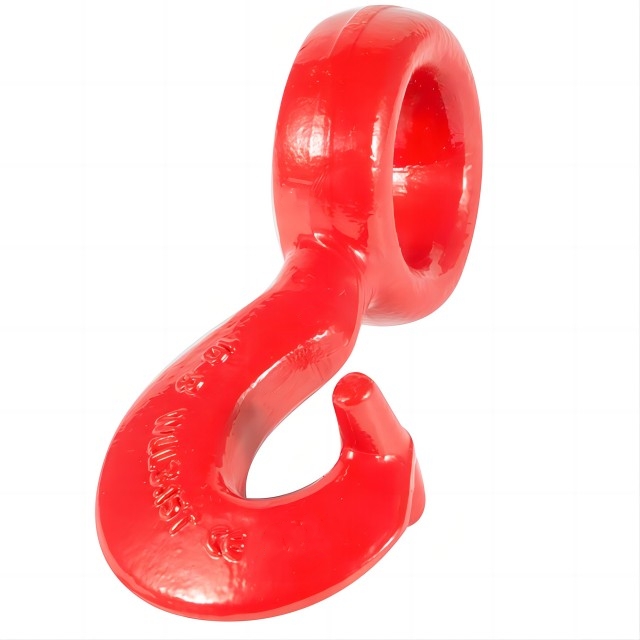

G80 twist eye choke hook

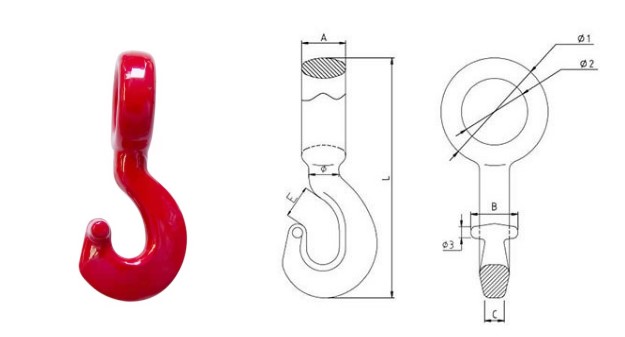

G80 twist eye choke hook DRAWING



WLL DIMENSIONS (mm) WEIGHT
(Ton) A B C Φ Φ1 Φ2 Φ3 E L (kg)
2 19 28 6.5 17 52 30.5 7.5 16 123 0.36
3.2 26 40 17.5 20 68 39 8 20 157 0.72
5.4 34 43 21 25 85 52 9.5 27 195 1.4
8.2 51 43.5 31 30 108 64 10.5 30 246 3.17
10 49.5 53 22 33.5 121 75 12 37 168 3.8
15.3 70 80 14 52 146 84 14 47 367 8.95
21.2 80 80 14 60 181 101 24.3 44 417 16.65



Product Name
G80 twist eye choke hook
Material
Alloy Steel
Finish
Powder Coating
Grade
G80
Safety Factor
4:1
Color
Customized
