ZS1205
Gostern Rigging
ZS120510C

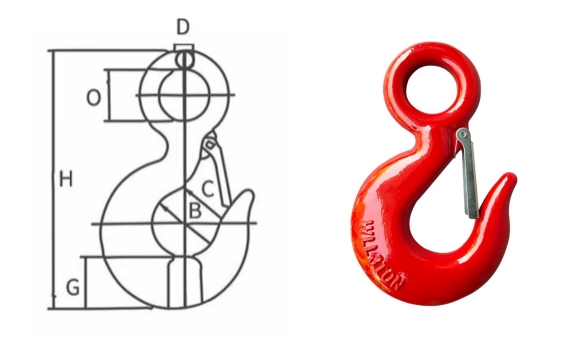

320C Eye Hoist Hook with Latch
W.L.L. | B.L. | DIMENSIONS(mm) | WEIGHT | |||||
(Ton) | (Ton) | D | O | G | H | B | C | (kg) |
0.5 | 2 | 9 | 16 | 20 | 98 | 27 | 23 | 0.18 |
0.75 | 3 | 9.5 | 19 | 20 | 102 | 31 | 24 | 0.25 |
1 | 4 | 10.5 | 23 | 22 | 118 | 35 | 25 | 0.41 |
1.5 | 6 | 12 | 28.4 | 25 | 130 | 38 | 27 | 0.59 |
2 | 8 | 15 | 31.8 | 29 | 148 | 42 | 31 | 0.93 |
3 | 12 | 17.5 | 39.6 | 37 | 184 | 50 | 38 | 1.77 |
5 | 20 | 23 | 50.8 | 46 | 233 | 64 | 43 | 3.25 |
7.5 | 30 | 28 | 61.9 | 57 | 276 | 76 | 57 | 5.9 |
10 | 40 | 33 | 73 | 66 | 322 | 82 | 64 | 10.15 |
