Eye Type Wide Mouth Lifting Hook With Latch

The Wide Mouth Hook is forged from high quality alloy steel. WLL, product grade and brand can be marked on the lifting hook.
WLL:
5000 lb
7000 lb
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120526

Eye Type Wide Mouth Lifting Hook With Latch

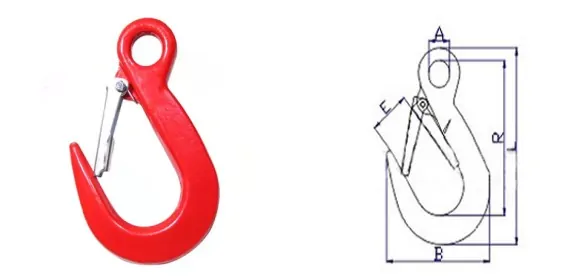

Wide Mouth Hook-drawing


W.L.L. DIMENSIONS(mm) WEIGHT
(lb) A B E L R (kg)
5000 22 104.5 37 160.6 130 0.44
7000 21 105 40 167.5 132 0.72


Product Name
Eye Type Wide Mouth Lifting Hook With Latch
Grade
G80
Material
Alloy Steel
Process
Forged
Finish
Powder coating
