G80 Clevis Grab Hook for Lifting

G80 Clevis Grab Hook is forged with high quality alloy steel, it is used to shorten chain sling, each hook is maked with grade, WLL, size and brand.
WLL:
1.12 Ton
2 Ton
3.15 Ton
5.3 Ton
8 Ton
12.5 Ton
15 Ton
21.2 Ton
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120517

G80 Clevis Grab Hook-Clevis Type Chain Shortner

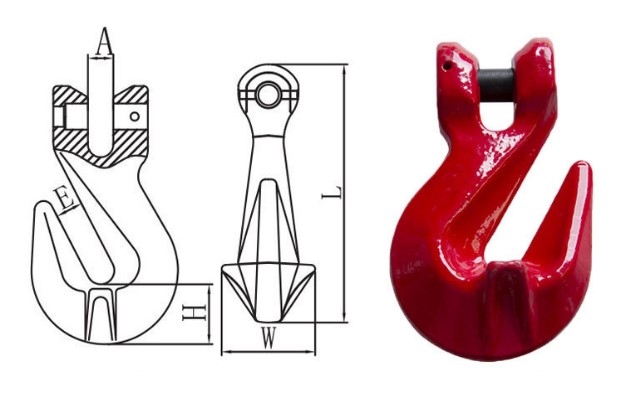

clevis grab hook-drawing



W.L.L. B.L. DIMENSIONS (mm) WEIGHT
(Ton) (Ton) E±1 A±0.5 H±1 W±1 L±2 (kg)
1.12 4.48 8.3 8 17.7 26.7 75 0.25
2 8 11 9.5 18.5 33.5 89 0.32
3.15 12.6 13 12.5 29 46 126 0.73
5.3 21.2 16.5 15 42.7 57.5 163.5 1.6
8 32 19 18.5 45 74 183.5 2.8
12.5 50 24 23 56 74 219 5
15 60 27 27 68.5 90 254 6.3
21.2 84.8 30 30 77 102 309 14.5


Product Name
G80 Clevis Grab Hook
Material
Alloy steel
Grade
G80
Safety Factor
4:1
Finish
Powder coating
