G70 Alloy Steel Forged J Type Tow Hook with Ellipse Hole

The J type tow hook is forged with high quality alloy steel, it is used for G70 tow chains.
Size:
8"
15"
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120532

Forged J Type Tow Hook

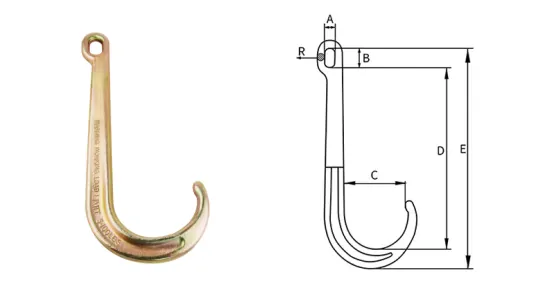

J hooks drawing


SIZE W.L.L DIMENSIONS (mm) WEIGHT
(inch) (lbs) A B C D E R (kg)
8 5400 19.5 32 88.2 130 205 12 1.5
15 5400 19.5 32 103.7 286 361 12 2
Product Name
J Type Tow Hook
Material
Alloy Steel
Finish
Yellow Zinc
W.L.L.
5400lbs
Process
Forged
Size
8"
15"
