Eye Type Large Opening Lifting Hook

The large opening hook is forged from high quality alloy steel. WLL, product grade and brand can be marked on the lifting hook.
WLL:
2T
3.2T
3.8T
5.4T
8T
12.5T
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120511

Eye Type Large Opening Lifting Hook

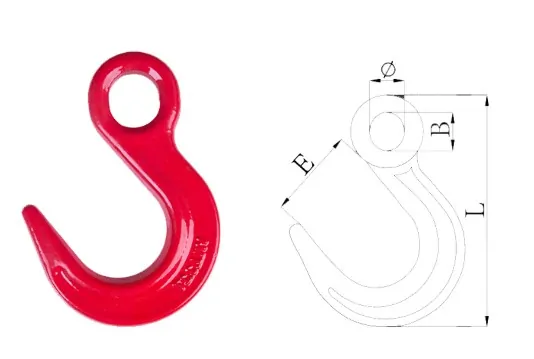

Large Opening Hook-DRAWING


W.L.L. B.L. DIMENSIONS（MM） WEIGHT
(T) (T) B E L φ (kg)
2 8 28 56 155 24 0.78
3.2 12.8 36 58 170 30 0.99
3.8 15.2 36 76 196 30 1.3
5.4 21.6 44 84 245 39 2.55
8 32 53 93 284 48 4.85
12.5 50 65 105 330 61 6.65


large-opening-hook26409481754


Contact Us

Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

Product Name
Eye Type Large Opening Lifting Hook
Grade
G80
Material
Alloy Steel
Process
Forging, Heat Treatment
Safety Factor
4:1
