G80 Clevis Self Locking Hook

The clevis self-locking hook is widely used for factory lifting, port transportation, construction engineering, lifting equipment.
WLL:
Availability:
Quantity:
  • ZS1205
  • Gostern Rigging
  • ZS120521

G80 Clevis Self Locking Hook

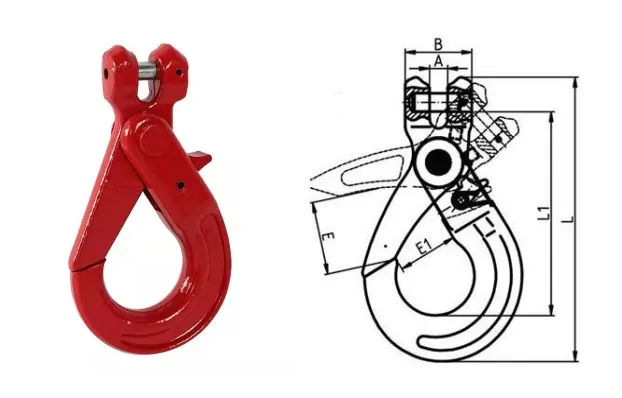

CLEVIS SELF LOCKING HOOK-drawing


W.L.L B.L. DIMENSIONS(mm) WEIGHT
(Ton) (Ton) A B E E1 L1 L (kg)
1.12 4.48 8 32 35 28 96 131 0.44
2 8 9.5 38.5 40 35.8 119.3 161.8 0.8
3.15 12.6 12.5 46 50 45 142 195 1.38
5.3 21.2 15 59 60 52.5 179 249 2.81
8 32 18.5 77 65 63.3 224.8 310 6
12.5 50 25 77 80 86 238.3 335 7.25
15 60 25 97.5 83 76 277 392 12.8
21.2 84.8 30 118 106 96 321 450 21.8
31.5 126 35 150 140 135 416 589.6 49.6


Product Name
Clevis Self Locking Hook
Grade
G80
Material
Alloy Steel
Process
Forging, Heat treatment
Safety Factor
4:1
