G80 Clevis Slip Hook with Latch

The clevis slip hook is forged with high quality alloy steel, it is solid structure, rust resistance, corrosion resistance and durable.

WLL:	1.12 Ton 2 Ton 3.15 Ton 5.3 Ton 8 Ton 12.5 Ton 15 Ton 21.2 Ton 31.5 Ton
Availability:

Quantity:



Inquire Add to Basket

Model:
ZS1205
Brand:
Gostern Rigging
Code:
ZS120520

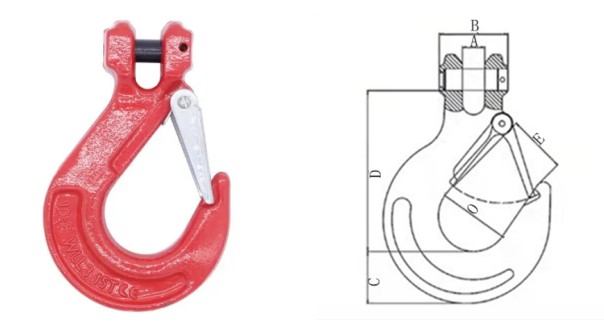

G80 Clevis Slip Hook with Latch

W.L.L.	B.L.	DIMENSIONS(mm)						WEIGHT
(Ton)	(Ton)	A	B	C	D	E	O	(kg)
1.12	4.48	8.5	32	20	76	25	35	0.28
2	8	10.5	37	25	86.4	28	37	0.5
3.15	12.6	12.5	48	34.5	102	38	45	1.1
5.3	21.2	16.5	57	41	124	46	55	1.8
8	32	21.5	70	54	143	54	59.4	4
12.5	50	25	77	58	179.4	64	79	5.4
15	60	26.5	91	62	212.7	71	100.9	9
21.2	84.8	29.5	117	75	250	84	115	14.5
31.5	126	34.5	150	88	317	105	140	27
