322A Eye Swivel Lifting Hook With Latch

The Eye Swivel Hook With Latch is forged with high quality alloy steel and widely used for factory lifting, port transportation, construction engineering, lifting equipment.
WLL:
1 Ton
1.5 Ton
2 Ton
3 Ton
5 Ton
7 Ton
11 Ton
15 Ton
22 Ton
30 Ton
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205

  • Gostern Rigging

  • ZS120522

322A Eye Swivel Lifting Hook With Latch

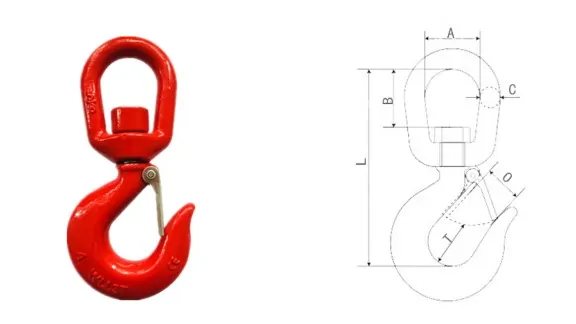

Swivel Hook With Latch-drawing



W.L.L. B.L. DIMENSIONS (mm) WEIGHT
(Ton) (Ton) A B C O T L (kg)
1 4 31.8 23.8 9.5 22.3 20.5 113.5 0.4
1.5 6 38.1 33 12.7 24.6 20.8 136.5 0.6
2 8 44.5 41.3 15.9 25.4 21.3 152.8 1.1
3 12 44.5 39.7 15.9 28.4 26 161.9 1.3
5 20 50.8 44.5 19.1 34 35 188.1 2.3
7 28 63.5 58.7 25.4 42.9 45.1 243.7 4.85
11 44 69.9 60.3 28.6 52.2 53.8 282.6 7.4
15 60 79.4 71.4 31.8 57 63.5 303.2 10.6
22 88 105 114 40 81 72 431 21.4
30 120 105 105 40 82.5 75.5 472 32


Product Name
322A Eye Swivel Lifting Hook With Latch
Grade
G80
Material
Alloy Steel
Process
Forging, Heat treatment
Safety Factor
4:1
Finish
Powder coating
