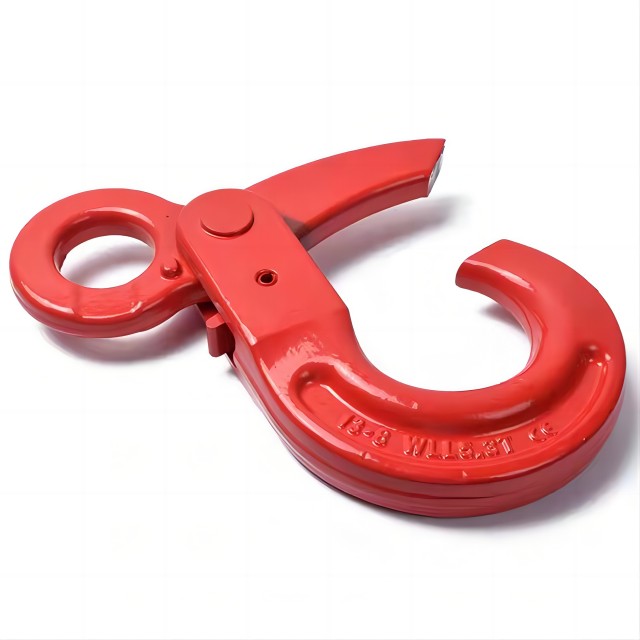

G80 Eye Type Self Locking Safety Hook

The G80 Eye Type Self Locking Safety Hook is widely used for factory lifting, port transportation, construction engineering, lifting equipment.
WLL:
1.12T
2T
3.15T
5.3T
8T
12.5T
15T
21.2T
31.5T
Availability:
Quantity:
Inquire Add to Basket

  • ZS1205
  • Gostern Rigging
  • ZS120524

G80 Eye Type Self Locking Safety Hook

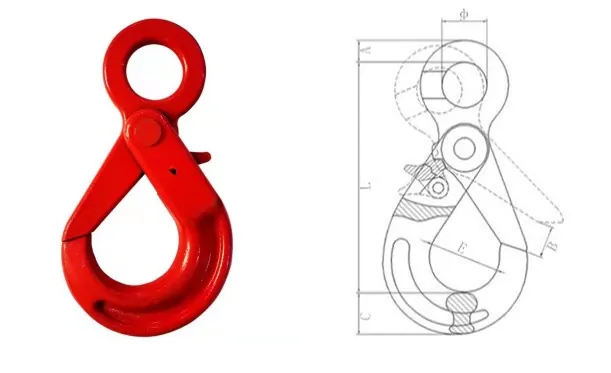

Eye Type Self Locking Safety Hook-DRAWING



W.L.L. B.L. DIMENSIONS (mm) WEIGHT
(Ton) (Ton) A B Φ C E L (kg)
1.12 4.48 10.5 29 34 22 20 100.5 0.50
2 8 12 34 46 25 24 136 0.88
3.15 12.6 15 44 52 32 29 171 1.58
5.3 21.2 19.5 52 65.5 40.2 40.2 208.5 3.00
8 32 21.5 60 82 56 51 257.5 5.90
12.5 50 26.75 83 100 64.5 55 275 7.00
15 60 30 88 98 70 66.4 320 12.30
21.2 84.8 34 95.5 110 80 75.6 363 20.00
31.5 126 45 160 166 105 97 472 44.00
Product Name
Eye Type Self Locking Hook
Grade
G80
Material
Alloy Steel
Process
Forging, Heat treatment
Safety Factor
4:1
